在生產者通過channel的basicPublish方法發布消息時，通常有幾個參數需要設置，為此我們有必要了解清楚這些參數代表的具體含義及其作用，查看Channel接口，會發現存在3個重載的basicPublish方法
void basicPublish(String exchange, String routingKey, BasicProperties props, byte[] body) throws IOException;
void basicPublish(String exchange, String routingKey, boolean mandatory, BasicProperties props, byte[] body)
throws IOException;
void basicPublish(String exchange, String routingKey, boolean mandatory, boolean immediate, BasicProperties props, byte[] body)
throws IOException; 他們共有的參數分別是：當mandatory標志位設置為true時，如果exchange根據本身類型和消息routingKey沒法找到1個適合的queue存儲消息，那末broker會調用basic.return方法將消息返還給生產者;當mandatory設置為false時，出現上述情況broker會直接將消息拋棄;通俗的講，mandatory標志告知broker代理服務器最少將消息route到1個隊列中，否則就將消息return給發送者;
下面我們通過幾個實例測試下mandatory標志的作用：
測試1：設置mandatory標志，且exchange未綁定隊列
public class ProducerTest {
public static void main(String[] args) {
String exchangeName = "confirmExchange";
String queueName = "confirmQueue";
String routingKey = "confirmRoutingKey";
String bindingKey = "confirmBindingKey";
int count = 3;
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("172.16.151.74");
factory.setUsername("test");
factory.setPassword("test");
factory.setPort(5672);
//創建生產者
Sender producer = new Sender(factory, count, exchangeName, routingKey);
producer.run();
}
}
class Sender
{
private ConnectionFactory factory;
private int count;
private String exchangeName;
private String routingKey;
public Sender(ConnectionFactory factory,int count,String exchangeName,String routingKey) {
this.factory = factory;
this.count = count;
this.exchangeName = exchangeName;
this.routingKey = routingKey;
}
public void run() {
try {
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
//創建exchange
channel.exchangeDeclare(exchangeName, "direct", true, false, null);
//發送持久化消息
for(int i = 0;i < count;i++)
{
//第1個參數是exchangeName(默許情況下代理服務器端是存在1個""名字的exchange的,因此如果不創建exchange的話我們可以直接將該參數設置成"",如果創建了exchange的話我們需要將該參數設置成創建的exchange的名字),第2個參數是路由鍵
channel.basicPublish(exchangeName, routingKey, true, MessageProperties.PERSISTENT_BASIC, ("第"+(i+1)+"條消息").getBytes());
}
} catch (Exception e) {
e.printStackTrace();
}
}
}
第45行我們將basicPublish的第3個參數mandatory設置成了true，表示開啟了mandatory標志，但我們沒有為當前exchange綁定任何隊列；

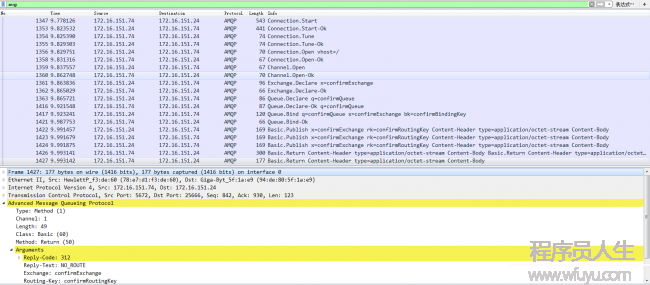

通過wireshark抓包看到下面輸出：
可以看到最后履行了basic.return方法，將發布者發出的消息返還給了發布者，查看協議的Arguments參數部份可以看到，Reply-Text字段值為：NO_ROUTE，表示消息并沒有路由到適合的隊列中；
那末我們該怎樣獲得到沒有被正確路由到適合隊列的消息呢？這時候候可以通過為channel信道設置ReturnListener監聽器來實現，具體實現代碼見下：
public class ProducerTest {
public static void main(String[] args) {
String exchangeName = "confirmExchange";
String queueName = "confirmQueue";
String routingKey = "confirmRoutingKey";
String bindingKey = "confirmBindingKey";
int count = 3;
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("172.16.151.74");
factory.setUsername("test");
factory.setPassword("test");
factory.setPort(5672);
//創建生產者
Sender producer = new Sender(factory, count, exchangeName, routingKey);
producer.run();
}
}
class Sender
{
private ConnectionFactory factory;
private int count;
private String exchangeName;
private String routingKey;
public Sender(ConnectionFactory factory,int count,String exchangeName,String routingKey) {
this.factory = factory;
this.count = count;
this.exchangeName = exchangeName;
this.routingKey = routingKey;
}
public void run() {
try {
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
//創建exchange
channel.exchangeDeclare(exchangeName, "direct", true, false, null);
//發送持久化消息
for(int i = 0;i < count;i++)
{
//第1個參數是exchangeName(默許情況下代理服務器端是存在1個""名字的exchange的,
//因此如果不創建exchange的話我們可以直接將該參數設置成"",如果創建了exchange的話
//我們需要將該參數設置成創建的exchange的名字),第2個參數是路由鍵
channel.basicPublish(exchangeName, routingKey, true, MessageProperties.PERSISTENT_BASIC, ("第"+(i+1)+"條消息").getBytes());
}
channel.addReturnListener(new ReturnListener() {
@Override
public void handleReturn(int arg0, String arg1, String arg2, String arg3, BasicProperties arg4, byte[] arg5)
throws IOException {
//此處便是履行Basic.Return以后回調的地方
String message = new String(arg5);
System.out.println("Basic.Return返回的結果: "+message);
}
});
} catch (Exception e) {
e.printStackTrace();
}
}
} 在設置了ReturnListener監聽器以后，broker(代理服務器)發出basic.return方法以后，就會回調第52行的handleReturn方法，在這個方法里面我們就能夠進行消息的重新發布操作啦；
測試2：設置mandatory標志，且為exchange綁定隊列(路由鍵和綁定鍵1致)
public class ProducerTest {
public static void main(String[] args) {
String exchangeName = "confirmExchange";
String queueName = "confirmQueue";
String routingKey = "confirmRoutingKey";
String bindingKey = "confirmRoutingKey";
//String bindingKey = "confirmBindingKey";
int count = 3;
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("172.16.151.74");
factory.setUsername("test");
factory.setPassword("test");
factory.setPort(5672);
//創建生產者
Sender producer = new Sender(factory, count, exchangeName, queueName,routingKey,bindingKey);
producer.run();
}
}
class Sender
{
private ConnectionFactory factory;
private int count;
private String exchangeName;
private String queueName;
private String routingKey;
private String bindingKey;
public Sender(ConnectionFactory factory,int count,String exchangeName,String queueName,String routingKey,String bindingKey) {
this.factory = factory;
this.count = count;
this.exchangeName = exchangeName;
this.queueName = queueName;
this.routingKey = routingKey;
this.bindingKey = bindingKey;
}
public void run() {
try {
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
//創建exchange
channel.exchangeDeclare(exchangeName, "direct", true, false, null);
//創建隊列
channel.queueDeclare(queueName, true, false, false, null);
//綁定exchange和queue
channel.queueBind(queueName, exchangeName, bindingKey);
//發送持久化消息
for(int i = 0;i < count;i++)
{
//第1個參數是exchangeName(默許情況下代理服務器端是存在1個""名字的exchange的,
//因此如果不創建exchange的話我們可以直接將該參數設置成"",如果創建了exchange的話
//我們需要將該參數設置成創建的exchange的名字),第2個參數是路由鍵
channel.basicPublish(exchangeName, routingKey, true, MessageProperties.PERSISTENT_BASIC, ("第"+(i+1)+"條消息").getBytes());
}
channel.addReturnListener(new ReturnListener() {
@Override
public void handleReturn(int arg0, String arg1, String arg2, String arg3, BasicProperties arg4, byte[] arg5)
throws IOException {
//此處便是履行Basic.Return以后回調的地方
String message = new String(arg5);
System.out.println("Basic.Return返回的結果: "+message);
}
});
} catch (Exception e) {
e.printStackTrace();
}
}
}
通過抓包發現其實不會有basic.return方法被調用，查看RabbitMQ管理界面發現消息已到達了隊列；
測試3：設置mandatory標志，且exchange綁定隊列(路由鍵和綁定鍵不1致)
代碼就是把測試2中第6行注釋，第7行注釋打開，注意到此時的routingKey和bindingKey是不1致的，此時我們運行程序，同時抓包得到下面截圖：
注意1點，我們發送了3條消息，那末相應的應當履行3次basic.return，其中第1次和第2次basic.return顯示在1行上了，第3次是單唯一行，不要誤認為只履行了兩次，從協議的具體返回內容里我們一樣看到了Reply-Text字段值是NO_ROUTE，這類現象在測試1中已見過了；
到此，我們明白了mandatory標志的作用：在消息沒有被路由到適合隊列情況下會將消息返還給消息發布者，同時我們測試了哪些情況下消息不會到達適合的隊列，測試1演示的是創建了exchange但是沒有為他綁定隊列致使的消息未到達適合隊列，測試3演示的是創建了exchange同時創建了queue，但是在將二者綁定的時候，使用的bindingKey和消息發布者使用的rountingKey不1致致使的消息未到達適合隊列；
參考資料：
RabbitMQ(2) AMQP協議mandatory和immediate標志位區分
RabbitMQ之mandatory
