RxJava Observer與Subscriber的關系

來源：程序員人生發布時間：2016-06-21 08:56:32 閱讀次數：2526次

在說Observer與Subscriber的關系之前，我們下重溫下相干概念。

RxJava 的視察者模式

RxJava 有4個基本概念：Observable (可視察者，即被視察者)、 Observer (視察者)、 subscribe (定閱)、事件。Observable 和 Observer 通過 subscribe() 方法實現定閱關系，從而 Observable 可以在需要的時候發失事件來通知 Observer。

與傳統視察者模式不同， RxJava 的事件回調方法除普通事件 onNext() （相當于 onClick() / onEvent()）以外，還定義了兩個特殊的事件：onCompleted() 和 onError()。

onCompleted(): 事件隊列完結。RxJava 不但把每一個事件單獨處理，還會把它們看作1個隊列。RxJava 規定，當不會再有新的 onNext() 發出時，需要觸發 onCompleted() 方法作為標志。
onError(): 事件隊列異常。在事件處理進程中出異常時，onError() 會被觸發，同時隊列自動終止，不允許再有事件發出。
在1個正確運行的事件序列中, onCompleted() 和 onError() 有且只有1個，并且是事件序列中的最后1個。需要注意的是，onCompleted() 和 onError() 2者也是互斥的，即在隊列中調用了其中1個，就不應當再調用另外一個。

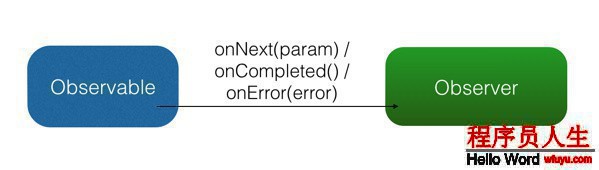

RxJava 的視察者模式大致以下圖：
這里寫圖片描述

RxJava的實現

基于以上的概念， RxJava 的基本實現主要有3點：

1) 創建 Observer

Observer 即視察者，它決定事件觸發的時候將有怎樣的行動。 RxJava 中的 Observer 接口的實現方式：

Observer<Apps> observer = new Observer<Apps>() {
        @Override
        public void onCompleted() {
            listView.onRefreshComplete();
        }

        @Override
        public void onError(Throwable e) {
            listView.onRefreshComplete();
        }

        @Override
        public void onNext(Apps appsList) {
            listView.onRefreshComplete();
            appLists.addAll(appsList.apps);
            adapter.notifyDataSetChanged();
        }
    };

除 Observer 接口以外，RxJava 還內置了1個實現了 Observer 的抽象類：Subscriber。 Subscriber 對 Observer 接口進行了1些擴大，但他們的基本使用方式是完全1樣的：

Subscriber subscriber = new Subscriber<Apps>() {
        @Override
        public void onCompleted() {
            listView.onRefreshComplete();
        }

        @Override
        public void onError(Throwable e) {
            listView.onRefreshComplete();
        }

        @Override
        public void onNext(Apps appsList) {
            listView.onRefreshComplete();
            appLists.addAll(appsList.apps);
            adapter.notifyDataSetChanged();
        }
    };

不但基本使用方式1樣，實質上，在 RxJava 的 subscribe 進程中，Observer 也總是會先被轉換成1個 Subscriber 再使用。所以如果你只想使用基本功能，選擇 Observer 和 Subscriber 是完全1樣的。

Subscriber是Observer的實現類

public abstract class Subscriber<T> implements Observer<T>, Subscription

而onStart()方法是Subscriber中的1個方法。它也屬于回調級別的。

subscribe(Subscriber)方法中有以下代碼：

// if not already wrapped   包裹1層
        if (!(subscriber instanceof SafeSubscriber)) {
            // assign to `observer` so we return the protected version
            subscriber = new SafeSubscriber<T>(subscriber);
        }

他將subscriber包裝起來，這個具體甚么意思有待研究，繼續下看。

hook.onSubscribeStart(observable, observable.onSubscribe).call(subscriber);
   return hook.onSubscribeReturn(subscriber);

hook是甚么呢？

private static final RxJavaObservableExecutionHook hook = RxJavaPlugins.getInstance().getObservableExecutionHook();

RxJavaObservableExecutionHook.java源碼：

/**
 * Copyright 2014 Netflix, Inc.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package rx.plugins;

import rx.Observable;
import rx.Observable.OnSubscribe;
import rx.Observable.Operator;
import rx.Subscriber;
import rx.Subscription;
import rx.functions.Func1;

/**
 * Abstract ExecutionHook with invocations at different lifecycle points of {@link Observable} execution with a
 * default no-op implementation.
 * <p>
 * See {@link RxJavaPlugins} or the RxJava GitHub Wiki for information on configuring plugins:
 * <a href="https://github.com/ReactiveX/RxJava/wiki/Plugins">https://github.com/ReactiveX/RxJava/wiki/Plugins</a>.
 * <p>
 * <b>Note on thread-safety and performance:</b>
 * <p>
 * A single implementation of this class will be used globally so methods on this class will be invoked
 * concurrently from multiple threads so all functionality must be thread-safe.
 * <p>
 * Methods are also invoked synchronously and will add to execution time of the observable so all behavior
 * should be fast. If anything time-consuming is to be done it should be spawned asynchronously onto separate
 * worker threads.
 *
 */
public abstract class RxJavaObservableExecutionHook {
    /**
     * Invoked during the construction by {@link Observable#create(OnSubscribe)}
     * <p>
     * This can be used to decorate or replace the <code>onSubscribe</code> function or just perform extra
     * logging, metrics and other such things and pass-thru the function.
     *
     * @param f
     *            original {@link OnSubscribe}<{@code T}> to be executed
     * @return {@link OnSubscribe}<{@code T}> function that can be modified, decorated, replaced or just
     *         returned as a pass-thru
     */
    public <T> OnSubscribe<T> onCreate(OnSubscribe<T> f) {
        return f;
    }

    /**
     * Invoked before {@link Observable#subscribe(rx.Subscriber)} is about to be executed.
     * <p>
     * This can be used to decorate or replace the <code>onSubscribe</code> function or just perform extra
     * logging, metrics and other such things and pass-thru the function.
     *
     * @param onSubscribe
     *            original {@link OnSubscribe}<{@code T}> to be executed
     * @return {@link OnSubscribe}<{@code T}> function that can be modified, decorated, replaced or just
     *         returned as a pass-thru
     */
    public <T> OnSubscribe<T> onSubscribeStart(Observable<? extends T> observableInstance, final OnSubscribe<T> onSubscribe) {
        // pass-thru by default
        return onSubscribe;
    }

    /**
     * Invoked after successful execution of {@link Observable#subscribe(rx.Subscriber)} with returned
     * {@link Subscription}.
     * <p>
     * This can be used to decorate or replace the {@link Subscription} instance or just perform extra logging,
     * metrics and other such things and pass-thru the subscription.
     *
     * @param subscription
     *            original {@link Subscription}
     * @return {@link Subscription} subscription that can be modified, decorated, replaced or just returned as a
     *         pass-thru
     */
    public <T> Subscription onSubscribeReturn(Subscription subscription) {
        // pass-thru by default
        return subscription;
    }

    /**
     * Invoked after failed execution of {@link Observable#subscribe(Subscriber)} with thrown Throwable.
     * <p>
     * This is <em>not</em> errors emitted via {@link Subscriber#onError(Throwable)} but exceptions thrown when
     * attempting to subscribe to a {@link Func1}<{@link Subscriber}{@code <T>}, {@link Subscription}>.
     *
     * @param e
     *            Throwable thrown by {@link Observable#subscribe(Subscriber)}
     * @return Throwable that can be decorated, replaced or just returned as a pass-thru
     */
    public <T> Throwable onSubscribeError(Throwable e) {
        // pass-thru by default
        return e;
    }

    /**
     * Invoked just as the operator functions is called to bind two operations together into a new
     * {@link Observable} and the return value is used as the lifted function
     * <p>
     * This can be used to decorate or replace the {@link Operator} instance or just perform extra
     * logging, metrics and other such things and pass-thru the onSubscribe.
     *
     * @param lift
     *            original {@link Operator}{@code <R, T>}
     * @return {@link Operator}{@code <R, T>} function that can be modified, decorated, replaced or just
     *         returned as a pass-thru
     */
    public <T, R> Operator<? extends R, ? super T> onLift(final Operator<? extends R, ? super T> lift) {
        return lift;
    }
}

RxJavaObservableExecutionHook類的作用很特殊，仿佛沒有甚么太大的作用，傳進去甚么（類型）參數，返回甚么（類型）參數。

以下代碼所示：

public <T> OnSubscribe<T> onCreate(OnSubscribe<T> f) {
        return f;
    }

public <T> OnSubscribe<T> onSubscribeStart(Observable<? extends T> observableInstance, final OnSubscribe<T> onSubscribe) {
        // pass-thru by default
        return onSubscribe;
    }

至于最后關鍵的返回結果：

public <T> Subscription onSubscribeReturn(Subscription subscription) {
        // pass-thru by default
        return subscription;
    }

說白了，就是返回定閱的Observer對象。

Observer與Subscriber的區分

它們的區分對使用者來講主要有兩點：

onStart(): 這是 Subscriber 增加的方法。它會在 subscribe 剛開始，而事件還未發送之前被調用，可以用于做1些準備工作，例如數據的清零或重置。這是1個可選方法，默許情況下它的實現為空。需要注意的是，如果對準備工作的線程有要求（例如彈出1個顯示進度的對話框，這必須在主線程履行）， onStart() 就不適用了，由于它總是在 subscribe 所產生的線程被調用，而不能指定線程。要在指定的線程來做準備工作，可使用 doOnSubscribe() 方法，具體可以在后面的文中看到。

unsubscribe(): 這是 Subscriber 所實現的另外一個接口 Subscription 的方法，用于取消定閱。在這個方法被調用后，Subscriber 將不再接收事件。1般在這個方法調用前，可使用 isUnsubscribed() 先判斷1下狀態。 unsubscribe() 這個方法很重要，由于在 subscribe() 以后， Observable 會持有 Subscriber 的援用，這個援用如果不能及時被釋放，將有內存泄漏的風險。所以最好保持1個原則：要在不再使用的時候盡快在適合的地方（例如 onPause() onStop() 等方法中）調用 unsubscribe() 來消除援用關系，以免內存泄漏的產生。

2) 創建 Observable

Observable 即被視察者，它決定甚么時候觸發事件和觸發怎樣的事件。 RxJava 使用 create() 方法來創建1個 Observable ，并為它定義事件觸發規則：

Observable observable = Observable.create(new Observable.OnSubscribe<String>() {
    @Override
    public void call(Subscriber<? super String> subscriber) {
        subscriber.onNext("Hello");
        subscriber.onNext("John");
        subscriber.onCompleted();
    }
});

可以看到，這里傳入了1個 OnSubscribe 對象作為參數。OnSubscribe 會被存儲在返回的 Observable 對象中，它的作用相當于1個計劃表，當 Observable 被定閱的時候，OnSubscribe 的 call() 方法會自動被調用，事件序列就會依照設定順次觸發（對上面的代碼，就是視察者Subscriber 將會被調用兩次 onNext() 和1次 onCompleted()）。這樣，由被視察者調用了視察者的回調方法，就實現了由被視察者向視察者的事件傳遞，即視察者模式。

create() 是 RxJava 最基本的創造事件序列的操作符。基于這個操作符， RxJava 還提供了1些方法用來快捷創建事件隊列，詳見RxJava操作符系列文章：http://blog.csdn.net/jdsjlzx/article/details/51485861

3) Subscribe (定閱)
創建了 Observable 和 Observer 以后，再用 subscribe() 方法將它們聯結起來，整條鏈子就能夠工作了。代碼情勢很簡單：

observable.subscribe(observer);
// 或：
observable.subscribe(subscriber);

Observable.subscribe(Subscriber) 的內部實現是這樣的（僅核心代碼）：

public final Subscription subscribe(Subscriber<? super T> subscriber) {
        return Observable.subscribe(subscriber, this);
    }

    private static <T> Subscription subscribe(Subscriber<? super T> subscriber, Observable<T> observable) {
     // validate and proceed
        if (subscriber == null) {
            throw new IllegalArgumentException("observer can not be null");
        }
        if (observable.onSubscribe == null) {
            throw new IllegalStateException("onSubscribe function can not be null.");
            /*
             * the subscribe function can also be overridden but generally that's not the appropriate approach
             * so I won't mention that in the exception
             */
        }

        // new Subscriber so onStart it
        subscriber.onStart();

        /*
         * See https://github.com/ReactiveX/RxJava/issues/216 for discussion on "Guideline 6.4: Protect calls
         * to user code from within an Observer"
         */
        // if not already wrapped
        if (!(subscriber instanceof SafeSubscriber)) {
            // assign to `observer` so we return the protected version
            subscriber = new SafeSubscriber<T>(subscriber);
        }

        // The code below is exactly the same an unsafeSubscribe but not used because it would
        // add a significant depth to already huge call stacks.
        try {
            // allow the hook to intercept and/or decorate
            hook.onSubscribeStart(observable, observable.onSubscribe).call(subscriber);
            return hook.onSubscribeReturn(subscriber);
        } catch (Throwable e) {
            // special handling for certain Throwable/Error/Exception types
            Exceptions.throwIfFatal(e);
            // if an unhandled error occurs executing the onSubscribe we will propagate it
            try {
                subscriber.onError(hook.onSubscribeError(e));
            } catch (Throwable e2) {
                Exceptions.throwIfFatal(e2);
                // if this happens it means the onError itself failed (perhaps an invalid function implementation)
                // so we are unable to propagate the error correctly and will just throw
                RuntimeException r = new RuntimeException("Error occurred attempting to subscribe [" + e.getMessage() + "] and then again while trying to pass to onError.", e2);
                // TODO could the hook be the cause of the error in the on error handling.
                hook.onSubscribeError(r);
                // TODO why aren't we throwing the hook's return value.
                throw r;
            }
            return Subscriptions.unsubscribed();
        }
    }

可以看到，subscriber() 做了3件事：

調用 Subscriber.onStart() 。這個方法在前面已介紹過，是1個可選的準備方法。
調用 Observable 中的 OnSubscribe.call(Subscriber) 。在這里，事件發送的邏輯開始運行。從這也能夠看出，在 RxJava 中， Observable 其實不是在創建的時候就立即開始發送事件，而是在它被定閱的時候，即當 subscribe() 方法履行的時候。
將傳入的 Subscriber 作為 Subscription 返回。這是為了方便 unsubscribe().

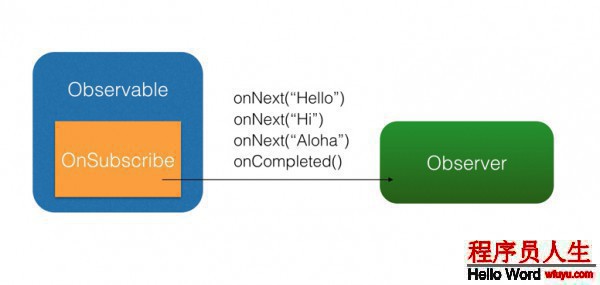

全部進程中對象間的關系以下圖：
這里寫圖片描述

除 subscribe(Observer) 和 subscribe(Subscriber) ，subscribe() 還支持不完全定義的回調，RxJava 會自動根據定義創建出 Subscriber 。情勢以下：

Action1<String> onNextAction = new Action1<String>() {
    // onNext()
    @Override
    public void call(String s) {
        Log.d(tag, s);
    }
};
Action1<Throwable> onErrorAction = new Action1<Throwable>() {
    // onError()
    @Override
    public void call(Throwable throwable) {
        // Error handling
    }
};
Action0 onCompletedAction = new Action0() {
    // onCompleted()
    @Override
    public void call() {
        Log.d(tag, "completed");
    }
};

// 自動創建 Subscriber ，并使用 onNextAction 來定義 onNext()
observable.subscribe(onNextAction);
// 自動創建 Subscriber ，并使用 onNextAction 和 onErrorAction 來定義 onNext() 和 onError()
observable.subscribe(onNextAction, onErrorAction);
// 自動創建 Subscriber ，并使用 onNextAction、 onErrorAction 和 onCompletedAction 來定義 onNext()、 onError() 和 onCompleted()
observable.subscribe(onNextAction, onErrorAction, onCompletedAction);

注：正如前面所提到的，Observer 和 Subscriber 具有相同的角色，而且 Observer 在 subscribe() 進程中終究會被轉換成 Subscriber 對象，因此，從某種程度上來講用 Subscriber 來代替 Observer ，這樣會更加嚴謹。

根據目前的經驗來看，Observer與Subscriber的主要區分在于onNext方法履行終了后是不是取消了定閱。

首先，我們分別定義mSubscriber 和 mObserver 。

以下代碼：

protected Subscriber<D> mSubscriber = new Subscriber<D>() {
        @Override
        public void onCompleted() {
            executeOnLoadFinish();
        }

        @Override
        public void onError(Throwable e) {
            TLog.error("onError " + e.toString());
            executeOnLoadDataError(null);
        }

        @Override
        public void onNext(D d) {
            TLog.log("onNext " );
            List<T> list = d;
            TLog.log("entity " + list.size());
            executeOnLoadDataSuccess(list);

            TLog.log("onSuccess totalPage " + totalPage);
        }
    };
    protected Observer<D> mObserver = new Observer<D>() {
        @Override
        public void onCompleted() {
            executeOnLoadFinish();
        }

        @Override
        public void onError(Throwable e) {
            TLog.error("onError " + e.toString());
            executeOnLoadDataError(null);
        }

        @Override
        public void onNext(D d) {
            TLog.log("onNext " );
            List<T> list = d;
            TLog.log("entity " + list.size());
            executeOnLoadDataSuccess(list);

            TLog.log("onSuccess totalPage " + totalPage);
        }
    };

observable.subscribeOn(Schedulers.io())
                .map(new Func1<Response<D>,D>() {

                    @Override
                    public D call(Response<D> response) {
                        if(response == null){
                            throw new ApiException(100);
                        }
                        totalPage = response.total;
                        return response.result;
                    }
                })
                .observeOn(AndroidSchedulers.mainThread())
                //.subscribe(mObserver);
                .subscribe(mSubscriber);

subscribe(mObserver)和subscribe(mSubscriber)履行結果就會有區分：

subscribe(mSubscriber)這類定閱方式在第2次要求數據時就不會履行了，緣由就是onCompleted后自動取消了定閱
（詳見文章：http://blog.csdn.net/jdsjlzx/article/details/51542003）；
subscribe(mObserver)則不出現此問題。

提示：個人以為subscribe(mObserver)這個方式更合適分頁加載。

請注意，如果你每次都使用subscribe(new Subscriber< T>() {｝）方式實現定閱，就不會出現上面的問題。

以下代碼：

private void toSubscribe(Observable<Response<D>> observable) {
        observable.subscribeOn(Schedulers.io())
                .map(new Func1<Response<D>,D>() {

                    @Override
                    public D call(Response<D> response) {
                        if(response == null){
                            throw new ApiException(100);
                        }
                        totalPage = response.total;
                        return response.result;
                    }
                })
                .observeOn(AndroidSchedulers.mainThread())
                .subscribe(new Subscriber<D>() {
                    @Override
                    public void onCompleted() {
                        executeOnLoadFinish();
                    }

                    @Override
                    public void onError(Throwable e) {
                        TLog.error("onError " + e.toString());
                        executeOnLoadDataError(null);
                    }

                    @Override
                    public void onNext(D d) {
                        TLog.log("onNext " );
                        List<T> list = d;
                        TLog.log("entity " + list.size());
                        executeOnLoadDataSuccess(list);

                        TLog.log("onSuccess totalPage " + totalPage);
                    }
                });
    }
