學習React-Native有1段時間了。今天就從源碼的角度來分析下React-Native底層的通訊機制。了解下底層是如何通訊的對開發也有所好處。
先大概講1下React-Native的通訊進程。RN主要的通訊在于java與js之間，平常我們寫的jsx代碼終究會調用到原生的View。上1篇博客我們也了解到了要新建1個原生模塊需要在java層和js層分別寫1個Module，那這彼此之間聯系是如何實現的呢？
RN總共分為3層，java層，C++層，js層。借用1幅圖來看下：
Java層：java層就是app原生代碼，它通過啟動C++層的javascript解析器javascriptCore來履行js代碼，從而構建原生UI等。java層依賴于眾多優秀開源庫，在圖片處理使用的是Fresco，網絡通訊使用的是okhttp，Json解析工具用jackson,動畫庫用NineOldAndroids等，在java層原生的功能均封裝為Module，如Toast和Log等。
C++層：c++層最主要是封裝了JavaScriptCore，它是1個全新的支持ES6的webKit。Bridge連接了java與js之間的通訊。解析js文件是通過JSCExectutor進行的。
Js層：主要處理事件分發及UI Layout，平常開發最經常使用的。通用jsx來寫業務代碼，通過flexbox來實現布局。不依賴DOM。由于react有 DOM diff這個算法，所以它的效力非常高。
在Java層與Js層的bridge分別存有相同1份模塊配置表，Java與Js相互通訊時，通過將里配置表中的moduleID，methodID轉換成json數據的情勢傳遞給到C++層，C++層傳送到js層，通過js層的的模塊配置表找到對應的方法進行履行，如果有callback，則回傳給java層。這里只是大概介紹，后面會有詳細講授。

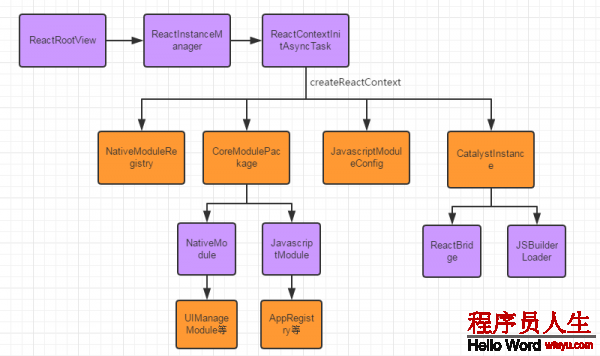

先看下java層的流程圖：
首先看MainActivity的
protected List<ReactPackage> getPackages() {
return Arrays.<ReactPackage>asList(
new MainReactPackage(),
new AppReactPackage()
);
}AppReactPackage是我們自定義的1個ReactPackage，也就是說如果自己定義了新組件，要在這里添加?？聪翿eactActivity，看它的onCreate方法：
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
if(this.getUseDeveloperSupport() && VERSION.SDK_INT >= 23 && !Settings.canDrawOverlays(this)) {
Intent mReactRootView = new Intent("android.settings.action.MANAGE_OVERLAY_PERMISSION");
this.startActivity(mReactRootView);
FLog.w("React", "Overlay permissions needs to be granted in order for react native apps to run in dev mode");
Toast.makeText(this, "Overlay permissions needs to be granted in order for react native apps to run in dev mode", 1).show();
}
this.mReactInstanceManager = this.createReactInstanceManager();
ReactRootView mReactRootView1 = this.createRootView();
mReactRootView1.startReactApplication(this.mReactInstanceManager, this.getMainComponentName(), this.getLaunchOptions());
this.setContentView(mReactRootView1);
}
主要完成3個功能，通過createReactInstanceManager創建ReactInstanceManager,它主要是用來創建及管理CatalyInstance的實例的上層接口。第2步是通過createRootView來創建ReactRootView。最后調用ReactRootView的startReactApplication來啟動利用，并把它當作rootview setContentView到界面上。重點看startReactApplication方法：
public void startReactApplication(ReactInstanceManager reactInstanceManager, String moduleName, @Nullable Bundle launchOptions) {
UiThreadUtil.assertOnUiThread();
Assertions.assertCondition(this.mReactInstanceManager == null, "This root view has already been attached to a catalyst instance manager");
this.mReactInstanceManager = reactInstanceManager;
this.mJSModuleName = moduleName;
this.mLaunchOptions = launchOptions;
if(!this.mReactInstanceManager.hasStartedCreatingInitialContext()) {
this.mReactInstanceManager.createReactContextInBackground();
}
if(this.mWasMeasured && this.mIsAttachedToWindow) {
this.mReactInstanceManager.attachMeasuredRootView(this);
this.mIsAttachedToInstance = true;
this.getViewTreeObserver().addOnGlobalLayoutListener(this.getKeyboardListener());
} else {
this.mAttachScheduled = true;
}
}mJSModuleName是與前端約定好所要啟動的JS Application Name。先看createReactContextInBackground方法，它位于ReactInstanceManager的實現類ReactInstanceManagerImpl中：
public void recreateReactContextInBackground() {
Assertions.assertCondition(this .mHasStartedCreatingInitialContext , "recreateReactContextInBackground should only be called after the initial createReactContextInBackground call.") ;
this. recreateReactContextInBackgroundInner() ;
}createReactContextInBackground終究調用到recreateReactContextInBackgroundInner：
private void recreateReactContextInBackgroundInner() {
UiThreadUtil.assertOnUiThread();
if( this.mUseDeveloperSupport && this.mJSMainModuleName != null) {
if (this.mDevSupportManager.hasUpToDateJSBundleInCache()) {
this .onJSBundleLoadedFromServer() ;
} else if(this .mJSBundleFile == null) {
this .mDevSupportManager.handleReloadJS() ;
} else {
this .mDevSupportManager.isPackagerRunning( new PackagerStatusCallback() {
public void onPackagerStatusFetched( final boolean packagerIsRunning) {
UiThreadUtil.runOnUiThread( new Runnable() {
public void run() {
if(packagerIsRunning) {
ReactInstanceManagerImpl.this .mDevSupportManager.handleReloadJS() ;
} else {
ReactInstanceManagerImpl.this .recreateReactContextInBackgroundFromBundleFile() ;
}
}
}) ;
}
});
}
} else {
this .recreateReactContextInBackgroundFromBundleFile() ;
}
}接著調用recreateReactContextInBackgroundFromBundleFile：
private void recreateReactContextInBackgroundFromBundleFile() {
this.recreateReactContextInBackground(new com.facebook.react.bridge.JSCJavaScriptExecutor.Factory(), JSBundleLoader.createFileLoader(this.mApplicationContext, this.mJSBundleFile));
}經過1系列的周轉，最后調用到了recreateReactContextInBackground：
private void recreateReactContextInBackground(com.facebook.react.bridge.JavaScriptExecutor.Factory jsExecutorFactory, JSBundleLoader jsBundleLoader) {
UiThreadUtil.assertOnUiThread();
ReactInstanceManagerImpl.ReactContextInitParams initParams = new ReactInstanceManagerImpl.ReactContextInitParams(jsExecutorFactory , jsBundleLoader);
if( this.mReactContextInitAsyncTask == null) {
this .mReactContextInitAsyncTask = new ReactInstanceManagerImpl.ReactContextInitAsyncTask( null);
this.mReactContextInitAsyncTask.execute( new ReactInstanceManagerImpl.ReactContextInitParams[]{initParams}) ;
} else {
this .mPendingReactContextInitParams = initParams ;
}
}上面代碼通過ReactContextInitAsyncTask這個AsyncTask來初始化ReactCotext。
private final class ReactContextInitAsyncTask extends AsyncTask<ReactInstanceManagerImpl.ReactContextInitParams, Void, ReactInstanceManagerImpl.Result<ReactApplicationContext>> {
private ReactContextInitAsyncTask() {
}
protected void onPreExecute() {
if(ReactInstanceManagerImpl.this.mCurrentReactContext != null) {
ReactInstanceManagerImpl.this.tearDownReactContext(ReactInstanceManagerImpl.this.mCurrentReactContext);
ReactInstanceManagerImpl.this.mCurrentReactContext = null;
}
}
protected ReactInstanceManagerImpl.Result<ReactApplicationContext> doInBackground(ReactInstanceManagerImpl.ReactContextInitParams... params) {
Assertions.assertCondition(params != null && params.length > 0 && params[0] != null);
try {
JavaScriptExecutor e = params[0].getJsExecutorFactory().create(ReactInstanceManagerImpl.this.mJSCConfig == null?new WritableNativeMap():ReactInstanceManagerImpl.this.mJSCConfig.getConfigMap());
return ReactInstanceManagerImpl.Result.of((Object)ReactInstanceManagerImpl.this.createReactContext(e, params[0].getJsBundleLoader()));
} catch (Exception var3) {
return ReactInstanceManagerImpl.Result.of(var3);
}
}
protected void onPostExecute(ReactInstanceManagerImpl.Result<ReactApplicationContext> result) {
try {
ReactInstanceManagerImpl.this.setupReactContext((ReactApplicationContext)result.get());
} catch (Exception var6) {
ReactInstanceManagerImpl.this.mDevSupportManager.handleException(var6);
} finally {
ReactInstanceManagerImpl.this.mReactContextInitAsyncTask = null;
}
if(ReactInstanceManagerImpl.this.mPendingReactContextInitParams != null) {
ReactInstanceManagerImpl.this.recreateReactContextInBackground(ReactInstanceManagerImpl.this.mPendingReactContextInitParams.getJsExecutorFactory(), ReactInstanceManagerImpl.this.mPendingReactContextInitParams.getJsBundleLoader());
ReactInstanceManagerImpl.this.mPendingReactContextInitParams = null;
}
}ReactContextInitAsyncTask為創建ReactContext的核心類，隨后，調用createReactContext進1步創建ReactContext。在創建完React Context后會調用setUpReactContext，將ReactRootView做為Root View傳遞給UIManagerModule，調用AppRegistry的runApplication去啟動Js Application等?？碿reateReactContext的代碼：
private ReactApplicationContext createReactContext(JavaScriptExecutor jsExecutor , JSBundleLoader jsBundleLoader) {
FLog.i("React" , "Creating react context.");
ReactMarker.logMarker( "CREATE_REACT_CONTEXT_START" );
this.mSourceUrl = jsBundleLoader.getSourceUrl() ;
Builder nativeRegistryBuilder = new Builder();
com.facebook.react.bridge.JavaScriptModulesConfig.Builder jsModulesBuilder = new com.facebook.react.bridge.JavaScriptModulesConfig.Builder() ;
ReactApplicationContext reactContext = new ReactApplicationContext( this.mApplicationContext);
if( this.mUseDeveloperSupport) {
reactContext.setNativeModuleCallExceptionHandler(this.mDevSupportManager) ;
}
ReactMarker.logMarker("PROCESS_PACKAGES_START" );
Systrace.beginSection( 0L, "createAndProcessCoreModulesPackage" );
try {
CoreModulesPackage nativeModuleRegistry = new CoreModulesPackage( this, this.mBackBtnHandler , this.mUIImplementationProvider);
this.processPackage(nativeModuleRegistry , reactContext, nativeRegistryBuilder, jsModulesBuilder) ;
} finally {
Systrace.endSection(0L );
}
Iterator nativeModuleRegistry2 = this .mPackages.iterator();
while(nativeModuleRegistry2.hasNext()) {
ReactPackage javaScriptModulesConfig = (ReactPackage)nativeModuleRegistry2.next();
Systrace.beginSection( 0L, "createAndProcessCustomReactPackage" );
try {
this .processPackage(javaScriptModulesConfig , reactContext, nativeRegistryBuilder, jsModulesBuilder) ;
} finally {
Systrace.endSection(0L) ;
}
}
ReactMarker.logMarker("PROCESS_PACKAGES_END" );
ReactMarker.logMarker( "BUILD_NATIVE_MODULE_REGISTRY_START" );
Systrace.beginSection( 0L, "buildNativeModuleRegistry" );
NativeModuleRegistry nativeModuleRegistry1 ;
try {
nativeModuleRegistry1 = nativeRegistryBuilder.build();
} finally {
Systrace.endSection(0L );
ReactMarker.logMarker( "BUILD_NATIVE_MODULE_REGISTRY_END" );
}
ReactMarker.logMarker("BUILD_JS_MODULE_CONFIG_START" );
Systrace.beginSection( 0L, "buildJSModuleConfig" );
JavaScriptModulesConfig javaScriptModulesConfig1 ;
try {
javaScriptModulesConfig1 = jsModulesBuilder.build();
} finally {
Systrace.endSection(0L );
ReactMarker.logMarker( "BUILD_JS_MODULE_CONFIG_END" );
}
Object exceptionHandler = this .mNativeModuleCallExceptionHandler != null?this .mNativeModuleCallExceptionHandler: this.mDevSupportManager;
com.facebook.react.bridge.CatalystInstanceImpl.Builder catalystInstanceBuilder = ( new com.facebook.react.bridge.CatalystInstanceImpl.Builder()).setReactQueueConfigurationSpec(ReactQueueConfigurationSpec.createDefault()).setJSExecutor(jsExecutor).setRegistry(nativeModuleRegistry1).setJSModulesConfig(javaScriptModulesConfig1).setJSBundleLoader(jsBundleLoader).setNativeModuleCallExceptionHandler((NativeModuleCallExceptionHandler)exceptionHandler) ;
ReactMarker.logMarker( "CREATE_CATALYST_INSTANCE_START" );
Systrace.beginSection( 0L, "createCatalystInstance" );
CatalystInstanceImpl catalystInstance ;
try {
catalystInstance = catalystInstanceBuilder.build();
} finally {
Systrace.endSection(0L );
ReactMarker.logMarker( "CREATE_CATALYST_INSTANCE_END" );
}
if (this.mBridgeIdleDebugListener != null) {
catalystInstance.addBridgeIdleDebugListener(this.mBridgeIdleDebugListener) ;
}
reactContext.initializeWithInstance(catalystInstance);
ReactMarker.logMarker( "RUN_JS_BUNDLE_START" );
Systrace.beginSection( 0L, "runJSBundle" );
try {
catalystInstance.runJSBundle();
} finally {
Systrace.endSection(0L );
ReactMarker.logMarker( "RUN_JS_BUNDLE_END" );
}
return reactContext;
}代碼很長，我們來分段分析。
com.facebook.react.bridge.JavaScriptModulesConfig.Builder jsModulesBuilder = new com.facebook.react.bridge.JavaScriptModulesConfig.Builder();創建JavaScriptModulesConfig。
ReactApplicationContext reactContext = new ReactApplicationContext(this.mApplicationContext);創建ReactApplicationContext上下文。
try {
CoreModulesPackage nativeModuleRegistry = new CoreModulesPackage(this, this.mBackBtnHandler, this.mUIImplementationProvider);
this.processPackage(nativeModuleRegistry, reactContext, nativeRegistryBuilder, jsModulesBuilder);
} finally {
Systrace.endSection(0L);
}
Iterator nativeModuleRegistry2 = this.mPackages.iterator();
while(nativeModuleRegistry2.hasNext()) {
ReactPackage javaScriptModulesConfig = (ReactPackage)nativeModuleRegistry2.next();
Systrace.beginSection(0L, "createAndProcessCustomReactPackage");
try {
this.processPackage(javaScriptModulesConfig, reactContext, nativeRegistryBuilder, jsModulesBuilder);
} finally {
Systrace.endSection(0L);
}
}創建ReactPackage。ReactPackage主要通過createNativeModules、createJSModules和createViewManagers等API去創建本地模塊，JS模塊及視圖組件等。ReactPackage分為framework的CoreModulesPackage和業務方可選的基礎MainReactPackage，CoreModulesPackage封裝了大部份通訊，調試核心類，如UIManagerModule，這個負責控制Js層Dom到Native View的核心類；看下processPackage方法：
private void processPackage(ReactPackage reactPackage, ReactApplicationContext reactContext, Builder nativeRegistryBuilder, com.facebook.react.bridge.JavaScriptModulesConfig.Builder jsModulesBuilder) {
Iterator i$ = reactPackage.createNativeModules(reactContext).iterator();
while(i$.hasNext()) {
NativeModule jsModuleClass = (NativeModule)i$.next();
nativeRegistryBuilder.add(jsModuleClass);
}
i$ = reactPackage.createJSModules().iterator();
while(i$.hasNext()) {
Class jsModuleClass1 = (Class)i$.next();
jsModulesBuilder.add(jsModuleClass1);
}
}很簡單，拿到具體的native和JS的module把它們添加到對應的builder中。先是添加CoreModulesPackage中的module再添加我們自定義的module，先看CoreModulesPackage中的createNativeModules方法：
public List<NativeModule> createNativeModules(ReactApplicationContext catalystApplicationContext) {
Systrace.beginSection(0L, "createUIManagerModule");
UIManagerModule uiManagerModule;
try {
List viewManagersList = this.mReactInstanceManager.createAllViewManagers(catalystApplicationContext);
uiManagerModule = new UIManagerModule(catalystApplicationContext, viewManagersList, this.mUIImplementationProvider.createUIImplementation(catalystApplicationContext, viewManagersList));
} finally {
Systrace.endSection(0L);
}
return Arrays.asList(new NativeModule[]{new AnimationsDebugModule(catalystApplicationContext, this.mReactInstanceManager.getDevSupportManager().getDevSettings()), new AndroidInfoModule(), new DeviceEventManagerModule(catalystApplicationContext, this.mHardwareBackBtnHandler), new ExceptionsManagerModule(this.mReactInstanceManager.getDevSupportManager()), new Timing(catalystApplicationContext), new SourceCodeModule(this.mReactInstanceManager.getSourceUrl(), this.mReactInstanceManager.getDevSupportManager().getSourceMapUrl()), uiManagerModule, new DebugComponentOwnershipModule(catalystApplicationContext)});
}就是將UIManagerModule、AnimationsDebugModule等裝到build中。
接著添加我們自定義的組件，以自定義Log為例，需要以下內容嗎：
public class AppReactPackage implements ReactPackage{
@Override
public List<NativeModule> createNativeModules(ReactApplicationContext reactApplicationContext) {
List<NativeModule> modules=new ArrayList<>();
modules.add(new LogModule(reactApplicationContext));
return modules;
}
@Override
public List<Class<? extends JavaScriptModule>> createJSModules() {
return Collections.emptyList();
}
@Override
public List<ViewManager> createViewManagers(ReactApplicationContext reactApplicationContext) {
return Collections.emptyList();
}
}很簡單，裝到自定義的List中。
CatalystInstanceImpl catalystInstance;
try {
catalystInstance = catalystInstanceBuilder.build();
} finally {
Systrace.endSection(0L);
ReactMarker.logMarker("CREATE_CATALYST_INSTANCE_END");
}創建CatalystInstance。CatalystInstance其實不直接面向開發者，開發者通ReactInstanceManger間接操作CatalystInstance。CatalystInstance持有對ReactBridge的援用，主要通過ReactBridge這個JNI類去實現Java層與Js層的通訊，ReactBridge由CatalystInstance的Constructor創建。同時初始化的時候調用了ReactQueueConfigurationSpec.createDefault創建了ReactNative通訊的兩個線程 JsQueueThread&NativeModulesQueueThread；
在這里ReactBridge由CatalystInstance的Constructor創建。看下它的構造函數：
private CatalystInstanceImpl(ReactQueueConfigurationSpec ReactQueueConfigurationSpec, final JavaScriptExecutor jsExecutor, NativeModuleRegistry registry, final JavaScriptModulesConfig jsModulesConfig, JSBundleLoader jsBundleLoader, NativeModuleCallExceptionHandler nativeModuleCallExceptionHandler) {
this.mPendingJSCalls = new AtomicInteger(0);
this.mJsPendingCallsTitleForTrace = "pending_js_calls_instance" + sNextInstanceIdForTrace.getAndIncrement();
this.mDestroyed = false;
this.mJSToJavaCallsTeardownLock = new Object();
this.mJavaToJSCallsTeardownLock = new Object();
this.mInitialized = false;
FLog.d("React", "Initializing React Bridge.");
this.mReactQueueConfiguration = ReactQueueConfigurationImpl.create(ReactQueueConfigurationSpec, new CatalystInstanceImpl.NativeExceptionHandler(null));
this.mBridgeIdleListeners = new CopyOnWriteArrayList();
this.mJavaRegistry = registry;
this.mJSModuleRegistry = new JavaScriptModuleRegistry(this, jsModulesConfig);
this.mJSBundleLoader = jsBundleLoader;
this.mNativeModuleCallExceptionHandler = nativeModuleCallExceptionHandler;
this.mTraceListener = new CatalystInstanceImpl.JSProfilerTraceListener(null);
try {
this.mBridge = (ReactBridge)this.mReactQueueConfiguration.getJSQueueThread().callOnQueue(new Callable() {
public ReactBridge call() throws Exception {
Systrace.beginSection(0L, "initializeBridge");
ReactBridge var1;
try {
var1 = CatalystInstanceImpl.this.initializeBridge(jsExecutor, jsModulesConfig);
} finally {
Systrace.endSection(0L);
}
return var1;
}
}).get();
} catch (Exception var8) {
throw new RuntimeException("Failed to initialize bridge", var8);
}
}注意到這行代碼：
this.mJSModuleRegistry = new JavaScriptModuleRegistry(this, jsModulesConfig);這里通過jsModulesConfig（封裝了module）創建了JSModuleRegistry。好了js注冊表終究創建成功了。這里有兩個問題，native注冊表在哪創建呢，還有就是注冊表甚么時候傳給js層呢。先留著這兩個問題。
接下來看下initializeBridge方法：
private ReactBridge initializeBridge (JavaScriptExecutor jsExecutor, JavaScriptModulesConfig jsModulesConfig) {
this .mReactQueueConfiguration.getJSQueueThread().assertIsOnThread() ;
Assertions.assertCondition( this.mBridge == null, "initializeBridge should be called once" );
Systrace.beginSection( 0L, "ReactBridgeCtor" );
ReactBridge bridge ;
try {
bridge = new ReactBridge(jsExecutor, new CatalystInstanceImpl.NativeModulesReactCallback( null), this.mReactQueueConfiguration.getNativeModulesQueueThread()) ;
this.mMainExecutorToken = bridge.getMainExecutorToken() ;
} finally {
Systrace.endSection(0L );
}
Systrace.beginSection(0L , "setBatchedBridgeConfig");
try {
bridge.setGlobalVariable("__fbBatchedBridgeConfig" , this.buildModulesConfigJSONProperty( this.mJavaRegistry, jsModulesConfig));
bridge.setGlobalVariable( "__RCTProfileIsProfiling" , Systrace.isTracing( 0L)?"true" :"false") ;
} finally {
Systrace.endSection(0L );
}
this .mJavaRegistry.notifyReactBridgeInitialized(bridge) ;
return bridge ;
}ReactBridge將注冊表信息存入與前端互通的全局變量 __fbBatchedBridgeConfig 中，使得Js層與Java層存在一樣的模塊注冊表。bridge.setGlobalVariable是1個native函數。讓我們猜1下下它的功能，就是用jsModulesConfig這個參數在js層中生成模塊注冊表，先看1下參數 buildModulesConfigJSONProperty的代碼：
private String buildModulesConfigJSONProperty(NativeModuleRegistry nativeModuleRegistry, JavaScriptModulesConfig jsModulesConfig) {
StringWriter stringWriter = new StringWriter();
JsonWriter writer = new JsonWriter(stringWriter);
String ioe;
try {
writer.beginObject();
writer.name("remoteModuleConfig");
nativeModuleRegistry.writeModuleDescriptions(writer);
writer.name("localModulesConfig");
jsModulesConfig.writeModuleDescriptions(writer);
writer.endObject();
ioe = stringWriter.toString();
} catch (IOException var14) {
throw new RuntimeException("Unable to serialize JavaScript module declaration", var14);
} finally {
try {
writer.close();
} catch (IOException var13) {
;
}
}
return ioe;
}看到JsonWriter就知道是把NativeModuleRegistry 和JavaScriptModulesConfig 轉換成Json字符串，其中remoteModuleConfig指NativeModuleRegistry 信息，localModulesConfig指JavaScriptModulesConfig 信息?？聪翵avaScriptModulesConfig 的writeModuleDescriptions方法：
public void writeModuleDescriptions(JsonWriter writer) throws IOException {
writer.beginObject();
Iterator i$ = this.mModules.iterator();
while(i$.hasNext()) {
JavaScriptModuleRegistration registration = (JavaScriptModuleRegistration)i$.next();
writer.name(registration.getName()).beginObject();
this.appendJSModuleToJSONObject(writer, registration);
writer.endObject();
}
writer.endObject();
}看下appendJSModuleToJSONObject方法：
private void appendJSModuleToJSONObject(JsonWriter writer, JavaScriptModuleRegistration registration) throws IOException {
writer.name("moduleID").value((long)registration.getModuleId());
writer.name("methods").beginObject();
Iterator i$ = registration.getMethods().iterator();
while(i$.hasNext()) {
Method method = (Method)i$.next();
writer.name(method.getName()).beginObject();
writer.name("methodID").value((long)registration.getMethodId(method));
writer.endObject();
}
writer.endObject();
if(registration.getModuleInterface().isAnnotationPresent(SupportsWebWorkers.class)) {
writer.name("supportsWebWorkers").value(true);
}
}從上代碼可知生成的json字符串包括moduleID和methodID信息。NativeModuleRegistry 也同理，我們大概看下它的代碼：
void writeModuleDescriptions(JsonWriter writer) throws IOException {
Systrace.beginSection(0L, "CreateJSON");
try {
writer.beginObject();
Iterator i$ = this.mModuleTable.iterator();
while(i$.hasNext()) {
NativeModuleRegistry.ModuleDefinition moduleDef = (NativeModuleRegistry.ModuleDefinition)i$.next();
writer.name(moduleDef.name).beginObject();
writer.name("moduleID").value((long)moduleDef.id);
writer.name("supportsWebWorkers").value(moduleDef.target.supportsWebWorkers());
writer.name("methods").beginObject();
for(int i = 0; i < moduleDef.methods.size(); ++i) {
NativeModuleRegistry.MethodRegistration method = (NativeModuleRegistry.MethodRegistration)moduleDef.methods.get(i);
writer.name(method.name).beginObject();
writer.name("methodID").value((long)i);
writer.name("type").value(method.method.getType());
writer.endObject();
}
writer.endObject();
moduleDef.target.writeConstantsField(writer, "constants");
writer.endObject();
}
writer.endObject();
} finally {
Systrace.endSection(0L);
}
}
接下來我們要找到setGlobalVariable的Native層代碼，C++層代碼我不太懂，這里參考了下他人的分析進程。大概進程是這樣，首先入口是OnLoad.cpp。在其中找到以下代碼：
void Bridge::setGlobalVariable(const std::string& propName, const std::string& jsonValue) {
runOnExecutorQueue(*m_mainExecutorToken, [=] (JSExecutor* executor) {
executor->setGlobalVariable(propName, jsonValue);
});
}
都是塞進runOnExecutorQueue履行隊列里面等待調用，最后回調到JSExecutor，而JSExecutor的實現類是JSCExecutor，最后來看看它的setGlobalVariable方法。
void JSCExecutor::setGlobalVariable(const std::string& propName, const std::string& jsonValue) {
auto globalObject = JSContextGetGlobalObject(m_context);
String jsPropertyName(propName.c_str());
String jsValueJSON(jsonValue.c_str());
auto valueToInject = JSValueMakeFromJSONString(m_context, jsValueJSON);
JSObjectSetProperty(m_context, globalObject, jsPropertyName, valueToInject, 0, NULL);
}懂個大概吧，參數propName是從Java層傳遞過來的，相當于java代碼中的__fbBatchedBridgeConfig和__RCTProfileIsProfiling。jsPropertyName方法就是buildModulesConfigJSONProperty封裝好的對象。JSContextGetGlobalObject是WeiKit的方法，接下來會調用到js層的MessageQueue中：
const MessageQueue = require('MessageQueue');
const BatchedBridge = new MessageQueue(
__fbBatchedBridgeConfig.remoteModuleConfig,
__fbBatchedBridgeConfig.localModulesConfig,
);生成兩個映照表，從上面的代碼我們己經分析過了，remoteModuleConfig是NativeModuleRegisty映照表內容。localModulesConfig則是JavaScriptModule內容。
到這里，js就生成了兩張映照表了，這樣java層和js層就都存在一樣的映照表，相互通訊就是通過它來實現。扯遠了，回到createReactView。
try {
catalystInstance.runJSBundle();
} finally {
Systrace.endSection(0L);
ReactMarker.logMarker("RUN_JS_BUNDLE_END");
}調用catalystInstance.runJSBundle加載解析Jsbundle。
回到createReactView方法，看catalystInstance.runJSBundle：
public void runJSBundle() {
try {
this.mJSBundleHasLoaded = ((Boolean)this.mReactQueueConfiguration.getJSQueueThread().callOnQueue(new Callable() {
public Boolean call() throws Exception {
Assertions.assertCondition(!CatalystInstanceImpl.this.mJSBundleHasLoaded, "JS bundle was already loaded!");
CatalystInstanceImpl.this.incrementPendingJSCalls();
Systrace.beginSection(0L, "loadJSScript");
try {
CatalystInstanceImpl.this.mJSBundleLoader.loadScript(CatalystInstanceImpl.this.mBridge);
Systrace.registerListener(CatalystInstanceImpl.this.mTraceListener);
} catch (JSExecutionException var5) {
CatalystInstanceImpl.this.mNativeModuleCallExceptionHandler.handleException(var5);
} finally {
Systrace.endSection(0L);
}
return Boolean.valueOf(true);
}
}).get()).booleanValue();
} catch (Exception var2) {
throw new RuntimeException(var2);
}
}調用catalystInstance.runJSBundle加載解析Jsbundle。假設在解析進程中出現Exception，統1交給NativeModuleCallExceptionHandler處理。
在創建完React Context后會履行ReactContextInitAsyncTask的onPostExecute。來看下onPostExecute的代碼：
private void setupReactContext(ReactApplicationContext reactContext) {
UiThreadUtil.assertOnUiThread();
Assertions.assertCondition(this.mCurrentReactContext == null);
this.mCurrentReactContext = (ReactContext)Assertions.assertNotNull(reactContext);
CatalystInstance catalystInstance = (CatalystInstance)Assertions.assertNotNull(reactContext.getCatalystInstance());
catalystInstance.initialize();
this.mDevSupportManager.onNewReactContextCreated(reactContext);
this.mMemoryPressureRouter.addMemoryPressureListener(catalystInstance);
this.moveReactContextToCurrentLifecycleState();
Iterator listeners = this.mAttachedRootViews.iterator();
while(listeners.hasNext()) {
ReactRootView arr$ = (ReactRootView)listeners.next();
this.attachMeasuredRootViewToInstance(arr$, catalystInstance);
}
ReactInstanceEventListener[] var8 = new ReactInstanceEventListener[this.mReactInstanceEventListeners.size()];
var8 = (ReactInstanceEventListener[])this.mReactInstanceEventListeners.toArray(var8);
ReactInstanceEventListener[] var9 = var8;
int len$ = var8.length;
for(int i$ = 0; i$ < len$; ++i$) {
ReactInstanceEventListener listener = var9[i$];
listener.onReactContextInitialized(reactContext);
}
}這里主要實現兩個功能，第1，調用catalystInstance.initialize()來創建NativeModuleRegistry,好啦，回答了1個問題了哈。
public void initialize() {
UiThreadUtil.assertOnUiThread();
Assertions.assertCondition(!this.mInitialized, "This catalyst instance has already been initialized");
this.mInitialized = true;
this.mJavaRegistry.notifyCatalystInstanceInitialized();
}第2，調用attachMeasuredRootView方法。將ReactRootView做為Root View傳遞給UIManagerModule，爾后Js通過UIManager創建的View都會add到該View上。以下：
public void attachMeasuredRootView(ReactRootView rootView) {
UiThreadUtil.assertOnUiThread();
this.mAttachedRootViews.add(rootView) ;
if( this.mReactContextInitAsyncTask == null && this.mCurrentReactContext != null) {
this .attachMeasuredRootViewToInstance(rootView , this.mCurrentReactContext.getCatalystInstance()) ;
}
}再來看下attachMeasuredRootViewToInstance這個方法：
private void attachMeasuredRootViewToInstance(ReactRootView rootView , C
生活不易，碼農辛苦
如果您覺得本網站對您的學習有所幫助,可以手機掃描二維碼進行捐贈
程序員人生，我編程，我富裕，記住wfuyu網，php教程，php學習，php手冊，CMS模版制作
聲明：本站大部分內容是作者原創，少部分收集于互聯網供大家一起學習，原版權很多不明，如有侵權請聯系本站，謝謝！
粵ICP備14040726號-1?? 2015-2020 程序員人生 版權所有
