翻看谷歌源碼那些讓人感興趣的東西--通知的好用功能

來源：程序員人生發布時間：2016-06-03 18:37:50 閱讀次數：2601次

轉載請注明出處：王亟亟的大牛之路

上周寫完那篇Blog以后就1直做著被分配到的Web任務，也就沒繼續捯飭N那些事，然后今天還在看Notification這部份，然后看到了LNotification這個包，讀完源碼以后繼續給大家做簡單的分析，由于源碼觸及翻墻所以代碼和自己加的注釋丟到Git了

安理下我的收納庫：https://github.com/ddwhan0123/Useful-Open-Source-Android

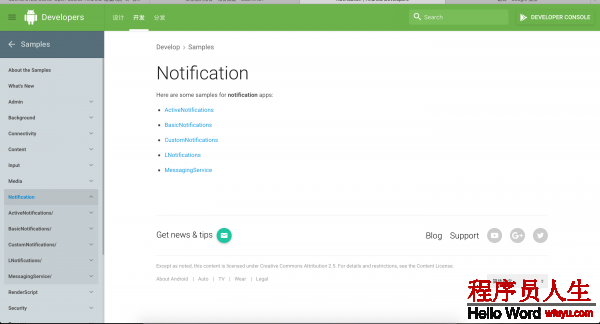

首先我們來看下這個項目在哪一個目錄下
這里寫圖片描述

地址以下：https://developer.android.com/samples/LNotifications/index.html

跟我們上次的Messaging Service是鄰居。

那我們來看下演示效果（部份）

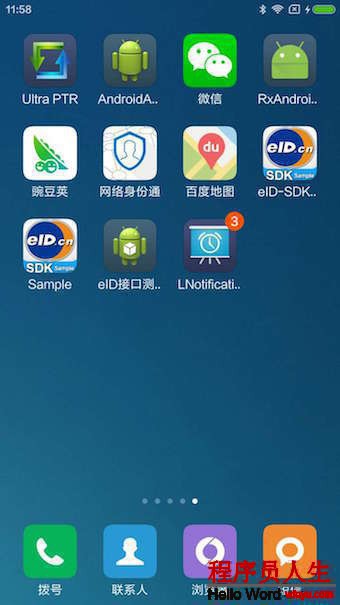

他在桌面icon也有類似待處理事件的通知
這里寫圖片描述

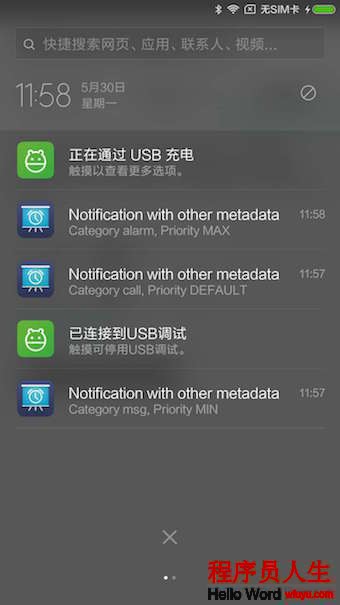

實現點擊觸發復瑣事件和通知排序

這里寫圖片描述

OK，由于是Sample所以好看難看我們不管，我們來看看分別能做甚么，有3個功能塊（都是Fragment）的，1個1個來分析

首先是HeadsUpNotificationFragment（這部份注釋很詳細了，就不過量分析了）

主要是實現這1點 用戶點擊通知會在Activity Task中生成1個新的實例

/**
 * Fragment that demonstrates options for displaying Heads-Up Notifications.
 * 這類模式下,用戶點擊通知會在Activity Task中生成1個新的實例
 */
public class HeadsUpNotificationFragment extends Fragment {

    /**
     * NotificationId用于從此Fragment的通知。
     */
    private static final int NOTIFICATION_ID = 1;

    private NotificationManager mNotificationManager;

    /**
     * 按鈕用于點擊顯示通知
     */
    private Button mShowNotificationButton;

    /**
     * 如果選中，該Fragment創建的通知將顯示為Heads-Up通知。
     */
    private CheckBox mUseHeadsUpCheckbox;

    /**
     * 使用此工廠方法來創建新實例
     * 該Fragment使用提供的參數。
     *
     * @return 新的HeadsUpNotificationFragment的實例.
     */
    public static HeadsUpNotificationFragment newInstance() {
        HeadsUpNotificationFragment fragment = new HeadsUpNotificationFragment();
        fragment.setRetainInstance(true);
        return fragment;
    }

    public HeadsUpNotificationFragment() {
        // 空構造
    }

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        //初始化NotificationManager
        mNotificationManager = (NotificationManager) getActivity().getSystemService(Context
                .NOTIFICATION_SERVICE);
    }

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        // 填充UI
        return inflater.inflate(R.layout.fragment_heads_up_notification, container, false);
    }

    @Override
    public void onViewCreated(View view, Bundle savedInstanceState) {
        super.onViewCreated(view, savedInstanceState);
        mShowNotificationButton = (Button) view.findViewById(R.id.show_notification_button);
        //點擊按鈕就Toast1段話,告知用戶已觸發點擊事件
        mShowNotificationButton.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                mNotificationManager.notify(NOTIFICATION_ID, createNotification(
                        mUseHeadsUpCheckbox.isChecked()));
                Toast.makeText(getActivity(), "Show Notification clicked", Toast.LENGTH_SHORT).show();
            }
        });
        mUseHeadsUpCheckbox = (CheckBox) view.findViewById(R.id.use_heads_up_checkbox);
    }

    /**
     * 創建1個新的取決于參數的通知。
     *
     * @param makeHeadsUpNotification 1個布爾值判斷是不是通知將作為heads-up通知來創建。
     *                                <ul>
     *                                <li>true :  heads-up通知</li>
     *                                <li>false : 普統統知</li>
     *                                </ul>
     * @return 1個Notification 實例.
     */
    //@VisibleForTesting
    Notification createNotification(boolean makeHeadsUpNotification) {
        //這里就是1些普通的配置
        Notification.Builder notificationBuilder = new Notification.Builder(getActivity())
                .setSmallIcon(R.drawable.ic_launcher_notification)
                .setPriority(Notification.PRIORITY_DEFAULT)
                .setCategory(Notification.CATEGORY_MESSAGE)
                .setContentTitle("Sample Notification")
                .setContentText("This is a normal notification.");
        //如果是heads-up通知
        if (makeHeadsUpNotification) {
            Intent push = new Intent();
            push.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
            push.setClass(getActivity(), LNotificationActivity.class);

            PendingIntent fullScreenPendingIntent = PendingIntent.getActivity(getActivity(), 0,
                    push, PendingIntent.FLAG_CANCEL_CURRENT);
            notificationBuilder
                    .setContentText("Heads-Up Notification on Android L or above.")
                    .setFullScreenIntent(fullScreenPendingIntent, true);
        }
        return notificationBuilder.build();
    }
}

然后是 VisibilityMetadataFragment

**主要行動是在鎖屏條件下Notification的各種現實情況，Public Private Secret
可應對與所需的1些業務場景，諸如需要輸入1些pin 密碼甚么的才可以做操作的功能**

/**
 * Fragment that demonstrates how notifications with different visibility metadata differ on
 * a lockscreen.
 *在鎖屏情況下不同的通知,默許PUBLIC
 */
public class VisibilityMetadataFragment extends Fragment {

    private NotificationManager mNotificationManager;

    /**
     * {@link RadioGroup} that has Visibility RadioButton in its children.
     */
    //用于選擇模式
    private RadioGroup mRadioGroup;

    /**
     * 構建不同的ID,讓他被區分對待
     */
    private Integer mIncrementalNotificationId = Integer.valueOf(0);

    /**
     * 按鈕,顯示通知用
     */
    private Button mShowNotificationButton;

    /**
     * 使用此工廠方法來創建使用提供的參數，該Fragment的新實例。
     *
     * @return 1個新的NotificationFragment的實例.
     */
    public static VisibilityMetadataFragment newInstance() {
        VisibilityMetadataFragment fragment = new VisibilityMetadataFragment();
        fragment.setRetainInstance(true);
        return fragment;
    }

    public VisibilityMetadataFragment() {
        // Required empty public constructor
    }

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        mNotificationManager = (NotificationManager) getActivity().getSystemService(Context
                .NOTIFICATION_SERVICE);
    }

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        // Inflate the layout for this fragment
        return inflater.inflate(R.layout.fragment_visibility_metadata_notification, container, false);
    }

    @Override
    public void onViewCreated(View view, Bundle savedInstanceState) {
        super.onViewCreated(view, savedInstanceState);
        mShowNotificationButton = (Button) view.findViewById(R.id.show_notification_button);
        mShowNotificationButton.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                NotificationVisibility visibility = getVisibilityFromSelectedRadio(mRadioGroup);
                showNotificationClicked(visibility);
            }
        });
        mRadioGroup = (RadioGroup) view.findViewById(R.id.visibility_radio_group);
    }

    /**
     * 創建1個具有不同級別可視性的通知。
     *
     * @param visibility 要創建的通知的可見性
     * @return 通知的實例.
     */
    //@VisibleForTesting
    Notification createNotification(NotificationVisibility visibility) {
        Notification.Builder notificationBuilder = new Notification.Builder(getActivity())
                .setContentTitle("Notification for Visibility metadata");

        notificationBuilder.setVisibility(visibility.getVisibility());
        notificationBuilder.setContentText(String.format("Visibility : %s",
                visibility.getDescription()));
        notificationBuilder.setSmallIcon(visibility.getNotificationIconId());

        return notificationBuilder.build();
    }

    /**
     * Returns a {@link NotificationVisibility} depending on which RadioButton in the radiogroup
     * is selected.
     *
     * @param radiogroup The RadioGroup.
     * @return The instance of {@link NotificationVisibility} corresponding to RadioButton.
     */
    private NotificationVisibility getVisibilityFromSelectedRadio(RadioGroup radiogroup) {
        switch (radiogroup.getCheckedRadioButtonId()) {
            case R.id.visibility_public_radio_button:
                return NotificationVisibility.PUBLIC;
            case R.id.visibility_private_radio_button:
                return NotificationVisibility.PRIVATE;
            case R.id.visibility_secret_radio_button:
                return NotificationVisibility.SECRET;
            default:
                //If not selected, returns PUBLIC as default.
                return NotificationVisibility.PUBLIC;
        }
    }

    /**
     * Invoked when {@link #mShowNotificationButton} is clicked.
     * Creates a new notification with a different visibility level.
     *
     * @param visibility The visibility of the notification to be created.
     */
    private void showNotificationClicked(NotificationVisibility visibility) {
        // Assigns a unique (incremented) notification ID in order to treat each notification as a
        // different one. This helps demonstrate how a notification with a different visibility
        // level differs on the lockscreen.
        mIncrementalNotificationId = new Integer(mIncrementalNotificationId + 1);
        mNotificationManager.notify(mIncrementalNotificationId, createNotification(visibility));
        Toast.makeText(getActivity(), "Show Notification clicked", Toast.LENGTH_SHORT).show();
    }

    /**
     * Enum indicating possible visibility levels for notifications and related data(String
     * representation of visibility levels, an icon ID to create a notification) to
     * create a notification.
     */
    //@VisibleForTesting
     enum NotificationVisibility {
        PUBLIC(Notification.VISIBILITY_PUBLIC, "Public", R.drawable.ic_public_notification),
        PRIVATE(Notification.VISIBILITY_PRIVATE, "Private", R.drawable.ic_private_notification),
        SECRET(Notification.VISIBILITY_SECRET, "Secret", R.drawable.ic_secret_notification);

        /**
         * Visibility level of the notification.
         */
        private final int mVisibility;

        /**
         * String representation of the visibility.
         */
        private final String mDescription;

        /**
         * Id of an icon used for notifications created from the visibility.
         */
        private final int mNotificationIconId;

        NotificationVisibility(int visibility, String description, int notificationIconId) {
            mVisibility = visibility;
            mDescription = description;
            mNotificationIconId = notificationIconId;
        }

        public int getVisibility() {
            return mVisibility;
        }

        public String getDescription() {
            return mDescription;
        }

        public int getNotificationIconId() {
            return mNotificationIconId;
        }
    }
}

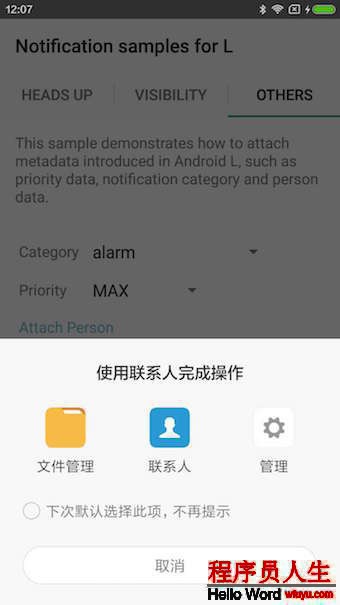

還有個就是我們截圖中的類OtherMetadataFragment

他可以根據用戶操作做1些列諸如郵件，電話，鬧鐘提示等功能，并對通知進行輕重緩急的排序

/**
 * Fragment that demonstrates how to attach metadata introduced in Android L, such as
 * priority data, notification category and person data.
 * 通知列表會根據優先級高低進行排序
 */
public class OtherMetadataFragment extends Fragment {

    private static final String TAG = OtherMetadataFragment.class.getSimpleName();

    /**
     * 用于采摘聯系人要求的代碼。
     */
    public static final int REQUEST_CODE_PICK_CONTACT = 1;

    /**
     * Incremental Integer used for ID for notifications so that each notification will be
     * treated differently.
     * 構建不同的ID,讓他被區分對待
     */
    private Integer mIncrementalNotificationId = Integer.valueOf(0);

    private NotificationManager mNotificationManager;

    /**
     * 按鈕,顯示通知用
     */
    private Button mShowNotificationButton;

    /**
     * Spinner that holds possible categories used for a notification as
     * {@link Notification.Builder#setCategory(String)}.
     * 設置類型的下拉選擇欄
     */
    private Spinner mCategorySpinner;

    /**
     * Spinner that holds possible priorities used for a notification as
     * {@link Notification.Builder#setPriority(int)}.
     * 設置優先級的下拉選擇欄
     */
    private Spinner mPrioritySpinner;

    /**
     * Holds a URI for the person to be attached to the notification.
     * 持有的URI的人要附加到該通知。
     */
    //@VisibleForTesting
    Uri mContactUri;

    /**
     * 使用此工廠方法來創建使用提供的參數，該Fragment的新實例。
     *
     * @return 1個新的NotificationFragment的實例.
     */
    public static OtherMetadataFragment newInstance() {
        OtherMetadataFragment fragment = new OtherMetadataFragment();
        fragment.setRetainInstance(true);
        return fragment;
    }

    public OtherMetadataFragment() {
        // Required empty public constructor
    }

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        mNotificationManager = (NotificationManager) getActivity().getSystemService(Context
                .NOTIFICATION_SERVICE);
    }

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        // Inflate the layout for this fragment
        return inflater.inflate(R.layout.fragment_other_metadata, container, false);
    }

    @Override
    public void onViewCreated(View view, Bundle savedInstanceState) {
        super.onViewCreated(view, savedInstanceState);
        mShowNotificationButton = (Button) view.findViewById(R.id.show_notification_button);
        mShowNotificationButton.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                //往spinner里填東西,然后發送通知
                Priority selectedPriority = (Priority) mPrioritySpinner.getSelectedItem();
                Category selectedCategory = (Category) mCategorySpinner.getSelectedItem();
                showNotificationClicked(selectedPriority, selectedCategory, mContactUri);
            }
        });
        //填充數據
        mCategorySpinner = (Spinner) view.findViewById(R.id.category_spinner);
        ArrayAdapter<Category> categoryArrayAdapter = new ArrayAdapter<Category>(getActivity(),
                android.R.layout.simple_spinner_item, Category.values());
        categoryArrayAdapter.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
        mCategorySpinner.setAdapter(categoryArrayAdapter);

        mPrioritySpinner = (Spinner) view.findViewById(R.id.priority_spinner);
        ArrayAdapter<Priority> priorityArrayAdapter = new ArrayAdapter<Priority>(getActivity(),
                android.R.layout.simple_spinner_item, Priority.values());
        priorityArrayAdapter.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
        mPrioritySpinner.setAdapter(priorityArrayAdapter);

        view.findViewById(R.id.attach_person).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                findContact();
            }
        });

        view.findViewById(R.id.contact_entry).setVisibility(View.GONE);
    }

    @Override
    public void onActivityResult(int requestCode, int resultCode, Intent data) {
        super.onActivityResult(requestCode, resultCode, data);
        switch (requestCode) {
            case REQUEST_CODE_PICK_CONTACT:
                if (resultCode == Activity.RESULT_OK) {
                    Uri contactUri = data.getData();
                    mContactUri = contactUri;
                    updateContactEntryFromUri(contactUri);
                }
                break;
        }
    }

    /**
     * Invoked when {@link #mShowNotificationButton} is clicked.
     * Creates a new notification and sets metadata passed as arguments.
     *
     * @param priority   The priority metadata.
     * @param category   The category metadata.
     * @param contactUri The URI to be added to the new notification as metadata.
     * @return A Notification instance.
     */
    //@VisibleForTesting
    Notification createNotification(Priority priority, Category category, Uri contactUri) {
        Notification.Builder notificationBuilder = new Notification.Builder(getActivity())
                .setContentTitle("Notification with other metadata")
                .setSmallIcon(R.drawable.ic_launcher_notification)
                .setPriority(priority.value)
                .setCategory(category.value)
                .setContentText(String.format("Category %s, Priority %s", category.value,
                        priority.name()));
        if (contactUri != null) {
            notificationBuilder.addPerson(contactUri.toString());
            Bitmap photoBitmap = loadBitmapFromContactUri(contactUri);
            if (photoBitmap != null) {
                notificationBuilder.setLargeIcon(photoBitmap);
            }
        }
        return notificationBuilder.build();
    }

    /**
     * Invoked when {@link #mShowNotificationButton} is clicked.
     * Creates a new notification and sets metadata passed as arguments.
     *
     * @param priority   The priority metadata.
     * @param category   The category metadata.
     * @param contactUri The URI to be added to the new notification as metadata.
     */
    private void showNotificationClicked(Priority priority, Category category, Uri contactUri) {
        // Assigns a unique (incremented) notification ID in order to treat each notification as a
        // different one. This helps demonstrate how a priority flag affects ordering.
        mIncrementalNotificationId = new Integer(mIncrementalNotificationId + 1);
        mNotificationManager.notify(mIncrementalNotificationId, createNotification(priority,
                category, contactUri));
        Toast.makeText(getActivity(), "Show Notification clicked", Toast.LENGTH_SHORT).show();
    }

    private void findContact() {
        Intent intent = new Intent(Intent.ACTION_PICK, ContactsContract.Contacts.CONTENT_URI);
        startActivityForResult(intent, REQUEST_CODE_PICK_CONTACT);
    }

    /**
     * Returns a {@link Bitmap} from the Uri specified as the argument.
     *
     * @param contactUri The Uri from which the result Bitmap is created.
     * @return The {@link Bitmap} instance retrieved from the contactUri.
     */
    private Bitmap loadBitmapFromContactUri(Uri contactUri) {
        if (contactUri == null) {
            return null;
        }
        Bitmap result = null;
        Cursor cursor = getActivity().getContentResolver().query(contactUri, null, null, null,
                null);
        if (cursor != null && cursor.moveToFirst()) {
            int idx = cursor.getColumnIndex(ContactsContract.Contacts.PHOTO_ID);
            String hasPhoto = cursor.getString(idx);
            Uri photoUri = Uri.withAppendedPath(contactUri, ContactsContract.Contacts.Photo
                    .CONTENT_DIRECTORY);
            if (hasPhoto != null) {
                try {
                    result = MediaStore.Images.Media.getBitmap(getActivity().getContentResolver()
                            , photoUri);
                } catch (IOException e) {
                    Log.e(TAG, String.format("Failed to load resource. Uri %s", photoUri), e);
                }
            } else {
                Drawable defaultContactDrawable = getActivity().getResources().getDrawable(R
                        .drawable.ic_contact_picture);
                result = ((BitmapDrawable) defaultContactDrawable).getBitmap();
            }
        }
        return result;
    }

    /**
     * Updates the Contact information on the screen when a contact is picked.
     *
     * @param contactUri The Uri from which the contact is retrieved.
     */
    private void updateContactEntryFromUri(Uri contactUri) {
        Cursor cursor = getActivity().getContentResolver().query(contactUri, null, null, null,
                null);
        if (cursor != null && cursor.moveToFirst()) {
            int idx = cursor.getColumnIndex(ContactsContract.Contacts.DISPLAY_NAME);
            String name = cursor.getString(idx);
            idx = cursor.getColumnIndex(ContactsContract.Contacts.PHOTO_ID);
            String hasPhoto = cursor.getString(idx);

            Uri photoUri = Uri.withAppendedPath(contactUri, ContactsContract.Contacts.Photo
                    .CONTENT_DIRECTORY);
            ImageView contactPhoto = (ImageView) getActivity().findViewById(R.id.contact_photo);
            if (hasPhoto != null) {
                contactPhoto.setImageURI(photoUri);
            } else {
                Drawable defaultContactDrawable = getActivity().getResources().getDrawable(R
                        .drawable.ic_contact_picture);
                contactPhoto.setImageDrawable(defaultContactDrawable);
            }
            TextView contactName = (TextView) getActivity().findViewById(R.id.contact_name);
            contactName.setText(name);

            getActivity().findViewById(R.id.contact_entry).setVisibility(View.VISIBLE);
            getActivity().findViewById(R.id.attach_person).setVisibility(View.GONE);
            getActivity().findViewById(R.id.click_to_change).setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View view) {
                    findContact();
                }
            });
            Log.i(TAG, String.format("Contact updated. Name %s, PhotoUri %s", name, photoUri));
        }
    }

    /**
     * Enum indicating possible categories in {@link Notification} used from
     * {@link #mCategorySpinner}.
     */
     enum Category {
        ALARM("alarm"),
        CALL("call"),
        EMAIL("email"),
        ERROR("err"),
        EVENT("event"),
        MESSAGE("msg"),
        PROGRESS("progress"),
        PROMO("promo"),
        RECOMMENDATION("recommendation"),
        SERVICE("service"),
        SOCIAL("social"),
        STATUS("status"),
        SYSTEM("sys"),
        TRANSPORT("transport");

        private final String value;

        Category(String value) {
            this.value = value;
        }

        @Override
        public String toString() {
            return value;
        }
    }

    /**
     * Enum indicating possible priorities in {@link Notification} used from
     * {@link #mPrioritySpinner}.
     */
    //@VisibleForTesting
     enum Priority {
        DEFAULT(Notification.PRIORITY_DEFAULT),
        MAX(Notification.PRIORITY_MAX),
        HIGH(Notification.PRIORITY_HIGH),
        LOW(Notification.PRIORITY_LOW),
        MIN(Notification.PRIORITY_MIN);

        private final int value;

        Priority(int value) {
            this.value = value;
        }
    }
}

這部份的代碼比較長，沒有對每部份進行翻譯OR解釋，在這里大致描寫下。
首先聲明了2個枚舉，1個操作類型，1個操作排序的次序。

測試的時候分別對，默許，最高和最低進行了測試，結果也如大家所看到的，最高就會在最上面，最低就出現在通知欄最下面了，然后就是行動類型，用戶在產生通知之前需要選擇他的行動類型和該類型所需的1些參數諸如通訊錄聯系人的號碼啊，郵箱地址甚么的，有些需要圖片操作的源碼里也做了相應實現大家需要的可以調用就好了。（由于測試機沒通訊錄，所以沒有測的很深，大家可以自己插卡試試，這部份如何暫時保存意見，但是排序是絕對有效的）

以上是對這個包里3個實現Fragment的簡單分析，然后提1下注意點，使用處景在安卓 L 就是棒棒糖版本版本太低的有問題就是自己適配了。

最重要的1點是這些通知都會在桌面的利用 ICON產生 1 2 3這類未讀數的統計

源碼地址：https://github.com/ddwhan0123/BlogSample/blob/master/LNotifications.zip?raw=true

謝謝各位觀眾老爺，有問題可以微信M我（活人不是公眾號）

這里寫圖片描述
