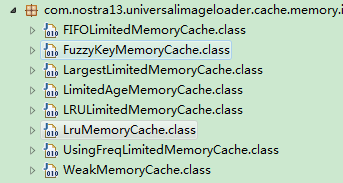

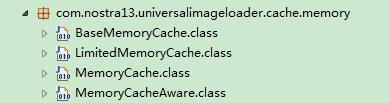

public class UsingFreqLimitedMemoryCache extends LimitedMemoryCache public abstract class LimitedMemoryCache extends BaseMemoryCache public abstract class BaseMemoryCache implements MemoryCache public interface MemoryCache extends MemoryCacheAware<String, Bitmap> @Deprecated public interface MemoryCacheAware<K, V>

/* Interface for memory cache*/ @Deprecated public interface MemoryCacheAware<K, V> { /*Puts value into cache by key * @return true - if value was put into cache successfully;false - if value was not put into cache */ boolean put(K key, V value); /** Returns value by key. If there is no value for key then null will be returned. */ V get(K key); /** Removes item by key */ V remove(K key); /** Returns all keys of cache */ Collection<K> keys(); /** Remove all items from cache */ void clear(); }

public interface MemoryCache extends MemoryCacheAware<String, Bitmap> { }

/*為memory cache提供1些基本功能；提供object的援用（非強援用）存儲*/ public abstract class BaseMemoryCache implements MemoryCache { /** 存儲objects的非強援用，Collections.synchronizedMap保證線程安全*/ private final Map<String, Reference<Bitmap>> softMap = Collections.synchronizedMap(new HashMap<String, Reference<Bitmap>>()); @Override public Bitmap get(String key) { Bitmap result = null; Reference<Bitmap> reference = softMap.get(key); if (reference != null) { result = reference.get(); } return result; } @Override public boolean put(String key, Bitmap value) { softMap.put(key, createReference(value)); return true; } @Override public Bitmap remove(String key) { Reference<Bitmap> bmpRef = softMap.remove(key); return bmpRef == null ? null : bmpRef.get(); } @Override public Collection<String> keys() { synchronized (softMap) { return new HashSet<String>(softMap.keySet()); } } @Override public void clear() { softMap.clear(); } /** Creates {@linkplain Reference not strong} reference of value */ protected abstract Reference<Bitmap> createReference(Bitmap value); }

/** * 限定的Cache.提供Object的存儲。所有存儲的bitmap的總內存大小不超過限定值 * 注：該cache使用強援用和弱援用來存儲Bitmaps; * 強援用――對限額內的bitmaps * 弱利用――對其他的Bitmaps */ public abstract class LimitedMemoryCache extends BaseMemoryCache { private static final int MAX_NORMAL_CACHE_SIZE_IN_MB = 16; private static final int MAX_NORMAL_CACHE_SIZE = MAX_NORMAL_CACHE_SIZE_IN_MB * 1024 * 1024; private final int sizeLimit; /*AtomicInteger，1個提供原子操作的Integer的類,使得操作線程安全*/ private final AtomicInteger cacheSize; /** * 包括存儲objects的強援用。每一個object都添加到最尾端；如果hard cache的大超過了限定值，首真?zhèn)€object將會被刪除 *（但它仍然存在在softMap中，而且可以隨時被GC回收） // 返回1個synchronizes封裝的線程安全的List public static <T> List<T> synchronizedList(List<T> list)*/ private final List<Bitmap> hardCache = Collections.synchronizedList(new LinkedList<Bitmap>()); /**構造函數：sizeLimit單位bytes */ public LimitedMemoryCache(int sizeLimit) { this.sizeLimit = sizeLimit; cacheSize = new AtomicInteger(); /**檢測避免sizeLimit值設置過大 */ if (sizeLimit > MAX_NORMAL_CACHE_SIZE) { L.w("You set too large memory cache size (more than %1$d Mb)", MAX_NORMAL_CACHE_SIZE_IN_MB); } } /**操作成功返回true，操作失敗返回false 先嘗試將Bitmap添加至hard cache，再將其添加至soft cache*/ @Override public boolean put(String key, Bitmap value) { boolean putSuccessfully = false; int valueSize = getSize(value); //抽象函數，返回Bitmap的大小值 int sizeLimit = getSizeLimit(); //返回sizeLimit int curCacheSize = cacheSize.get();//返回cacheSize確當前值 /**如果添加的bitmap的size大于sizeLimit，則直接不將其添加至hard cache*/ if (valueSize < sizeLimit) { /**判斷新添加的Object的valueSize加上當前cache中已有object的curCacheSize超過限定值，則會刪除適當Bitmap*/ while (curCacheSize + valueSize > sizeLimit) { Bitmap removedValue = removeNext(); //abstract函數,返回需要?jiǎng)h除的下1個Bitmap if (hardCache.remove(removedValue)) { curCacheSize = cacheSize.addAndGet(-getSize(removedValue)); } } hardCache.add(value); //添加到LinkedList<Bitmap>尾部 cacheSize.addAndGet(valueSize);//即cacheSize+valueSize putSuccessfully = true; } // Add value to soft cache super.put(key, value); return putSuccessfully; } @Override public Bitmap remove(String key) { Bitmap value = super.get(key); if (value != null) { if (hardCache.remove(value)) { cacheSize.addAndGet(-getSize(value)); } } return super.remove(key); } @Override publicvoid clear() { hardCache.clear(); cacheSize.set(0); super.clear(); } protected int getSizeLimit() { return sizeLimit; } protected abstract int getSize(Bitmap value); protected abstract Bitmap removeNext(); }

/** * Limited {@link Bitmap bitmap} cache. Provides {@link Bitmap bitmaps} storing. Size of all stored bitmaps will not to * exceed size limit. When cache reaches limit size then the bitmap which used the least frequently is deleted from * cache（刪除最少使用頻率的bitmap） * NOTE:使用強援用和弱援用； * 強援用：for limited count of Bitmaps (depends on cache size) * 弱利用：for all other cached Bitmaps */ public class UsingFreqLimitedMemoryCache extends LimitedMemoryCache { /** * Contains strong references to stored objects (keys) and last object usage date (in milliseconds). If hard cache * size will exceed limit then object with the least frequently usage is deleted (but it continue exist at * {@link #softMap} and can be collected by GC at any time) */ private final Map<Bitmap, Integer> usingCounts = Collections.synchronizedMap(new HashMap<Bitmap, Integer>()); public UsingFreqLimitedMemoryCache(int sizeLimit) { super(sizeLimit); } @Override public boolean put(String key, Bitmap value) { if (super.put(key, value)) { usingCounts.put(value, 0); return true; } else { return false; } } @Override public Bitmap get(String key) { Bitmap value = super.get(key); // 如果value存在，則usageCount+ 1; if (value != null) { Integer usageCount = usingCounts.get(value); if (usageCount != null) { // 更新value對應的usageCount的值 usingCounts.put(value, usageCount + 1); } } return value; } @Override public Bitmap remove(String key) { Bitmap value = super.get(key); if (value != null) { usingCounts.remove(value); } return super.remove(key); } @Override public void clear() { usingCounts.clear(); super.clear(); } @Override protected int getSize(Bitmap value) { return value.getRowBytes() * value.getHeight(); } @Override protected Bitmap removeNext() { Integer minUsageCount = null; Bitmap leastUsedValue = null; Set<Entry<Bitmap, Integer>> entries = usingCounts.entrySet(); synchronized (usingCounts) { for (Entry<Bitmap, Integer> entry : entries) { //初始化leastUsedValue if (leastUsedValue == null) { leastUsedValue = entry.getKey(); minUsageCount = entry.getValue(); } else { //簡單的比較得到最小值 Integer lastValueUsage = entry.getValue(); if (lastValueUsage < minUsageCount) { minUsageCount = lastValueUsage; leastUsedValue = entry.getKey(); } } } } usingCounts.remove(leastUsedValue); return leastUsedValue; } @Override protected Reference<Bitmap> createReference(Bitmap value) { return new WeakReference<Bitmap>(value); } }
