前言
最近公司沒項目，我們碼農處于“農閑”的時期，主管說要我找個動畫渲染的引擎，找了好久都沒找適合的，因而就自己動手寫了個自我感覺比較酷炫的屏保效果。
1、控制界面，這個界面沒甚么技術含量，主要作用是用來控制動畫到底有多炫的，比如動畫色采的豐富度和動畫速度的。溫馨提示，依照提示填入相應的數字，我沒有做越界的處理，你要是crash了請不要找我。
- (void)viewDidLoad {
[super viewDidLoad];
self.view.backgroundColor = [UIColor whiteColor];
self.title = @"設置參數";
UILabel *labelColor = [[UILabel alloc] initWithFrame:CGRectMake(0, 64, self.view.frame.size.width, 30)];
labelColor.text = @" 設置色彩豐富度";
labelColor.backgroundColor = [UIColor groupTableViewBackgroundColor];
[self.view addSubview:labelColor];
//設置R值的范圍
UIView *viewR = [[UIView alloc] initWithFrame:CGRectMake(10, CGRectGetMaxY(labelColor.frame)+10, self.view.frame.size.width⑵0, 70)];
viewR.layer.borderColor = [UIColor groupTableViewBackgroundColor].CGColor;
viewR.layer.borderWidth = 1.0;
viewR.layer.cornerRadius = 2.0;
[self.view addSubview:viewR];
UILabel *title = [[UILabel alloc] initWithFrame:CGRectMake(5, 5, 200, 20)];
title.text = @"請設置R值的范圍(0⑵55)";
title.textColor = [UIColor grayColor];
title.font = [UIFont systemFontOfSize:15.0];
[viewR addSubview:title];
UILabel *min = [[UILabel alloc] initWithFrame:CGRectMake(20, CGRectGetMaxY(title.frame)+10, 70, 25)];
min.text = @"最小值:";
min.textColor = [UIColor grayColor];
min.font = [UIFont systemFontOfSize:17.0];
[viewR addSubview:min];
textFieldMinR = [[UITextField alloc] initWithFrame:CGRectMake(CGRectGetMaxX(min.frame), CGRectGetMinY(min.frame), 50, 25)];
textFieldMinR.layer.borderWidth = 1.0f;
textFieldMinR.layer.borderColor = [UIColor grayColor].CGColor;
textFieldMinR.layer.cornerRadius = 2.0;
textFieldMinR.textAlignment = NSTextAlignmentCenter;
[viewR addSubview:textFieldMinR];
UILabel *max = [[UILabel alloc] initWithFrame:CGRectMake(CGRectGetMaxX(textFieldMinR.frame)+50, CGRectGetMaxY(title.frame)+10, 70, 25)];
max.text = @"最大值:";
max.textColor = [UIColor grayColor];
max.font = [UIFont systemFontOfSize:17.0];
[viewR addSubview:max];
textFieldMaxR = [[UITextField alloc] initWithFrame:CGRectMake(CGRectGetMaxX(max.frame), CGRectGetMinY(min.frame), 50, 25)];
textFieldMaxR.layer.borderWidth = 1.0f;
textFieldMaxR.layer.borderColor = [UIColor grayColor].CGColor;
textFieldMaxR.layer.cornerRadius = 2.0;
textFieldMaxR.textAlignment = NSTextAlignmentCenter;
[viewR addSubview:textFieldMaxR];
//設置G值的范圍
UIView *viewG = [[UIView alloc] initWithFrame:CGRectMake(10, CGRectGetMaxY(viewR.frame)+10, self.view.frame.size.width⑵0, 70)];
viewG.layer.borderColor = [UIColor groupTableViewBackgroundColor].CGColor;
viewG.layer.borderWidth = 1.0;
viewG.layer.cornerRadius = 2.0;
[self.view addSubview:viewG];
UILabel *titleG = [[UILabel alloc] initWithFrame:CGRectMake(5, 5, 200, 20)];
titleG.text = @"請設置G值的范圍(0⑵55)";
titleG.textColor = [UIColor grayColor];
titleG.font = [UIFont systemFontOfSize:15.0];
[viewG addSubview:titleG];
UILabel *minG = [[UILabel alloc] initWithFrame:CGRectMake(20, CGRectGetMaxY(titleG.frame)+10, 70, 25)];
minG.text = @"最小值:";
minG.textColor = [UIColor grayColor];
minG.font = [UIFont systemFontOfSize:17.0];
[viewG addSubview:minG];
textFieldMinG = [[UITextField alloc] initWithFrame:CGRectMake(CGRectGetMaxX(minG.frame), CGRectGetMinY(minG.frame), 50, 25)];
textFieldMinG.layer.borderWidth = 1.0f;
textFieldMinG.layer.borderColor = [UIColor grayColor].CGColor;
textFieldMinG.layer.cornerRadius = 2.0;
textFieldMinG.textAlignment = NSTextAlignmentCenter;
[viewG addSubview:textFieldMinG];
UILabel *maxG = [[UILabel alloc] initWithFrame:CGRectMake(CGRectGetMaxX(textFieldMinG.frame)+50, CGRectGetMaxY(titleG.frame)+10, 70, 25)];
maxG.text = @"最大值:";
maxG.textColor = [UIColor grayColor];
maxG.font = [UIFont systemFontOfSize:17.0];
[viewG addSubview:maxG];
textFieldMaxG = [[UITextField alloc] initWithFrame:CGRectMake(CGRectGetMaxX(maxG.frame), CGRectGetMinY(minG.frame), 50, 25)];
textFieldMaxG.layer.borderWidth = 1.0f;
textFieldMaxG.layer.borderColor = [UIColor grayColor].CGColor;
textFieldMaxG.layer.cornerRadius = 2.0;
textFieldMaxG.textAlignment = NSTextAlignmentCenter;
[viewG addSubview:textFieldMaxG];
//設置B值的范圍
UIView *viewB = [[UIView alloc] initWithFrame:CGRectMake(10, CGRectGetMaxY(viewG.frame)+10, self.view.frame.size.width⑵0, 70)];
viewB.layer.borderColor = [UIColor groupTableViewBackgroundColor].CGColor;
viewB.layer.borderWidth = 1.0;
viewB.layer.cornerRadius = 2.0;
[self.view addSubview:viewB];
UILabel *titleB = [[UILabel alloc] initWithFrame:CGRectMake(5, 5, 200, 20)];
titleB.text = @"請設置B值的范圍(0⑵55)";
titleB.textColor = [UIColor grayColor];
titleB.font = [UIFont systemFontOfSize:15.0];
[viewB addSubview:titleB];
UILabel *minB = [[UILabel alloc] initWithFrame:CGRectMake(20, CGRectGetMaxY(titleB.frame)+10, 70, 25)];
minB.text = @"最小值:";
minB.textColor = [UIColor grayColor];
minB.font = [UIFont systemFontOfSize:17.0];
[viewB addSubview:minB];
textFieldMinB = [[UITextField alloc] initWithFrame:CGRectMake(CGRectGetMaxX(minB.frame), CGRectGetMinY(minB.frame), 50, 25)];
textFieldMinB.layer.borderWidth = 1.0f;
textFieldMinB.layer.borderColor = [UIColor grayColor].CGColor;
textFieldMinB.layer.cornerRadius = 2.0;
textFieldMinB.textAlignment = NSTextAlignmentCenter;
[viewB addSubview:textFieldMinB];
UILabel *maxB = [[UILabel alloc] initWithFrame:CGRectMake(CGRectGetMaxX(textFieldMinB.frame)+50, CGRectGetMaxY(titleB.frame)+10, 70, 25)];
maxB.text = @"最大值:";
maxB.textColor = [UIColor grayColor];
maxB.font = [UIFont systemFontOfSize:17.0];
[viewB addSubview:maxB];
textFieldMaxB = [[UITextField alloc] initWithFrame:CGRectMake(CGRectGetMaxX(maxB.frame), CGRectGetMinY(minB.frame), 50, 25)];
textFieldMaxB.layer.borderWidth = 1.0f;
textFieldMaxB.layer.borderColor = [UIColor grayColor].<pre name="code" class="objc">#import "AnimationView.h"
@interface AnimationView ()
@end
@implementation AnimationView
@synthesize minR,minG,minB;
@synthesize maxR,maxG,maxB;
@synthesize suduzhi;
- (void)viewDidLoad {
[super viewDidLoad];
i = 0;
j = 0;
timeNum = 1;
self.view.backgroundColor = [UIColor blackColor];
timer = [NSTimer scheduledTimerWithTimeInterval:[suduzhi floatValue] target:self selector:@selector(drawCirle) userInfo:nil repeats:YES];
}
- (void)drawCirle
{
timeNum = timeNum +1;
CALayer *waveLayer=[CALayer layer];
if (timeNum < 100) {
waveLayer.frame = CGRectMake(self.view.center.x, self.view.center.y, 10, 10);
}
else if (timeNum >100 && timeNum <170){
waveLayer.frame = CGRectMake(i, i*2, 10, 10);
i = i +5;
}
else if (timeNum >170 && timeNum <240){
waveLayer.frame = CGRectMake(self.view.frame.size.width-j, j*2, 10, 10);
j = j +5;
}
else if (timeNum >240 && timeNum < 400) {
int x = (arc4random()%300)+20;
int y = (arc4random()%500)+20;
waveLayer.frame = CGRectMake(x, y, 10, 10);
}
else if (timeNum>400) {
[timer invalidate];//停止計時器
}
//設置色彩
int rMin = (int)[minR integerValue];
int rMax = (int)[maxR integerValue];
int gMin = (int)[minG integerValue];
int gMax = (int)[maxG integerValue];
int bMin = (int)[minB integerValue];
int bMax = (int)[maxB integerValue];
int redNum = (arc4random()%rMax) + rMin;
int greenNum = (arc4random()%gMax) + gMin;
int blueNum = (arc4random()%bMax) + bMin;
NSLog(@"%d %d %d",redNum,greenNum,blueNum);
UIColor *color = [UIColor colorWithRed:redNum/255.0 green:greenNum/255.0 blue:blueNum/255.0 alpha:1.0];
waveLayer.borderColor = color.CGColor;
waveLayer.borderWidth =0.5;
waveLayer.cornerRadius =5.0;
[self.view.layer addSublayer:waveLayer];
[self scaleBegin:waveLayer];
}
-(void)scaleBegin:(CALayer *)aLayer
{
float maxScale;
if (timeNum < 50) {
maxScale = 50.0;
}else {
maxScale = 20.0;
}
if (aLayer.transform.m11<maxScale) {
if (aLayer.transform.m11==1.0) {
[aLayer setTransform:CATransform3DMakeScale( 1.1, 1.1, 1.0)];
}else{
[aLayer setTransform:CATransform3DScale(aLayer.transform, 1.1, 1.1, 1.0)];
}
[self performSelector:_cmd withObject:aLayer afterDelay:0.05];
}else [aLayer removeFromSuperlayer];
}
@end
2、動畫實現界面，這個界面才是干貨。
#import "AnimationView.h"
@interface AnimationView ()
@end
@implementation AnimationView
@synthesize minR,minG,minB;
@synthesize maxR,maxG,maxB;
@synthesize suduzhi;
- (void)viewDidLoad {
[super viewDidLoad];
i = 0;
j = 0;
timeNum = 1;
self.view.backgroundColor = [UIColor blackColor];
timer = [NSTimer scheduledTimerWithTimeInterval:[suduzhi floatValue] target:self selector:@selector(drawCirle) userInfo:nil repeats:YES];
}
- (void)drawCirle
{
timeNum = timeNum +1;
CALayer *waveLayer=[CALayer layer];
if (timeNum < 100) {
waveLayer.frame = CGRectMake(self.view.center.x, self.view.center.y, 10, 10);
}
else if (timeNum >100 && timeNum <170){
waveLayer.frame = CGRectMake(i, i*2, 10, 10);
i = i +5;
}
else if (timeNum >170 && timeNum <240){
waveLayer.frame = CGRectMake(self.view.frame.size.width-j, j*2, 10, 10);
j = j +5;
}
else if (timeNum >240 && timeNum < 400) {
int x = (arc4random()%300)+20;
int y = (arc4random()%500)+20;
waveLayer.frame = CGRectMake(x, y, 10, 10);
}
else if (timeNum>400) {
[timer invalidate];//停止計時器
}
//設置色彩
int rMin = (int)[minR integerValue];
int rMax = (int)[maxR integerValue];
int gMin = (int)[minG integerValue];
int gMax = (int)[maxG integerValue];
int bMin = (int)[minB integerValue];
int bMax = (int)[maxB integerValue];
int redNum = (arc4random()%rMax) + rMin;
int greenNum = (arc4random()%gMax) + gMin;
int blueNum = (arc4random()%bMax) + bMin;
NSLog(@"%d %d %d",redNum,greenNum,blueNum);
UIColor *color = [UIColor colorWithRed:redNum/255.0 green:greenNum/255.0 blue:blueNum/255.0 alpha:1.0];
waveLayer.borderColor = color.CGColor;
waveLayer.borderWidth =0.5;
waveLayer.cornerRadius =5.0;
[self.view.layer addSublayer:waveLayer];
[self scaleBegin:waveLayer];
}
-(void)scaleBegin:(CALayer *)aLayer
{
float maxScale;
if (timeNum < 50) {
maxScale = 50.0;
}else {
maxScale = 20.0;
}
if (aLayer.transform.m11<maxScale) {
if (aLayer.transform.m11==1.0) {
[aLayer setTransform:CATransform3DMakeScale( 1.1, 1.1, 1.0)];
}else{
[aLayer setTransform:CATransform3DScale(aLayer.transform, 1.1, 1.1, 1.0)];
}
[self performSelector:_cmd withObject:aLayer afterDelay:0.05];
}else [aLayer removeFromSuperlayer];
}
@end

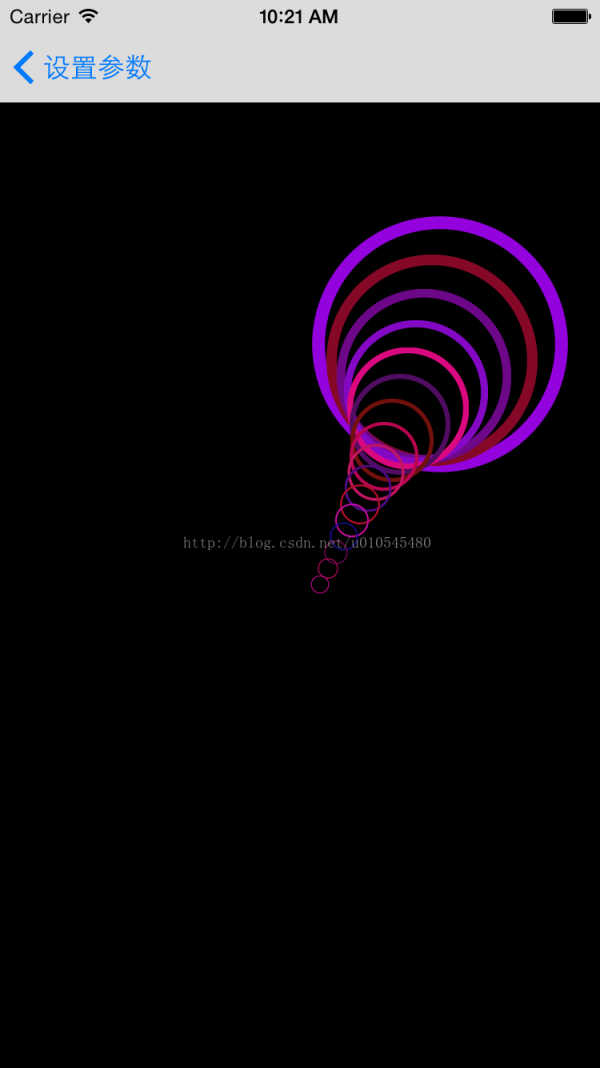

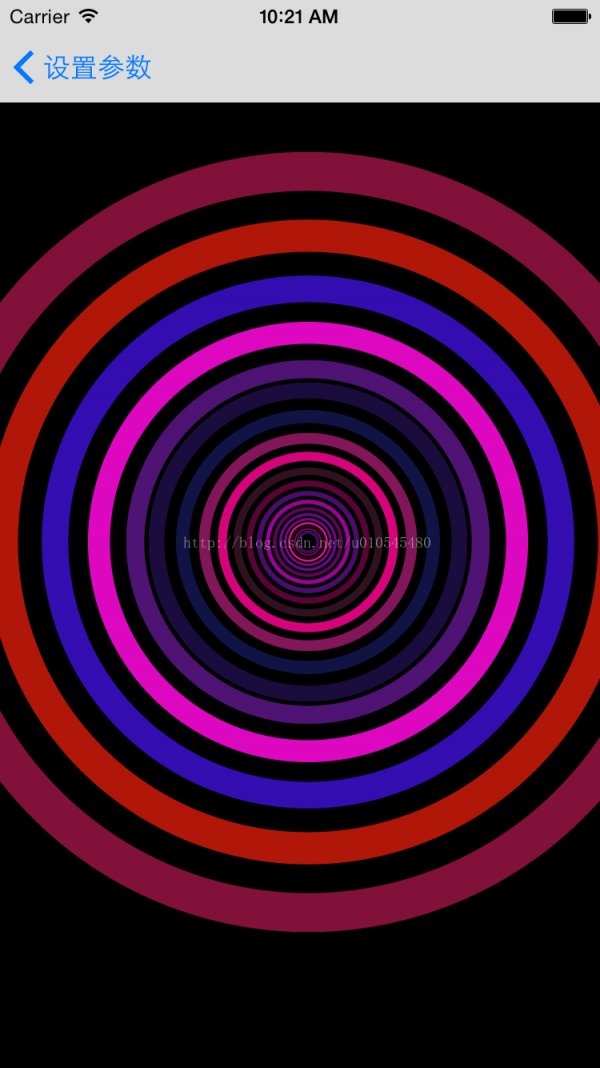

3、來看看截圖的效果吧
Demo下載地址：http://download.csdn.net/detail/u010545480/8647867
