Android中自定義下拉樣式Spinner
來源：程序員人生 發布時間：2015-05-12 09:01:31 閱讀次數：3772次
Android中自定義下拉樣式Spinner
本文繼續介紹android自定義控件系列，自定義Spinner控件的使用。
實現思路
1.定義下拉控件布局（ListView及子控件布局）
2.自定義SpinerPopWindow類
3.定義填充數據的Adapter

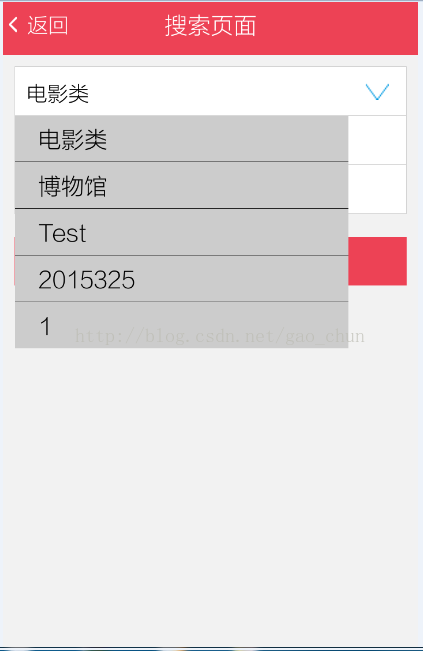

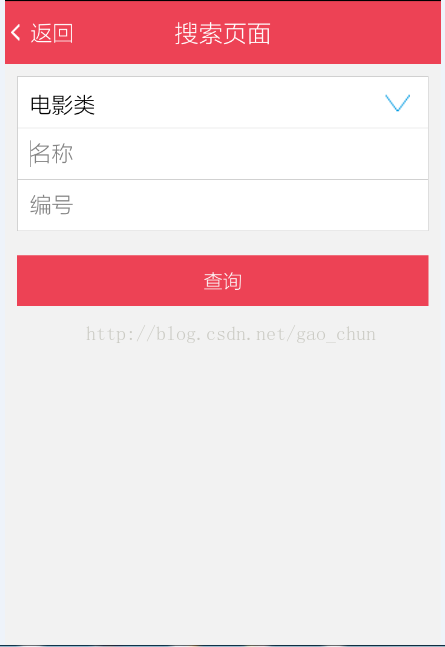

效果圖
1、定義控件布局
<?xml version="1.0" encoding="utf⑻"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="#f2f2f2"
android:orientation="vertical"
android:padding="5dp" >
<LinearLayout
android:id="@+id/layout"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_margin="5dp"
android:background="#cbcbcb"
android:orientation="vertical"
android:padding="0.2px" >
<RelativeLayout
android:layout_width="wrap_content"
android:layout_height="42dp" >
<TextView
android:id="@+id/tv_value"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_centerVertical="true"
android:layout_marginRight="50dp"
android:background="#fff"
android:ellipsize="end"
android:gravity="left|center"
android:hint="請選擇"
android:paddingLeft="10dp"
android:singleLine="true"
android:textColor="#ff000000"
android:textSize="18dp" >
</TextView>
<LinearLayout
android:id="@+id/bt_dropdown"
android:layout_width="50dp"
android:layout_height="match_parent"
android:layout_alignParentRight="true"
android:background="#fff"
android:gravity="center"
android:onClick="onClick" >
<ImageView
android:layout_width="20dp"
android:layout_height="15dp"
android:background="@drawable/down_arrow" />
</LinearLayout>
</RelativeLayout>
</LinearLayout>
</RelativeLayout>
2、定義SpinerPopWindow類
package org.gaochun.widget;
import java.util.List;
import org.gaochun.R;
import org.gaochun.adapter.SpinerAdapter;
import org.gaochun.adapter.SpinerAdapter.IOnItemSelectListener;
import android.content.Context;
import android.graphics.drawable.ColorDrawable;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup.LayoutParams;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.ListView;
import android.widget.PopupWindow;
/**
* 自定義SpinerPopWindow類
* @author gao_chun
*
*/
public class SpinerPopWindow extends PopupWindow implements OnItemClickListener{
private Context mContext;
private ListView mListView;
private SpinerAdapter mAdapter;
private IOnItemSelectListener mItemSelectListener;
public SpinerPopWindow(Context context)
{
super(context);
mContext = context;
init();
}
public void setItemListener(IOnItemSelectListener listener){
mItemSelectListener = listener;
}
public void setAdatper(SpinerAdapter adapter){
mAdapter = adapter;
mListView.setAdapter(mAdapter);
}
private void init()
{
View view = LayoutInflater.from(mContext).inflate(R.layout.spiner_window_layout, null);
setContentView(view);
setWidth(LayoutParams.WRAP_CONTENT);
setHeight(LayoutParams.WRAP_CONTENT);
setFocusable(true);
ColorDrawable dw = new ColorDrawable(0x00);
setBackgroundDrawable(dw);
mListView = (ListView) view.findViewById(R.id.listview);
mListView.setOnItemClickListener(this);
}
public void refreshData(List<String> list, int selIndex)
{
if (list != null && selIndex != ⑴)
{
if (mAdapter != null){
mAdapter.refreshData(list, selIndex);
}
}
}
@Override
public void onItemClick(AdapterView<?> arg0, View view, int pos, long arg3) {
dismiss();
if (mItemSelectListener != null){
mItemSelectListener.onItemClick(pos);
}
}
}
3、定義Adapter
package org.gaochun.adapter;
import java.util.List;
import org.gaochun.R;
import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.TextView;
public class SpinerAdapter extends BaseAdapter {
public static interface IOnItemSelectListener{
public void onItemClick(int pos);
};
private List<String> mObjects;
private LayoutInflater mInflater;
public SpinerAdapter(Context context,List<String> mObjects){
this.mObjects = mObjects;
mInflater = (LayoutInflater)context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
}
public void refreshData(List<String> objects, int selIndex){
mObjects = objects;
if (selIndex < 0){
selIndex = 0;
}
if (selIndex >= mObjects.size()){
selIndex = mObjects.size() - 1;
}
}
@Override
public int getCount() {
return mObjects.size();
}
@Override
public Object getItem(int pos) {
return mObjects.get(pos).toString();
}
@Override
public long getItemId(int pos) {
return pos;
}
@Override
public View getView(int pos, View convertView, ViewGroup arg2) {
ViewHolder viewHolder;
if (convertView == null) {
convertView = mInflater.inflate(R.layout.spiner_item_layout, null);
viewHolder = new ViewHolder();
viewHolder.mTextView = (TextView) convertView.findViewById(R.id.textView);
convertView.setTag(viewHolder);
} else {
viewHolder = (ViewHolder) convertView.getTag();
}
//Object item = getItem(pos);
viewHolder.mTextView.setText(mObjects.get(pos));
return convertView;
}
public static class ViewHolder
{
public TextView mTextView;
}
}
4、調用示例
public class MainActivity extends Activity implements OnClickListener,SpinerAdapter.IOnItemSelectListener{
private List<String> mListType = new ArrayList<String>(); //類型列表
private TextView mTView;
private SpinerAdapter mAdapter;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_search);
mTView = (TextView) findViewById(R.id.tv_value);
//初始化數據
String[] names = getResources().getStringArray(R.array.array_name);
for(int i = 0; i < names.length; i++){
mListType.add(names[i]);
}
mAdapter = new SpinerAdapter(this,mListType);
mAdapter.refreshData(mListType,0);
//顯示第1條數據
//mTView.setText(names[0]);
//初始化PopWindow
mSpinerPopWindow = new SpinerPopWindow(this);
mSpinerPopWindow.setAdatper(mAdapter);
mSpinerPopWindow.setItemListener(this);
}
//設置PopWindow
private SpinerPopWindow mSpinerPopWindow;
private void showSpinWindow(){
Log.e("", "showSpinWindow");
mSpinerPopWindow.setWidth(mTView.getWidth());
mSpinerPopWindow.showAsDropDown(mTView);
}
@Override
public void onClick(View v) {
switch (v.getId()) {
case R.id.bt_dropdown:
showSpinWindow();
break;
}
}
/* (non-Javadoc)
* @see org.gaochun.adapter.SpinerAdapter.IOnItemSelectListener#onItemClick(int)
*/
@Override
public void onItemClick(int pos) {
// TODO Auto-generated method stub
if (pos >= 0 && pos <= mListType.size()){
String value = mListType.get(pos);
mTView.setText(value.toString());
}
}
}
源碼下載：http://download.csdn.net/download/gao_chun/8653069
5、自定義控件系列
Android項目中使用自定義進度加載Dialog：http://blog.csdn.net/gao_chun/article/details/45270031
ListView中按鈕監聽器 設置 及 優化：http://blog.csdn.net/gao_chun/article/details/41249131
Android項目中自定義頂部標題欄：http://blog.csdn.net/gao_chun/article/details/45255929
Android自定義設置圓形圖片控件：http://blog.csdn.net/gao_chun/article/details/39207557
android自定義底部Tab，項目整體界面框架：http://blog.csdn.net/gao_chun/article/details/37903673
自定義AlertDialog提示框：http://blog.csdn.net/gao_chun/article/details/37757571
