Android volley 解析（四）之緩存篇

來源：程序員人生發布時間：2015-04-08 08:54:03 閱讀次數：3186次

這是 volley 的第4篇 blog 了，寫完這篇，volley 的大部份用法也都算寫了1遍，所以暫時不會寫 volley 的文章了，如果想看我前面寫的文章，可以點這里 Android volley 解析（3）之文件上傳篇

為何要用緩存

我們知道，當客戶端在要求網絡數據的時候，是需要消耗流量的，特別是對移動端用戶來講，對流量的控制要求很高。所以在做網絡要求的時候，如果對數據更新要求不是特別高，常常都會用到緩存機制，1方面能減少對服務真個要求，控制流量；另外一方面，當客戶端在沒有網絡的情況下也能看到上1次要求的數據，這樣使用戶體驗更佳，以下圖，微信朋友圈在沒有網絡的情況下，仍然能看到朋友們的動態
這里寫圖片描述

volley 緩存的原理

看了我前面blog 的朋友1定還記得，我在講 get 要求的時候，講到了volley 的基本流程，首先啟動的是緩存線程mCacheDispatcher來獲得緩存；
那我們就從如何獲得緩存開始分析；
1、初始化緩存

  @Override
    public void run() {
        if (DEBUG) VolleyLog.v("start new dispatcher");
        Process.setThreadPriority(Process.THREAD_PRIORITY_BACKGROUND);

        // Make a blocking call to initialize the cache.這里對緩存做初始化操作
        mCache.initialize();
        while (true) {
        ...

2、獲得緩存


        while (true) {
            try {
                // Get a request from the cache triage queue, blocking until
                // at least one is available.從緩存隊列中獲得緩存
                final Request request = mCacheQueue.take();
                request.addMarker("cache-queue-take");

                // If the request has been canceled, don't bother dispatching it.
                ...

這里有1個問題，緩存隊列在甚么時候添加緩存要求呢？我們回到最開始要求隊列添加要求的地方

    public Request add(Request request) {
        // Tag the request as belonging to this queue and add it to the set of current requests.
        request.setRequestQueue(this);
        synchronized (mCurrentRequests) {
            mCurrentRequests.add(request);
        }

        // Process requests in the order they are added.
        request.setSequence(getSequenceNumber());
        request.addMarker("add-to-queue");

        // If the request is uncacheable, skip the cache queue and go straight to the network.如果要求沒有設置緩存，則把要求添加到網絡隊列中
        if (!request.shouldCache()) {
            mNetworkQueue.add(request);
            return request;
        }

        // Insert request into stage if there's already a request with the same cache key in flight.
        synchronized (mWaitingRequests) {
            String cacheKey = request.getCacheKey();
            if (mWaitingRequests.containsKey(cacheKey)) {
                // There is already a request in flight. Queue up.
                Queue<Request> stagedRequests = mWaitingRequests.get(cacheKey);
                if (stagedRequests == null) {
                    stagedRequests = new LinkedList<Request>();
                }

                stagedRequests.add(request);
                mWaitingRequests.put(cacheKey, stagedRequests);
                if (VolleyLog.DEBUG) {
                    VolleyLog.v("Request for cacheKey=%s is in flight, putting on hold.", cacheKey);
                }
            } else {
                // Insert 'null' queue for this cacheKey, indicating there is now a request in
                // flight.
                mWaitingRequests.put(cacheKey, null);
                //這里添加要求到緩存隊列中
                mCacheQueue.add(request);
            }
            return request;
        }
    }

代碼不長，也很好理解，如果我們的要求沒有設置了緩存，則要求添加到網絡要求隊列中，并直接返回了，不往下履行了，這時候緩存隊列中沒法獲得要求，所以這里我們知道了，想要用緩存則需要
在 Request 中把

    //設置是不是啟用緩存
    public final void setShouldCache(boolean shouldCache) {
        mShouldCache = shouldCache;
    }

設為 true，固然，我們看mShouldCache 的默許值

    /**
     * Whether or not responses to this request should be cached.
     */
    private boolean mShouldCache = true;

volley默許啟用緩存的。再往下看

                // If the request has been canceled, don't bother dispatching it.如果已取消要求，則結束本次要求的所有操作
                if (request.isCanceled()) {
                    request.finish("cache-discard-canceled");
                    continue;
                }

                // Attempt to retrieve this item from cache. 通過緩存類獲得緩存
                Cache.Entry entry = mCache.get(request.getCacheKey());
                //如果獲得的緩存為空，這里有兩種情況為空，1，第1次換取，沒有情求過網絡；2，緩存的數據到達了最大限度，此緩存已被刪除。
                if (entry == null) {
                    request.addMarker("cache-miss");
                    Log.i("CacheDispatcher", "沒有緩存數據：" + request.getUrl());
                    mNetworkQueue.put(request);
                    continue;
                }

                // If it is completely expired, just send it to the network.緩存已過期，則重新要求網絡
                if (entry.isExpired()) {
                    request.addMarker("cache-hit-expired");
                    request.setCacheEntry(entry);
                    Log.i("CacheDispatcher", "緩存數據過期：" + request.getUrl());
                    mNetworkQueue.put(request);
                    continue;
                }

                // We have a cache hit; parse its data for delivery back to the request.
                request.addMarker("cache-hit");
                //到這里表示已成功獲得緩存數據
                Response<?> response = request.parseNetworkResponse(
                        new NetworkResponse(entry.data, entry.responseHeaders));
                request.addMarker("cache-hit-parsed");
                //如果緩存需要刷新，則要求網絡
                if (!entry.refreshNeeded()) {
                    // Completely unexpired cache hit. Just deliver the response.
                    Log.i("CacheDispatcher", "獲得緩存數據：" + request.getUrl());
                    mDelivery.postResponse(request, response);
                } else {
                    // Soft-expired cache hit. We can deliver the cached response,
                    // but we need to also send the request to the network for
                    // refreshing.
                    request.addMarker("cache-hit-refresh-needed");
                    request.setCacheEntry(entry);

                    // Mark the response as intermediate.
                    response.intermediate = true;

                    // Post the intermediate response back to the user and have
                    // the delivery then forward the request along to the network.
                    mDelivery.postResponse(request, response, new Runnable() {
                        @Override
                        public void run() {
                            try {
                                mNetworkQueue.put(request);
                            } catch (InterruptedException e) {
                                // Not much we can do about this.
                            }
                        }
                    });
                }

            } catch (InterruptedException e) {
                // We may have been interrupted because it was time to quit.
                if (mQuit) {
                    return;
                }
                continue;
            }
        }

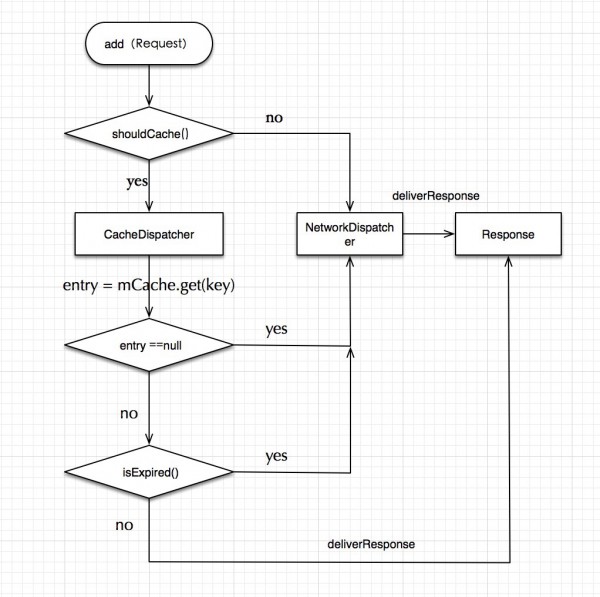

直接從緩存類Cache獲得，并經過幾次驗證，如果緩存合法則解析然后交給 UI線程分發出去。下面來看看具體的流程
這里寫圖片描述

存儲緩存
如果是第1次要求，或緩存已過期，肯定是沒法獲得到緩存的，這時候可根據上圖分析，將會進入網絡要求線程NetworkDispatcher，貯存緩存毫無疑問也是在這里面實現的。

        //省略部份代碼
                if (networkResponse.notModified && request.hasHadResponseDelivered()) {
                    request.finish("not-modified");
                    continue;
                }

                // Parse the response here on the worker thread.
                Response<?> response = request.parseNetworkResponse(networkResponse);
                request.addMarker("network-parse-complete");

                // Write to cache if applicable.
                // TODO: Only update cache metadata instead of entire record for 304s.如果需要緩存，并且用戶已把網絡要求的數據轉換成1份為緩存數據，則通過 Cache 類把緩存存儲。
                if (request.shouldCache() && response.cacheEntry != null) {
                    mCache.put(request.getCacheKey(), response.cacheEntry);
                    request.addMarker("network-cache-written");
                }

                // Post the response back.
                request.markDelivered();
                mDelivery.postResponse(request, response);
            } catch (VolleyError volleyError) {
                parseAndDeliverNetworkError(request, volleyError);
            } catch (Exception e) {
                VolleyLog.e(e, "Unhandled exception %s", e.toString());
                mDelivery.postError(request, new VolleyError(e));
            }
            //省略部份代碼

通過以上代碼可以知道，在網絡要求線程要求到數據以后，會交給用戶解析，并把數據轉換1份成緩存數據，通過 Cache 緩存操作類，把數據緩存起來。

網絡數據轉換成緩存數據
上面提到了，把網絡數據轉化成緩存數據，那末，volley 是如何轉換的？

     */
    public static Cache.Entry parseCacheHeaders(NetworkResponse response) {
        long now = System.currentTimeMillis();
        //獲得網絡要求數據的頭信息
        Map<String, String> headers = response.headers;

        long serverDate = 0;
        long serverExpires = 0;
        long softExpire = 0;
        long maxAge = 0;
        boolean hasCacheControl = false;

        String serverEtag = null;
        String headerValue;
        //從頭信息中獲得 Date 數據
        headerValue = headers.get("Date");
        if (headerValue != null) {
            serverDate = parseDateAsEpoch(headerValue);
        }
        //從頭信息中獲得 Cache-Control 數據，來控制緩存
        headerValue = headers.get("Cache-Control");
        if (headerValue != null) {
            hasCacheControl = true;
            String[] tokens = headerValue.split(",");
            for (int i = 0; i < tokens.length; i++) {
                String token = tokens[i].trim();
                if (token.equals("no-cache") || token.equals("no-store")) {
                    return null;
                } else if (token.startsWith("max-age=")) {
                    try {
                        maxAge = Long.parseLong(token.substring(8));
                    } catch (Exception e) {
                    }
                } else if (token.equals("must-revalidate") || token.equals("proxy-revalidate")) {
                    maxAge = 0;
                }
            }
        }

        headerValue = headers.get("Expires");
        if (headerValue != null) {
            serverExpires = parseDateAsEpoch(headerValue);
        }

        serverEtag = headers.get("ETag");

        // Cache-Control takes precedence over an Expires header, even if both exist and Expires
        // is more restrictive.
        if (hasCacheControl) {
            softExpire = now + maxAge * 1000;
        } else if (serverDate > 0 && serverExpires >= serverDate) {
            // Default semantic for Expire header in HTTP specification is softExpire.
            softExpire = now + (serverExpires - serverDate);
        }

        Cache.Entry entry = new Cache.Entry();
        entry.data = response.data;
        entry.etag = serverEtag;
        entry.softTtl = softExpire;
        entry.ttl = entry.softTtl;
        entry.serverDate = serverDate;
        entry.responseHeaders = headers;

        return entry;
    }

前面我們提到的緩存是不是過期和是不是需要刷新，都是通過 response 的頭部信息來判斷，但是在BasicNetwork中只實現了緩存是不是過期的操作，沒有實現緩存是不是需要刷新

    @Override
    public NetworkResponse performRequest(Request<?> request) throws VolleyError {
        long requestStart = SystemClock.elapsedRealtime();
        while (true) {
            HttpResponse httpResponse = null;
            byte[] responseContents = null;
            Map<String, String> responseHeaders = new HashMap<String, String>();
            try {
                // Gather headers.
                Map<String, String> headers = new HashMap<String, String>();
                addCacheHeaders(headers, request.getCacheEntry());
                httpResponse = mHttpStack.performRequest(request, headers);
                StatusLine statusLine = httpResponse.getStatusLine();
                int statusCode = statusLine.getStatusCode();

                responseHeaders = convertHeaders(httpResponse.getAllHeaders());
                //從這里開始設置緩存信息，如果設置了緩存的緩存時間，則把它添加到頭部信息中，但是沒有實現是不是需要刷新緩存的操作，如果有需要，也能夠在這里實現，這是就需要修改源碼。
                if(request.getCacheTime() != 0){
                    responseHeaders.put("Cache-Control","max-age=" + request.getCacheTime());
                }
                // Handle cache validation.
                if (statusCode == HttpStatus.SC_NOT_MODIFIED) {
                    return new NetworkResponse(HttpStatus.SC_NOT_MODIFIED,
                            request.getCacheEntry().data, responseHeaders, true);
                }

                responseContents = entityToBytes(httpResponse.getEntity());
                // if the request is slow, log it.
                long requestLifetime = SystemClock.elapsedRealtime() - requestStart;
                logSlowRequests(requestLifetime, request, responseContents, statusLine);

                if (statusCode != HttpStatus.SC_OK && statusCode != HttpStatus.SC_NO_CONTENT) {
                    throw new IOException();
                }
                return new NetworkResponse(statusCode, responseContents, responseHeaders, false);
            } catch (SocketTimeoutException e) {
                attemptRetryOnException("socket", request, new TimeoutError());
            } catch (ConnectTimeoutException e) {
                attemptRetryOnException("connection", request, new TimeoutError());
            } catch (MalformedURLException e) {
                throw new RuntimeException("Bad URL " + request.getUrl(), e);
            } catch (IOException e) {
                int statusCode = 0;
                NetworkResponse networkResponse = null;
                if (httpResponse != null) {
                    statusCode = httpResponse.getStatusLine().getStatusCode();
                } else {
                    throw new NoConnectionError(e);
                }
                VolleyLog.e("Unexpected response code %d for %s", statusCode, request.getUrl());
                if (responseContents != null) {
                    networkResponse = new NetworkResponse(statusCode, responseContents,
                            responseHeaders, false);
                    if (statusCode == HttpStatus.SC_UNAUTHORIZED ||
                            statusCode == HttpStatus.SC_FORBIDDEN) {
                        attemptRetryOnException("auth",
                                request, new AuthFailureError(networkResponse));
                    } else {
                        // TODO: Only throw ServerError for 5xx status codes.
                        throw new ServerError(networkResponse);
                    }
                } else {
                    throw new NetworkError(networkResponse);
                }
            }
        }
    }

如何使用緩存

根據上面分析不難發現，要使用緩存，得具有兩個條件，
1、啟用緩存

public final void setShouldCache(boolean shouldCache) {
        mShouldCache = shouldCache;
    }

不過這個條件默許情況下是開啟的。
2、設置緩存的時間

    public void setCacheTime(long cacheTime) {
        mCacheTime = cacheTime;
    }

這里 cacheTime 的單位是秒。
接下來看看具體用法

public class CacheRequestActivity extends ActionBarActivity {

    /*數據顯示的View*/
    private TextView mIdTxt,mNameTxt,mDownloadTxt,mLogoTxt,mVersionTxt ;
    /*彈出等待對話框*/
    private ProgressDialog mDialog ;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_get);
        mIdTxt = (TextView) findViewById(R.id.id_id) ;
        mNameTxt = (TextView) findViewById(R.id.id_name) ;
        mDownloadTxt = (TextView) findViewById(R.id.id_download) ;
        mLogoTxt = (TextView) findViewById(R.id.id_logo) ;
        mVersionTxt = (TextView) findViewById(R.id.id_version) ;
        mDialog = new ProgressDialog(this) ;
        mDialog.setMessage("get要求中...");
        mDialog.show();
        /*要求網絡獲得數據*/
        MiNongApi.CacheObjectMiNongApi("minongbang", new ResponseListener<TestBean>() {
            @Override
            public void onErrorResponse(VolleyError error) {
                mDialog.dismiss();
            }

            @Override
            public void onResponse(TestBean response) {
                Log.v("zgy","=======response======="+response) ;
                mDialog.dismiss();
                /*顯示數據*/
                mIdTxt.setText(response.getId() + "");
                mNameTxt.setText(response.getName());
                mDownloadTxt.setText(response.getDownload() + "");
                mLogoTxt.setText(response.getLogo());
                mVersionTxt.setText(response.getVersion() + "");
            }
        });
    }

}

cache api

    public static void CacheObjectMiNongApi(String value,ResponseListener listener){
        String url ;
        try {
            url = Constant.MinongHost +"?test="+ URLEncoder.encode(value, "utf⑻") ;
        } catch (UnsupportedEncodingException e) {
            e.printStackTrace();
            url = Constant.MinongHost +"?test="+ URLEncoder.encode(value) ;
        }
        Request request = new GetObjectRequest(url,new TypeToken<TestBean>(){}.getType(),listener) ;
        //請用緩存
        request.setShouldCache(true);
        //設置緩存時間10分鐘
        request.setCacheTime(10*60);
        VolleyUtil.getRequestQueue().add(request) ;
    }
