Android時鐘應用的定時框架分析
來源：程序員人生 發布時間：2014-10-10 08:00:00 閱讀次數：3369次
Android系統鬧鐘定時功能框架，總體來說就是用數據庫存儲定時數據，有一個狀態管理器來統一管理這些定時狀態的觸發和更新。在Andriod系統中實現定時功能，最終還是要用到系統提供的AlarmManager，只是當一個定時完成后怎么繼續處理，或者中間怎么更新定時的時間或者狀態，像鬧鐘這種應用程序，每天重復定時，或者一周選擇其中的幾天，鬧鐘響了延遲5分鐘再次響鈴，這時候就需要想一種好的辦法來讓管理這些數據和狀態，下面就分析一下Android系統鬧鐘的實現。
1、基本結構
Alarm
代表一條定時數據
AlarmInstance
代表一個定時項目的實例，一個AlarmInstance對應到一個Alarm，相比Alarm多存儲了一些狀態信息
AlarmStateManager
狀態管理器，對定時項目進行調度，添加、刪除、更改狀態，是一個BroadcastReciever，定時到點后發廣播到這里進行下一步處理
AlarmService
響應結果，也就是定時到達后要做的事，響鈴，停止響鈴
ClockDataHelper
里面創建了三個表，ALARMS_TABLE，INSTANCE_TABLE，CITIES_TABLE，前兩個分別對應到上面的Alarm和AlarmInstance。
private static void createAlarmsTable(SQLiteDatabase db) {
db.execSQL("CREATE TABLE " + ALARMS_TABLE_NAME + " (" +
ClockContract.AlarmsColumns._ID + " INTEGER PRIMARY KEY," +
ClockContract.AlarmsColumns.HOUR + " INTEGER NOT NULL, " +
ClockContract.AlarmsColumns.MINUTES + " INTEGER NOT NULL, " +
ClockContract.AlarmsColumns.DAYS_OF_WEEK + " INTEGER NOT NULL, " +
ClockContract.AlarmsColumns.ENABLED + " INTEGER NOT NULL, " +
ClockContract.AlarmsColumns.VIBRATE + " INTEGER NOT NULL, " +
ClockContract.AlarmsColumns.LABEL + " TEXT NOT NULL, " +
ClockContract.AlarmsColumns.RINGTONE + " TEXT, " +
ClockContract.AlarmsColumns.DELETE_AFTER_USE + " INTEGER NOT NULL DEFAULT 0);");
Log.i("Alarms Table created");
}
private static void createInstanceTable(SQLiteDatabase db) {
db.execSQL("CREATE TABLE " + INSTANCES_TABLE_NAME + " (" +
ClockContract.InstancesColumns._ID + " INTEGER PRIMARY KEY," +
ClockContract.InstancesColumns.YEAR + " INTEGER NOT NULL, " +
ClockContract.InstancesColumns.MONTH + " INTEGER NOT NULL, " +
ClockContract.InstancesColumns.DAY + " INTEGER NOT NULL, " +
ClockContract.InstancesColumns.HOUR + " INTEGER NOT NULL, " +
ClockContract.InstancesColumns.MINUTES + " INTEGER NOT NULL, " +
ClockContract.InstancesColumns.VIBRATE + " INTEGER NOT NULL, " +
ClockContract.InstancesColumns.LABEL + " TEXT NOT NULL, " +
ClockContract.InstancesColumns.RINGTONE + " TEXT, " +
ClockContract.InstancesColumns.ALARM_STATE + " INTEGER NOT NULL, " +
ClockContract.InstancesColumns.ALARM_ID + " INTEGER REFERENCES " +
ALARMS_TABLE_NAME + "(" + ClockContract.AlarmsColumns._ID + ") " +
"ON UPDATE CASCADE ON DELETE CASCADE" +
");");
Log.i("Instance table created");
}
這里說一下幾個特殊的字段，對于Alarm表，DAYS_OF_WEEK表示一周內需要定時的天（鬧鐘有個功能是選擇一周中的幾天），這里是個int值，用位來表示設置的天數，源碼中有個專門的類DaysOfWeek來存儲和處理。
AlarmInstance表中有一個ALARM_ID，關聯到一個Alarm，可以看到在AlarmInstance表里也有時間，為什么不和Alarm表合成一個表？應該是這樣的，Alarm表示原始的定時項，是一個基礎數據，而AlarmInstance則代表了一個使用中的定時項目，或者是一個已經激活的定時項目，它的時間是可以變化的，比如鬧鐘響了以后延時5分鐘再響，就需要改變這里的時間，而基礎數據不能變，還需要顯示在那里。ALARM_STATE代表了當前定時項目的狀態，具體調度都在AlarmStateManager中管理。
忘了在哪里看到的，“編程最重要的是設計數據結構，接下來是分解各種代碼塊”。數據結構是基礎，就像建筑里的鋼筋水泥磚瓦，有了基礎的材料后，剩下的工作就是對這些材料處理，也就是設計具體的處理邏輯。
2、具體的類分析
Alarm

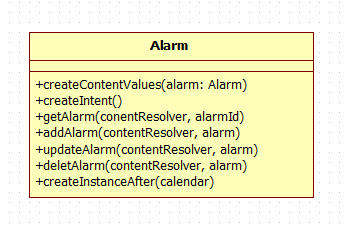

從上面也可以看出，Alarm類作為定時的基礎數據結構，主要是封裝了一些數據庫操作，完成增刪改查功能。額外有一個方法createInstanceAfter，根據自身來創建一個AlarmInstance實例。代碼如下
public AlarmInstance createInstanceAfter(Calendar time) {
Calendar nextInstanceTime = Calendar.getInstance();
nextInstanceTime.set(Calendar.YEAR, time.get(Calendar.YEAR));
nextInstanceTime.set(Calendar.MONTH, time.get(Calendar.MONTH));
nextInstanceTime.set(Calendar.DAY_OF_MONTH, time.get(Calendar.DAY_OF_MONTH));
nextInstanceTime.set(Calendar.HOUR_OF_DAY, hour);
nextInstanceTime.set(Calendar.MINUTE, minutes);
nextInstanceTime.set(Calendar.SECOND, 0);
nextInstanceTime.set(Calendar.MILLISECOND, 0);
// If we are still behind the passed in time, then add a day
if (nextInstanceTime.getTimeInMillis() <= time.getTimeInMillis()) {
nextInstanceTime.add(Calendar.DAY_OF_YEAR, 1);
}
// The day of the week might be invalid, so find next valid one
int addDays = daysOfWeek.calculateDaysToNextAlarm(nextInstanceTime);
if (addDays > 0) {
nextInstanceTime.add(Calendar.DAY_OF_WEEK, addDays);
}
AlarmInstance result = new AlarmInstance(nextInstanceTime, id);
result.mVibrate = vibrate;
result.mLabel = label;
result.mRingtone = alert;
return result;
}
AlarmInstance
AlarmInstance與Alarm很相似，像Alarm中的增刪改查操作在AlarmInstance中都有相似的方法。那有什么不同呢，就是上面說的AlarmInstance的時間是可以根據當前狀態改變的，也就多了時間的set和get方法。
public void setAlarmTime(Calendar calendar) {
mYear = calendar.get(Calendar.YEAR);
mMonth = calendar.get(Calendar.MONTH);
mDay = calendar.get(Calendar.DAY_OF_MONTH);
mHour = calendar.get(Calendar.HOUR_OF_DAY);
mMinute = calendar.get(Calendar.MINUTE);
}
/**
* Return the time when a alarm should fire.
*
* @return the time
*/
public Calendar getAlarmTime() {
Calendar calendar = Calendar.getInstance();
calendar.set(Calendar.YEAR, mYear);
calendar.set(Calendar.MONTH, mMonth);
calendar.set(Calendar.DAY_OF_MONTH, mDay);
calendar.set(Calendar.HOUR_OF_DAY, mHour);
calendar.set(Calendar.MINUTE, mMinute);
calendar.set(Calendar.SECOND, 0);
calendar.set(Calendar.MILLISECOND, 0);
return calendar;
}
AlarmStateManager
鬧鐘定時的核心邏輯就在這里，AlarmStateManager就是管理所有定時項目狀態的調度器。

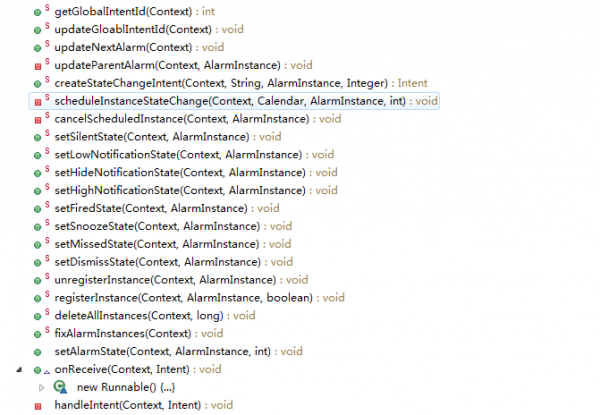

可以看到上面大多是static類型的方法，用于設置各種狀態值。
先看一下定時的幾種狀態：
SILENT_STATE，alarm被激活，但是不需要顯示任何東西，下一個狀態是LOW_NOTIFICATION_STATE；
LOW_NOTIFICATION_STATE，這個狀態表示alarm離觸發的時間不遠了，時間差是AlarmInstance.LOW_NOTIFICATION_HOUR_OFFSET=-2，也就是2個小時。下一個狀態會進入HIGH_NOTIFICATION_STATE，HIDE_NOTIFICATION_STATE，DISMISS_STATE；
HIDE_NOTIFICATION_STATE，這是一個暫時態，表示用戶想隱藏掉通知，這個狀態會一直持續到HIGH_NOTIFICATION_STATE；
HIGH_NOTIFICATION_STATE，這個狀態和LOW_NOTIFICATION_STATE相似，但不允許用戶隱藏通知，負責觸發FIRED_STATE或者DISMISS_STATE；
SNOOZED_STATE，像HIGH_NOTIFICATION_STATE，但是會增加一點定時的時間來完成延遲功能；
FIRED_STATE，表示響鈴狀態，會啟動AlarmService直到用戶將其變?yōu)镾NOOZED_STATE或者DISMISS_STATE，如果用戶放任不管，會之后進入MISSED_STATE；
MISSED_STATE，這個狀態在FIRED_STATE之后，會在通知欄給出一個提醒剛才響鈴了；
DISMISS_STATE，這個狀態表示定時結束了，會根據定時項目的設置判斷是否需要重復，從而決定要?jiǎng)h除這個項目還是繼續設定一個新的定時。
上面的 setXXXState 方法就是對這些狀態的處理，同時會規劃一個定時轉換到下一個狀態。比如setSilentState：
public static void setSilentState(Context context, AlarmInstance instance) {
Log.v("Setting silent state to instance " + instance.mId);
// Update alarm in db
ContentResolver contentResolver = context.getContentResolver();
instance.mAlarmState = AlarmInstance.SILENT_STATE;
AlarmInstance.updateInstance(contentResolver, instance);
// Setup instance notification and scheduling timers
AlarmNotifications.clearNotification(context, instance);
scheduleInstanceStateChange(context, instance.getLowNotificationTime(),
instance, AlarmInstance.LOW_NOTIFICATION_STATE);
}
更新AlarmInstance的信息，同時通過scheduleInstanceStateChange（）規劃下一個狀態：
private static void scheduleInstanceStateChange(Context context, Calendar time,
AlarmInstance instance, int newState) {
long timeInMillis = time.getTimeInMillis();
Log.v("Scheduling state change " + newState + " to instance " + instance.mId +
" at " + AlarmUtils.getFormattedTime(context, time) + " (" + timeInMillis + ")");
Intent stateChangeIntent = createStateChangeIntent(context, ALARM_MANAGER_TAG, instance,
newState);
PendingIntent pendingIntent = PendingIntent.getBroadcast(context, instance.hashCode(),
stateChangeIntent, PendingIntent.FLAG_UPDATE_CURRENT);
AlarmManager am = (AlarmManager) context.getSystemService(Context.ALARM_SERVICE);
if (Utils.isKitKatOrLater()) {
am.setExact(AlarmManager.RTC_WAKEUP, timeInMillis, pendingIntent);
} else {
am.set(AlarmManager.RTC_WAKEUP, timeInMillis, pendingIntent);
}
}
通過AlarmManager發起一個定時，定時的時間從調用處可以看到是有AlarmInstance得到的，比如在setSilentState()中的定時時間是instance.getLowNotificationTime()：
public Calendar getLowNotificationTime() {
Calendar calendar = getAlarmTime();
calendar.add(Calendar.HOUR_OF_DAY, LOW_NOTIFICATION_HOUR_OFFSET);
return calendar;
}
LOW_NOTIFICATION_HOUR_OFFSET值為-2，也就是在鬧鈴響之前的兩小時那一刻會發這個LOW_NOTIFICATION_STATE的廣播出來，AlarmStateManager接收到這個廣播處理再轉移到下一個。廣播的接收在onReciever方法中，
@Override
public void onReceive(final Context context, final Intent intent) {
final PendingResult result = goAsync();
final PowerManager.WakeLock wl = AlarmAlertWakeLock.createPartialWakeLock(context);
wl.acquire();
AsyncHandler.post(new Runnable() {
@Override
public void run() {
handleIntent(context, intent);
result.finish();
wl.release();
}
});
}
private void handleIntent(Context context, Intent intent) {
final String action = intent.getAction();
Log.v("AlarmStateManager received intent " + intent);
if (CHANGE_STATE_ACTION.equals(action)) {
Uri uri = intent.getData();
AlarmInstance instance = AlarmInstance.getInstance(context.getContentResolver(),
AlarmInstance.getId(uri));
if (instance == null) {
// Not a big deal, but it shouldn't happen
Log.e("Can not change state for unknown instance: " + uri);
return;
}
int globalId = getGlobalIntentId(context);
int intentId = intent.getIntExtra(ALARM_GLOBAL_ID_EXTRA, -1);
int alarmState = intent.getIntExtra(ALARM_STATE_EXTRA, -1);
if (intentId != globalId) {
Log.i("Ignoring old Intent. IntentId: " + intentId + " GlobalId: " + globalId +
" AlarmState: " + alarmState);
return;
}
if (alarmState >= 0) {
setAlarmState(context, instance, alarmState);
} else {
registerInstance(context, instance, true);
}
} else if (SHOW_AND_DISMISS_ALARM_ACTION.equals(action)) {
Uri uri = intent.getData();
AlarmInstance instance = AlarmInstance.getInstance(context.getContentResolver(),
AlarmInstance.getId(uri));
long alarmId = instance.mAlarmId == null ? Alarm.INVALID_ID : instance.mAlarmId;
Intent viewAlarmIntent = Alarm.createIntent(context, DeskClock.class, alarmId);
viewAlarmIntent.putExtra(DeskClock.SELECT_TAB_INTENT_EXTRA, DeskClock.ALARM_TAB_INDEX);
viewAlarmIntent.putExtra(AlarmClockFragment.SCROLL_TO_ALARM_INTENT_EXTRA, alarmId);
viewAlarmIntent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
context.startActivity(viewAlarmIntent);
setDismissState(context, instance);
}
}
}
在handleIntent方法中統一處理，狀態的分發在setAlarmState中：
public void setAlarmState(Context context, AlarmInstance instance, int state) {
switch(state) {
case AlarmInstance.SILENT_STATE:
setSilentState(context, instance);
break;
case AlarmInstance.LOW_NOTIFICATION_STATE:
setLowNotificationState(context, instance);
break;
case AlarmInstance.HIDE_NOTIFICATION_STATE:
setHideNotificationState(context, instance);
break;
case AlarmInstance.HIGH_NOTIFICATION_STATE:
setHighNotificationState(context, instance);
break;
case AlarmInstance.FIRED_STATE:
setFiredState(context, instance);
break;
case AlarmInstance.SNOOZE_STATE:
setSnoozeState(context, instance);
break;
case AlarmInstance.MISSED_STATE:
setMissedState(context, instance);
break;
case AlarmInstance.DISMISSED_STATE:
setDismissState(context, instance);
break;
default:
Log.e("Trying to change to unknown alarm state: " + state);
}
}
對沒一個state又轉移相應的setXXXState方法中，完成下一次狀態的轉換，形成一個定時的循環，直到在DISMISSED_STATE里停用或者刪除定時項目，如果需要重復則獲取下一次定時的時間。
整體的框架就是這樣，在AlarmStateManager里使用AlarmManager形成了一個定時的狀態機，不斷轉移到下一個狀態處理。
源碼在這里https://android.googlesource.com/platform/packages/apps/DeskClock/+/android-4.4.4_r2.0.1
