Java之美[從菜鳥到高手演練]之Linux下Hadoop的完全分布式安裝

來源：程序員人生發布時間：2015-03-02 08:30:10 閱讀次數：4859次

作者：2青

郵箱：xtfggef@gmail.com 微博：http://weibo.com/xtfggef

本來是想安裝1個單節點的環境就行了，后來按裝完了總覺得不夠過癮，因而今天繼續研究1下，來1個完全散布式的集群安裝。用到的軟件和上1篇單節點安裝Hadoop1樣，以下：

Ubuntu 14.10 64 Bit Server Edition
Hadoop2.6.0
JDK 1.7.0_71
ssh
rsync

準備環境

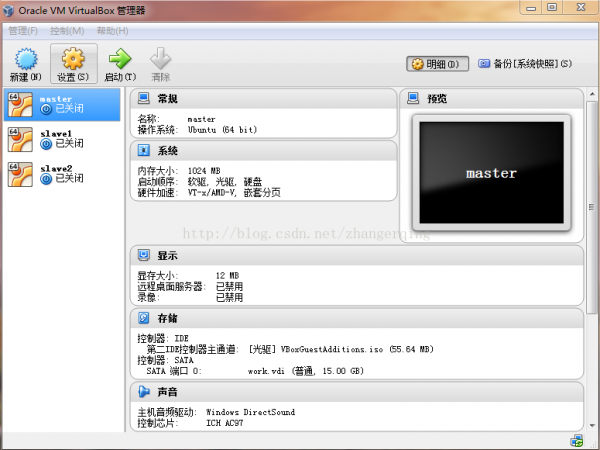

仍然是VirtualBox + Ubuntu 14.10 64 Bit，只不過這次是3個節點，話不多說，下面開始配置準備，基礎環境就不再贅述了，包括安裝JDK，ssh，rsync等，可以參考上1篇。

master 192.168.1.118 nameNode
slave1 192.168.1.189 dataNode1
slave2 192.168.1.116 dataNode2

修改每一個機器的hosts文件，在/etc/hosts文件末尾添加以下配置：

192.168.1.118 master 192.168.1.189 slave1 192.168.1.116 slave2

2015年1月15日補充：

1. 修改每一個機器的hostname，在/etc/hostsname下，將master機器的hostname改成master，以此類推。

2. 賦予當前用戶管理員權限。

3. 將IP地址改成靜態IP，通過修改/etc/network/interfaces文件，添加以下配置：

auto eth0 iface eth0 inet static address 192.168.1.118 netmask 255.255.255.0 gateway 192.168.1.1

修改完需重啟才能生效。

配置namenode對datanode的無密鑰訪問

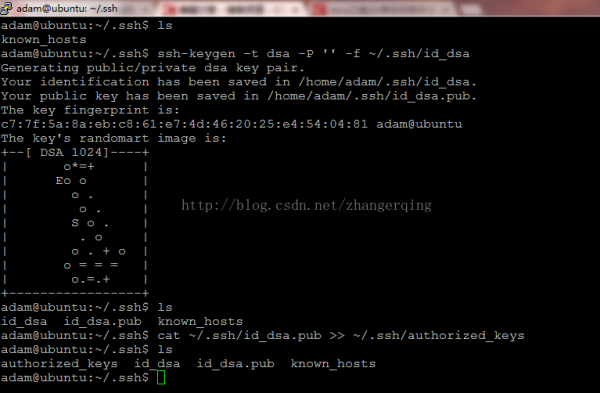

直接在namenode控制臺履行以下兩行命令：

$ ssh-keygen -t dsa -P '' -f ~/.ssh/id_dsa $ cat ~/.ssh/id_dsa.pub >> ~/.ssh/authorized_keys

進入namenode的用戶根目錄，再進入.ssh目錄查看生成的文件：authorized_keys, id_dsa, id_dsa.pub

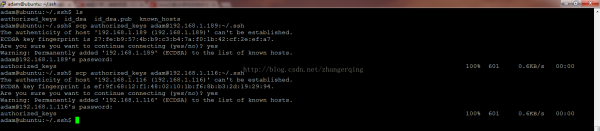

將authorized_keys文件分發到個datanode節點上：

驗證：

ssh 192.168.1.189

ssh 192.168.1.116

ssh slave1

ssh slave2

如果不需要密碼直接進入則OK，否則重新來配。

安裝Hadoop

1. 從官網下載hadoop 2.6.0 tar.gz文件，然后解壓到用戶目錄：tar -zxvf hadoop⑵.6.0.tar.gz.

2. 在解壓后的hadoop⑵.6.0文件夾里創建tmp文件夾。

3. 配置環境變量

添加以下配置信息到/etc/profile文件末尾（每臺機器都要配置）。

# set hadoop path export HADOOP_HOME=/home/adam/hadoop⑵.6.0 export PATH=$PATH:$HADOOP_HOME/bin

履行. /etc/profile或source /etc/profile使配置生效，然后履行hadoop version查看hadoop版本并且驗證環境變量是不是配置成功。

4. 配置hadoop，進入目錄/home/adam/hadoop⑵.6.0/etc/hadoop

a>. 編輯core-site.xml

<configuration> <property> <name>hadoop.tmp.dir</name> <value>/home/adam/hadoop⑵.6.0/tmp</value> <description>Abase for other temporary directories.</description> </property> <property> <name>fs.defaultFS</name> <value>hdfs://master:9000</value> </property> <property> <name>io.file.buffer.size</name> <value>4096</value> </property> </configuration>

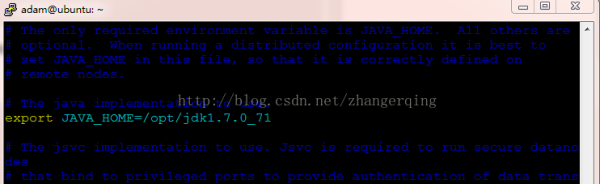

b>. 在hadoop-env.sh和yarn-env.sh里配置JAVA_HOME環境變量以下

3. 編輯hdfs-site.xml

<configuration> <property> <name>dfs.nameservices</name> <value>hadoop-cluster</value> </property> <property> <name>dfs.namenode.secondary.http-address</name> <value>master:50090</value> </property> <property> <name>dfs.namenode.name.dir</name> <value>file:///home/adam/hadoop⑵.6.0/dfs/name</value> </property> <property> <name>dfs.datanode.data.dir</name> <value>file:///home/adam/hadoop⑵.6.0/dfs/data</value> </property> <property> <name>dfs.replication</name> <value>1</value> </property> <property> <name>dfs.webhdfs.enabled</name> <value>true</value> </property> </configuration>

4. 編輯mapred-site.xml

<configuration> <property> <name>mapreduce.framework.name</name> <value>yarn</value> </property> <property> <name>mapreduce.jobtracker.http.address</name> <value>master:50030</value> </property> <property> <name>mapreduce.jobhistory.address</name> <value>master:10020</value> </property> <property> <name>mapreduce.jobhistory.webapp.address</name> <value>master:19888</value> </property> </configuration>

5. 編輯yarn-site.xml

<configuration>  <property> <name>yarn.nodemanager.aux-services</name> <value>mapreduce_shuffle</value> </property> <property> <name>yarn.resourcemanager.address</name> <value>master:8032</value> </property> <property> <name>yarn.resourcemanager.scheduler.address</name> <value>master:8030</value> </property> <property> <name>yarn.resourcemanager.resource-tracker.address</name> <value>master:8031</value> </property> <property> <name>yarn.resourcemanager.admin.address</name> <value>master:8033</value> </property> <property> <name>yarn.resourcemanager.webapp.address</name> <value>master:8088</value> </property> </configuration>

6. 編輯slaves文件添加以下兩行：

slave1

slave2

7. 將hadoop文件夾復制到另個slave結點上

啟動Hadoop

1. 格式化namenode

adam@ubuntu:~/hadoop⑵.6.0/bin$ ./hdfs namenode -format 15/01/14 19:29:58 INFO namenode.NameNode: STARTUP_MSG: /************************************************************ STARTUP_MSG: Starting NameNode STARTUP_MSG: host = ubuntu/60.191.124.254 STARTUP_MSG: args = [-format] STARTUP_MSG: version = 2.6.0 STARTUP_MSG: classpath = /home/adam/hadoop⑵.6.0/etc/hadoop:/home/adam/hadoop⑵.6.0/share/hadoop/common/lib/slf4j-log4j12⑴.7.5.jar:/home/adam/hadoop⑵.6.0/share/hadoop/common/lib/jsr305⑴.3.9.jar:/home/adam/h ... jar:/home/adam/hadoop⑵.6.0/share/hadoop/mapreduce/hadoop-mapreduce-client-app⑵.6.0.jar:/home/adam/hadoop⑵.6.0/share/hadoop/mapreduce/hadoop-mapreduce-client-core⑵.6.0.jar:/home/adam/hadoop⑵.6.0/share/hadoop/mapreduce/hadoop-mapreduce-client-shuffle⑵.6.0.jar:/home/adam/hadoop⑵.6.0/contrib/capacity-scheduler/*.jar STARTUP_MSG: build = https://git-wip-us.apache.org/repos/asf/hadoop.git -r e3496499ecb8d220fba99dc5ed4c99c8f9e33bb1; compiled by 'jenkins' on 2014⑴1⑴3T21:10Z STARTUP_MSG: java = 1.7.0_71 ************************************************************/ 15/01/14 19:29:58 INFO namenode.NameNode: registered UNIX signal handlers for [TERM, HUP, INT] 15/01/14 19:29:58 INFO namenode.NameNode: createNameNode [-format] Formatting using clusterid: CID⑶f81e813⑹04e⑷d60⑼3b1⑼794d7c7c079 15/01/14 19:30:10 INFO namenode.FSNamesystem: No KeyProvider found. 15/01/14 19:30:10 INFO namenode.FSNamesystem: fsLock is fair:true 15/01/14 19:30:10 INFO blockmanagement.DatanodeManager: dfs.block.invalidate.limit=1000 15/01/14 19:30:10 INFO blockmanagement.DatanodeManager: dfs.namenode.datanode.registration.ip-hostname-check=true 15/01/14 19:30:10 INFO blockmanagement.BlockManager: dfs.namenode.startup.delay.block.deletion.sec is set to 000:00:00:00.000 15/01/14 19:30:10 INFO blockmanagement.BlockManager: The block deletion will start around 2015 Jan 14 19:30:10 15/01/14 19:30:10 INFO util.GSet: Computing capacity for map BlocksMap 15/01/14 19:30:10 INFO util.GSet: VM type = 64-bit 15/01/14 19:30:10 INFO util.GSet: 2.0% max memory 966.7 MB = 19.3 MB 15/01/14 19:30:10 INFO util.GSet: capacity = 2^21 = 2097152 entries 15/01/14 19:30:10 INFO blockmanagement.BlockManager: dfs.block.access.token.enable=false 15/01/14 19:30:10 INFO blockmanagement.BlockManager: defaultReplication = 1 15/01/14 19:30:10 INFO blockmanagement.BlockManager: maxReplication = 512 15/01/14 19:30:10 INFO blockmanagement.BlockManager: minReplication = 1 15/01/14 19:30:10 INFO blockmanagement.BlockManager: maxReplicationStreams = 2 15/01/14 19:30:10 INFO blockmanagement.BlockManager: shouldCheckForEnoughRacks = false 15/01/14 19:30:10 INFO blockmanagement.BlockManager: replicationRecheckInterval = 3000 15/01/14 19:30:10 INFO blockmanagement.BlockManager: encryptDataTransfer = false 15/01/14 19:30:10 INFO blockmanagement.BlockManager: maxNumBlocksToLog = 1000 15/01/14 19:30:10 INFO namenode.FSNamesystem: fsOwner = adam (auth:SIMPLE) 15/01/14 19:30:10 INFO namenode.FSNamesystem: supergroup = supergroup 15/01/14 19:30:10 INFO namenode.FSNamesystem: isPermissionEnabled = true 15/01/14 19:30:10 INFO namenode.FSNamesystem: Determined nameservice ID: hadoop-cluster 15/01/14 19:30:10 INFO namenode.FSNamesystem: HA Enabled: false 15/01/14 19:30:10 INFO namenode.FSNamesystem: Append Enabled: true 15/01/14 19:30:16 INFO util.GSet: Computing capacity for map INodeMap 15/01/14 19:30:16 INFO util.GSet: VM type = 64-bit 15/01/14 19:30:16 INFO util.GSet: 1.0% max memory 966.7 MB = 9.7 MB 15/01/14 19:30:16 INFO util.GSet: capacity = 2^20 = 1048576 entries 15/01/14 19:30:16 INFO namenode.NameNode: Caching file names occuring more than 10 times 15/01/14 19:30:16 INFO util.GSet: Computing capacity for map cachedBlocks 15/01/14 19:30:16 INFO util.GSet: VM type = 64-bit 15/01/14 19:30:16 INFO util.GSet: 0.25% max memory 966.7 MB = 2.4 MB 15/01/14 19:30:16 INFO util.GSet: capacity = 2^18 = 262144 entries 15/01/14 19:30:16 INFO namenode.FSNamesystem: dfs.namenode.safemode.threshold-pct = 0.9990000128746033 15/01/14 19:30:16 INFO namenode.FSNamesystem: dfs.namenode.safemode.min.datanodes = 0 15/01/14 19:30:16 INFO namenode.FSNamesystem: dfs.namenode.safemode.extension = 30000 15/01/14 19:30:16 INFO namenode.FSNamesystem: Retry cache on namenode is enabled 15/01/14 19:30:16 INFO namenode.FSNamesystem: Retry cache will use 0.03 of total heap and retry cache entry expiry time is 600000 millis 15/01/14 19:30:16 INFO util.GSet: Computing capacity for map NameNodeRetryCache 15/01/14 19:30:16 INFO util.GSet: VM type = 64-bit 15/01/14 19:30:16 INFO util.GSet: 0.029999999329447746% max memory 966.7 MB = 297.0 KB 15/01/14 19:30:16 INFO util.GSet: capacity = 2^15 = 32768 entries 15/01/14 19:30:16 INFO namenode.NNConf: ACLs enabled? false 15/01/14 19:30:16 INFO namenode.NNConf: XAttrs enabled? true 15/01/14 19:30:16 INFO namenode.NNConf: Maximum size of an xattr: 16384 15/01/14 19:30:16 INFO namenode.FSImage: Allocated new BlockPoolId: BP⑴507698623⑹0.191.124.254⑴421235016468 15/01/14 19:30:16 INFO common.Storage: Storage directory /home/adam/hadoop⑵.6.0/dfs/name has been successfully formatted. 15/01/14 19:30:17 INFO namenode.NNStorageRetentionManager: Going to retain 1 images with txid >= 0 15/01/14 19:30:17 INFO util.ExitUtil: Exiting with status 0 15/01/14 19:30:17 INFO namenode.NameNode: SHUTDOWN_MSG: /************************************************************ SHUTDOWN_MSG: Shutting down NameNode at ubuntu/60.191.124.254 ************************************************************/

2. 啟動Hadoop

hadoop/sbin start-all.sh或start-dfs.sh & start-yard.sh

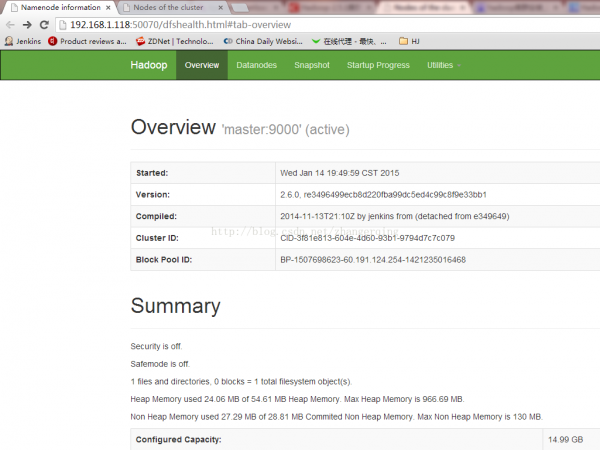

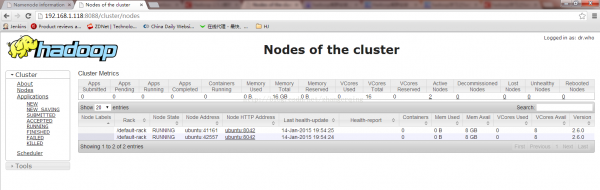

3. 驗證安裝
