POJ 3808 Malfatti Circles（計算幾何）
來源：程序員人生 發布時間：2015-05-19 08:12:53 閱讀次數：2636次
Malfatti Circles
| Time Limit: 1000MS |
|
Memory Limit: 65536K |
| Total Submissions: 250 |
|
Accepted: 125 |
|
Special Judge |
Description
The con?guration of three circles packed inside a triangle such that each circle is tangent to the other two circles and to two of the edges of the triangle has been studied by many mathematicians for more than two centuries. Existence and uniqueness of such
circles for an arbitrary triangle are easy to prove. Many methods of numerical calculation or geometric construction of such circles from an arbitrarily given triangle have been discovered. Today, such circles are called the Malfatti circles.

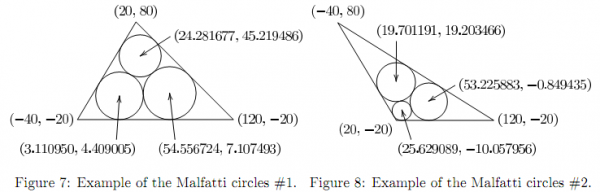

Figure 7 illustrates an example. The Malfatti circles of the triangle with the vertices (20, 80), (⑷0, ⑵0) and (120, ⑵0) are approximately
the circle with the center (24.281677, 45.219486) and the radius 21.565935,
the circle with the center (3.110950, 4.409005) and the radius 24.409005, and
the circle with the center (54.556724, 7.107493) and the radius 27.107493.
Figure 8 illustrates another example. The Malfatti circles of the triangle with the vertices (20, ⑵0), (120, ⑵0) and (⑷0, 80) are approximately
the circle with the center (25.629089, ⑴0.057956) and the radius 9.942044,
the circle with the center (53.225883, -0.849435) and the radius 19.150565, and
the circle with the center (19.701191, 19.203466) and the radius 19.913790.
Your mission is to write a program to calculate the radii of the Malfatti circles of the given triangles.
Input
The input is a sequence of datasets. A dataset is a line containing six integers x1, y1, x2, y2, x3 and y3 in this order, separated by a space. The coordinates of the vertices of the given triangle are (x1, y1), (x2, y2) and (x3, y3), respectively. You can
assume that the vertices form a triangle counterclockwise. You can also assume that the following two conditions hold.
All of the coordinate values are greater than ⑴000 and less than 1000.
None of the Malfatti circles of the triangle has a radius less than 0.1.
The end of the input is indicated by a line containing six zeros separated by a space.
Output
For each input dataset, three decimal fractions r1, r2 and r3 should be printed in a line in this order separated by a space. The radii of the Malfatti circles nearest to the vertices with the coordinates (x1, y1), (x2, y2) and (x3, y3) should be r1, r2 and
r3, respectively.
None of the output values may have an error greater than 0.0001. No extra character should appear in the output.
Sample Input
20 80 ⑷0 ⑵0 120 ⑵0
20 ⑵0 120 ⑵0 ⑷0 80
0 0 1 0 0 1
0 0 999 1 ⑼99 1
897 ⑼16 847 ⑼72 890 ⑼25
999 999 ⑼99 ⑼98 ⑼98 ⑼99
⑼99 ⑼99 999 ⑼99 0 731
⑼99 ⑼99 999 ⑷64 ⑷64 999
979 ⑷36 ⑼55 ⑶37 157 ⑷39
0 0 0 0 0 0
Sample Output
21.565935 24.409005 27.107493
9.942044 19.150565 19.913790
0.148847 0.207107 0.207107
0.125125 0.499750 0.499750
0.373458 0.383897 0.100456
0.706768 0.353509 0.353509
365.638023 365.638023 365.601038
378.524085 378.605339 378.605339
21.895803 22.052921 5.895714
題意：給出1個3角形的3個頂點的坐標，求3角形的3個內切圓，它們兩兩相切，并且每一個頂點附近的圓和連接這個頂點的兩條邊也相切。求著3個內切圓的半徑。

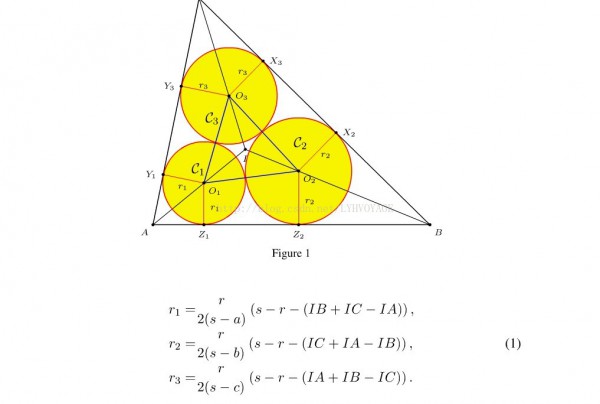

分析：套公式。
其中r為3角形內切圓的半徑，s為半周長。
#include <cstdio>
#include <cmath>
using namespace std;
struct Point {
double x, y;
} A, B, C, I;
double get_dis(Point p1, Point p2) {
return sqrt((p1.x - p2.x) * (p1.x - p2.x) + (p1.y - p2.y) * (p1.y - p2.y));
}
int main() {
while(~scanf("%lf%lf%lf%lf%lf%lf", &A.x, &A.y, &B.x, &B.y, &C.x, &C.y)) {
if(A.x == 0 && A.y == 0 && B.x == 0 && B.y == 0 && C.x == 0 && C.y == 0) break;
double a = get_dis(B, C);
double b = get_dis(A, C);
double c = get_dis(A, B);
double s = (a + b + c) / 2; // 半周長
I.x = (a * A.x + b * B.x + c * C.x) / (a + b + c);
I.y = (a * A.y + b * B.y + c * C.y) / (a + b + c); // 內切圓圓心坐標
double r = sqrt((s - a) * (s - b) * (s - c) / s); // 內切圓半徑
double IA = get_dis(A, I);
double IB = get_dis(B, I);
double IC = get_dis(C, I);
double r1 = r / (2 * (s - a)) * (s - r + IA - IB - IC);
double r2 = r / (2 * (s - b)) * (s - r + IB - IA - IC);
double r3 = r / (2 * (s - c)) * (s - r + IC - IA - IB);
printf("%.6lf %.6lf %.6lf
", r1, r2, r3);
}
return 0;
}
更多解釋請見http://en.wikipedia.org/wiki/Malfatti_circles
