《coredump問題原理探究》Linux x86版6.4節虛函數
來源：程序員人生 發布時間：2015-03-02 08:42:22 閱讀次數：3171次
在上1節已探究了類的成員變量的排列，現在看1下虛函數表和成員變量的排列及虛函數之間的排列.
先看1個例子:
1 #include <stdio.h>
2 class xuzhina_dump_c06_s3
3 {
4 private:
5 int m_a;
6 public:
7 xuzhina_dump_c06_s3() { m_a = 0; }
8 virtual void inc() { m_a++; }
9 virtual void dec() { m_a--; }
10 virtual void print()
11 {
12 printf( "%d
", m_a );
13 }
14 };
15
16 int main()
17 {
18 xuzhina_dump_c06_s3* test = new xuzhina_dump_c06_s3;
19 if ( test != NULL )
20 {
21 test->inc();
22 test->inc();
23 test->print();
24 }
25 return 0;
26 }
匯編代碼：
(gdb) disassemble main
Dump of assembler code for function main:
0x08048560 <+0>: push %ebp
0x08048561 <+1>: mov %esp,%ebp
0x08048563 <+3>: push %ebx
0x08048564 <+4>: and $0xfffffff0,%esp
0x08048567 <+7>: sub $0x20,%esp
0x0804856a <+10>: movl $0x8,(%esp)
0x08048571 <+17>: call 0x8048450 <_Znwj@plt>
0x08048576 <+22>: mov %eax,%ebx
0x08048578 <+24>: mov %ebx,(%esp)
0x0804857b <+27>: call 0x80485cc <_ZN19xuzhina_dump_c06_s3C2Ev>
0x08048580 <+32>: mov %ebx,0x1c(%esp)
0x08048584 <+36>: cmpl $0x0,0x1c(%esp)
0x08048589 <+41>: je 0x80485c1 <main+97>
0x0804858b <+43>: mov 0x1c(%esp),%eax
0x0804858f <+47>: mov (%eax),%eax
0x08048591 <+49>: mov (%eax),%eax
0x08048593 <+51>: mov 0x1c(%esp),%edx
0x08048597 <+55>: mov %edx,(%esp)
0x0804859a <+58>: call *%eax
0x0804859c <+60>: mov 0x1c(%esp),%eax
0x080485a0 <+64>: mov (%eax),%eax
0x080485a2 <+66>: mov (%eax),%eax
0x080485a4 <+68>: mov 0x1c(%esp),%edx
0x080485a8 <+72>: mov %edx,(%esp)
0x080485ab <+75>: call *%eax
0x080485ad <+77>: mov 0x1c(%esp),%eax
0x080485b1 <+81>: mov (%eax),%eax
0x080485b3 <+83>: add $0x8,%eax
0x080485b6 <+86>: mov (%eax),%eax
0x080485b8 <+88>: mov 0x1c(%esp),%edx
0x080485bc <+92>: mov %edx,(%esp)
0x080485bf <+95>: call *%eax
0x080485c1 <+97>: mov $0x0,%eax
0x080485c6 <+102>: mov -0x4(%ebp),%ebx
0x080485c9 <+105>: leave
0x080485ca <+106>: ret
End of assembler dump.
由上面代碼可知，履行完了構造函數，test的m_a的值，會變成0。且由上面匯編可以看到this指針在調用構造函數前后，是放在ebx寄存器。
在0x08048578，0x08048580都打斷點，看1下this指針?biāo)赶虻牡刂肥欠袷沁@樣的結果。
(gdb) tbreak *0x08048578
Temporary breakpoint 1 at 0x8048578
(gdb) tbreak *0x08048580
Temporary breakpoint 2 at 0x8048580
(gdb) r
Starting program: /home/buckxu/work/6/3/xuzhina_dump_c6_s3
Temporary breakpoint 1, 0x08048578 in main ()
(gdb) x /4x $ebx
0x804a008: 0x00000000 0x00000000 0x00000000 0x00020ff1
(gdb) c
Continuing.
Temporary breakpoint 2, 0x08048580 in main ()
(gdb) x /4x $ebx
0x804a008: 0x080486d0 0x00000000 0x00000000 0x00020ff1
非常奇怪，依照上1節的內容，地址0x804a008應當寄存m_a，會初始化為0.究竟類xuzhina_dump_c06_s3的構造函數做了甚么事情？而0x080486d0是甚么東西來的？
看1下類xuzhina_dump_c06_s3的構造函數：
(gdb) disassemble _ZN19xuzhina_dump_c06_s3C2Ev
Dump of assembler code for function _ZN19xuzhina_dump_c06_s3C2Ev:
0x080485cc <+0>: push %ebp
0x080485cd <+1>: mov %esp,%ebp
0x080485cf <+3>: mov 0x8(%ebp),%eax
0x080485d2 <+6>: movl $0x80486d0,(%eax)
0x080485d8 <+12>: mov 0x8(%ebp),%eax
0x080485db <+15>: movl $0x0,0x4(%eax)
0x080485e2 <+22>: pop %ebp
0x080485e3 <+23>: ret
End of assembler dump.
由構造函數的匯編可知，0x80486d0這個值是在構造函數設置，但還不清楚是甚么東西。而
0x080485d8 <+12>: mov 0x8(%ebp),%eax
0x080485db <+15>: movl $0x0,0x4(%eax)
卻恰好對應了
7 xuzhina_dump_c06_s3() { m_a = 0; }
也就是說，類xuzhina_dump_c06_s3的第1個成員變量m_a放在偏移this指針的地方，那末0x80486d0是甚么東西，占了m_a的位置呢？
重新看1下main函數的匯編：
(gdb) disassemble main
Dump of assembler code for function main:
0x08048560 <+0>: push %ebp
0x08048561 <+1>: mov %esp,%ebp
0x08048563 <+3>: push %ebx
0x08048564 <+4>: and $0xfffffff0,%esp
0x08048567 <+7>: sub $0x20,%esp
0x0804856a <+10>: movl $0x8,(%esp)
0x08048571 <+17>: call 0x8048450 <_Znwj@plt>
0x08048576 <+22>: mov %eax,%ebx
0x08048578 <+24>: mov %ebx,(%esp)
0x0804857b <+27>: call 0x80485cc <_ZN19xuzhina_dump_c06_s3C2Ev>
=> 0x08048580 <+32>: mov %ebx,0x1c(%esp)
0x08048584 <+36>: cmpl $0x0,0x1c(%esp)
0x08048589 <+41>: je 0x80485c1 <main+97>
0x0804858b <+43>: mov 0x1c(%esp),%eax
0x0804858f <+47>: mov (%eax),%eax
0x08048591 <+49>: mov (%eax),%eax
0x08048593 <+51>: mov 0x1c(%esp),%edx
0x08048597 <+55>: mov %edx,(%esp)
0x0804859a <+58>: call *%eax
0x0804859c <+60>: mov 0x1c(%esp),%eax
0x080485a0 <+64>: mov (%eax),%eax
0x080485a2 <+66>: mov (%eax),%eax
0x080485a4 <+68>: mov 0x1c(%esp),%edx
0x080485a8 <+72>: mov %edx,(%esp)
0x080485ab <+75>: call *%eax
0x080485ad <+77>: mov 0x1c(%esp),%eax
0x080485b1 <+81>: mov (%eax),%eax
0x080485b3 <+83>: add $0x8,%eax
0x080485b6 <+86>: mov (%eax),%eax
0x080485b8 <+88>: mov 0x1c(%esp),%edx
0x080485bc <+92>: mov %edx,(%esp)
0x080485bf <+95>: call *%eax
0x080485c1 <+97>: mov $0x0,%eax
0x080485c6 <+102>: mov -0x4(%ebp),%ebx
0x080485c9 <+105>: leave
0x080485ca <+106>: ret
End of assembler dump.
由
0x0804857b <+27>: call 0x80485cc <_ZN19xuzhina_dump_c06_s3C2Ev>
0x08048580 <+32>: mov %ebx,0x1c(%esp)
可知，esp+0x1c用來寄存this指針。
再看1下這幾段指令：
0x0804858b <+43>: mov 0x1c(%esp),%eax
0x0804858f <+47>: mov (%eax),%eax
0x08048591 <+49>: mov (%eax),%eax
0x08048593 <+51>: mov 0x1c(%esp),%edx
0x08048597 <+55>: mov %edx,(%esp)
0x0804859a <+58>: call *%eax
0x0804859c <+60>: mov 0x1c(%esp),%eax
0x080485a0 <+64>: mov (%eax),%eax
0x080485a2 <+66>: mov (%eax),%eax
0x080485a4 <+68>: mov 0x1c(%esp),%edx
0x080485a8 <+72>: mov %edx,(%esp)
0x080485ab <+75>: call *%eax
0x080485ad <+77>: mov 0x1c(%esp),%eax
0x080485b1 <+81>: mov (%eax),%eax
0x080485b3 <+83>: add $0x8,%eax
0x080485b6 <+86>: mov (%eax),%eax
0x080485b8 <+88>: mov 0x1c(%esp),%edx
0x080485bc <+92>: mov %edx,(%esp)
0x080485bf <+95>: call *%eax
由因而順序結構，可知，這3段指令恰好對應
21 test->inc();
22 test->inc();
23 test->print();
分析1下第3段匯編：
0x080485ad <+77>: mov 0x1c(%esp),%eax
0x080485b1 <+81>: mov (%eax),%eax
0x080485b3 <+83>: add $0x8,%eax
0x080485b6 <+86>: mov (%eax),%eax
0x080485b8 <+88>: mov 0x1c(%esp),%edx
0x080485bc <+92>: mov %edx,(%esp)
0x080485bf <+95>: call *%eax
可見eax正好是放著print這個虛函數的指針。而這個指針終究是由esp+0x1c來獲得。由
0x080485ad <+77>: mov 0x1c(%esp),%eax
0x080485b1 <+81>: mov (%eax),%eax
可知，正好是從this指針的第1個成員取出來的，也就是說，這個成員是虛函數表指針。根據上面的分析，可知這個虛函數表指針的值是0x80486d0。來驗證1下，它是否是虛函數表指針。
(gdb) x /4x 0x80486d0
0x80486d0 <_ZTV19xuzhina_dump_c06_s3+8>: 0x080485e4 0x080485f8 0x0804860c 0x75783931
(gdb) shell c++filt _ZTV19xuzhina_dump_c06_s3
vtable for xuzhina_dump_c06_s3
(gdb) info symbol 0x080485e4
xuzhina_dump_c06_s3::inc() in section .text of /home/buckxu/work/6/3/xuzhina_dump_c6_s3
(gdb) info symbol 0x080485f8
xuzhina_dump_c06_s3::dec() in section .text of /home/buckxu/work/6/3/xuzhina_dump_c6_s3
(gdb) info symbol 0x0804860c
xuzhina_dump_c06_s3::print() in section .text of /home/buckxu/work/6/3/xuzhina_dump_c6_s3
可見，0x80486d0所指向正是虛函數表，且里面的表項順序正好和虛函數的聲明順序1樣。

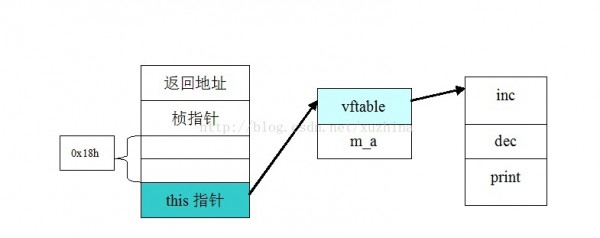

由上面分析，test所指向的對象的內存布局以下圖：
