DROP TABLE IF EXISTS `resc`;
CREATE TABLE `resc` (
  `id` bigint(20) NOT NULL DEFAULT '0',
  `name` varchar(50) DEFAULT NULL,
  `res_type` varchar(50) DEFAULT NULL,
  `res_string` varchar(200) DEFAULT NULL,
  `descn` varchar(200) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of resc
-- ----------------------------
INSERT INTO `resc` VALUES ('1', '', 'URL', '/adminPage.jsp', '管理員頁面');
INSERT INTO `resc` VALUES ('2', '', 'URL', '/index.jsp', '');
INSERT INTO `resc` VALUES ('3', null, 'URL', '/test.jsp', '測試頁面');

-- ----------------------------
-- Table structure for resc_role
-- ----------------------------
DROP TABLE IF EXISTS `resc_role`;
CREATE TABLE `resc_role` (
  `resc_id` bigint(20) NOT NULL DEFAULT '0',
  `role_id` bigint(20) NOT NULL DEFAULT '0',
  PRIMARY KEY (`resc_id`,`role_id`),
  KEY `fk_resc_role_role` (`role_id`),
  CONSTRAINT `fk_resc_role_role` FOREIGN KEY (`role_id`) REFERENCES `role` (`id`),
  CONSTRAINT `fk_resc_role_resc` FOREIGN KEY (`resc_id`) REFERENCES `resc` (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of resc_role
-- ----------------------------
INSERT INTO `resc_role` VALUES ('1', '1');
INSERT INTO `resc_role` VALUES ('2', '1');
INSERT INTO `resc_role` VALUES ('2', '2');
INSERT INTO `resc_role` VALUES ('3', '3');

-- ----------------------------
-- Table structure for role
-- ----------------------------
DROP TABLE IF EXISTS `role`;
CREATE TABLE `role` (
  `id` bigint(20) NOT NULL DEFAULT '0',
  `name` varchar(50) DEFAULT NULL,
  `descn` varchar(200) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of role
-- ----------------------------
INSERT INTO `role` VALUES ('1', 'ROLE_ADMIN', '管理員角色');
INSERT INTO `role` VALUES ('2', 'ROLE_USER', '用戶角色');
INSERT INTO `role` VALUES ('3', 'ROLE_TEST', '測試角色');

-- ----------------------------
-- Table structure for t_c3p0
-- ----------------------------
DROP TABLE IF EXISTS `t_c3p0`;
CREATE TABLE `t_c3p0` (
  `a` char(1) DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of t_c3p0
-- ----------------------------

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user` (
  `id` bigint(20) NOT NULL DEFAULT '0',
  `username` varchar(50) DEFAULT NULL,
  `password` varchar(50) DEFAULT NULL,
  `status` int(11) DEFAULT NULL,
  `descn` varchar(200) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of user
-- ----------------------------
INSERT INTO `user` VALUES ('1', 'admin', 'admin', '1', '管理員');
INSERT INTO `user` VALUES ('2', 'user', 'user', '1', '用戶');
INSERT INTO `user` VALUES ('3', 'test', 'test', '1', '測試');

-- ----------------------------
-- Table structure for user_role
-- ----------------------------
DROP TABLE IF EXISTS `user_role`;
CREATE TABLE `user_role` (
  `user_id` bigint(20) NOT NULL DEFAULT '0',
  `role_id` bigint(20) NOT NULL DEFAULT '0',
  PRIMARY KEY (`user_id`,`role_id`),
  KEY `fk_user_role_role` (`role_id`),
  CONSTRAINT `fk_user_role_role` FOREIGN KEY (`role_id`) REFERENCES `role` (`id`),
  CONSTRAINT `fk_user_role_user` FOREIGN KEY (`user_id`) REFERENCES `user` (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of user_role
-- ----------------------------
INSERT INTO `user_role` VALUES ('1', '1');
INSERT INTO `user_role` VALUES ('1', '2');
INSERT INTO `user_role` VALUES ('2', '2');
INSERT INTO `user_role` VALUES ('3', '3');

2 實現從數據庫中讀取資源信息

Spring Security需要的數據不過就是pattern和access類似鍵值對的數據，就像配置文件中寫的那樣：

<intercept-url pattern="/login.jsp" access="IS_AUTHENTICATED_ANONYMOUSLY" />1
<intercept-url pattern="/admin.jsp" access="ROLE_ADMIN" />
<intercept-url pattern="/**" access="ROLE_USER" />

其實當項目啟動時，Spring Security所做的就是在系統初始化時，將以上XML中的信息轉換為特定的數據格式，而框架中其他組件可以利用這些特定格式的數據，用于控制以后的驗證操作。現在我們將這些信息存儲在數據庫中，因此就要想辦法從數據庫中查詢這些數據，所以根據security數據的需要，只需要以下sql語句就能夠：

select re.res_string,r.name from role r,resc re,resc_role rr where
		r.id=rr.role_id and re.id=rr.resc_id

這樣的格式正是security所需要的數據。

3 構建1個數據庫的操作的類

package com.zmc.demo;

import java.sql.ResultSet;
import java.sql.SQLException;

import java.util.ArrayList;
import java.util.Collection;
import java.util.LinkedHashMap;
import java.util.List;

import javax.sql.DataSource;


import org.springframework.jdbc.core.support.JdbcDaoSupport;
import org.springframework.jdbc.object.MappingSqlQuery;

import org.springframework.security.access.ConfigAttribute;
import org.springframework.security.access.SecurityConfig;
import org.springframework.security.web.access.intercept.DefaultFilterInvocationSecurityMetadataSource;
import org.springframework.security.web.util.AntPathRequestMatcher;
import org.springframework.security.web.util.RequestMatcher;


/**
 * @classname JdbcRequestMapBulider
 * @author ZMC
 * @time 2017⑴⑴0
 * 查詢資源和角色，并構建RequestMap
 */
public class JdbcRequestMapBulider
    extends JdbcDaoSupport{
	//查詢資源和權限關系的sql語句
    private String resourceQuery = "";

    public String getResourceQuery() {
		return resourceQuery;
	}

    //查詢資源
    public List<Resource> findResources() {
        ResourceMapping resourceMapping = new ResourceMapping(getDataSource(),
                resourceQuery);
        return resourceMapping.execute();
    }

    //拼接RequestMap
    public LinkedHashMap<RequestMatcher, Collection<ConfigAttribute>> buildRequestMap() {
        LinkedHashMap<RequestMatcher, Collection<ConfigAttribute>> requestMap = new LinkedHashMap<>();

        List<Resource> resourceList = this.findResources();
        for (Resource resource : resourceList) {
			RequestMatcher requestMatcher = this.getRequestMatcher(resource.getUrl());
			List<ConfigAttribute> list = new ArrayList<ConfigAttribute>();
			list.add(new SecurityConfig(resource.getRole()));
			requestMap.put(requestMatcher, list);
		}
        return requestMap;
    }
    //通過1個字符串地址構建1個AntPathRequestMatcher對象
    protected RequestMatcher getRequestMatcher(String url) {
        return new AntPathRequestMatcher(url);
    }

    public void setResourceQuery(String resourceQuery) {
        this.resourceQuery = resourceQuery;
    }

    /**
     * @classname Resource
     * @author ZMC
     * @time 2017⑴⑴0
     * 資源內部類
     */
    private class Resource {
        private String url;//資源訪問的地址
        private String role;//所需要的權限

        public Resource(String url, String role) {
            this.url = url;
            this.role = role;
        }

        public String getUrl() {
            return url;
        }

        public String getRole() {
            return role;
        }
    }

    private class ResourceMapping extends MappingSqlQuery {
        protected ResourceMapping(DataSource dataSource,
            String resourceQuery) {
            super(dataSource, resourceQuery);
            compile();
        }
        //對結果集進行封裝處理
        protected Object mapRow(ResultSet rs, int rownum)
            throws SQLException {
            String url = rs.getString(1);
            String role = rs.getString(2);
            Resource resource = new Resource(url, role);
            return resource;
        }
    }


}

resourceQuery是查詢數據的sql語句，該屬性在配置bean的時候傳入便可。

內部創建了1個resource來封裝數據。

getRequestMatcher方法就是用來創建RequestMatcher對象的

buildRequestMap方法用來最后拼接成LinkedHashMap<RequestMatcher, Collection<ConfigAttribute>>共security使用。

4 替換原有功能的切入點

在將這部之前，先得了解大概下security的運行進程，security實現控制的功能其實就是通過1系列的攔截器來實現的，當用戶登陸的時候，會被AuthenticationProcessingFilter攔截，調用AuthenticationManager的實現類，同時AuthenticationManager會調用ProviderManager來獲得用戶驗證信息，其中不同的Provider調用的服務不同，由于這些信息可以是在數據庫上，可以是在LDAP服務器上，可以是xml配置文件上等，這個例子中就是為數據庫；如果驗證通過后會將用戶的權限信息放到spring的全局緩存SecurityContextHolder中，以備后面訪問資源時使用。當訪問資源，訪問url時，會通過AbstractSecurityInterceptor攔截器攔截，其中會調用FilterInvocationSecurityMetadataSource的方法來獲得被攔截url所需的全部權限，其中FilterInvocationSecurityMetadataSource的經常使用的實現類為DefaultFilterInvocationSecurityMetadataSource，這個類中有個很關鍵的東西就是requestMap，也就是我們上面所得到的數據，在調用授權管理器AccessDecisionManager，這個授權管理器會通過spring的全局緩存SecurityContextHolder獲得用戶的權限信息，還會獲得被攔截的url和被攔截url所需的全部權限，然后根據所配的策略，如果權限足夠，則返回，權限不夠則報錯并調用權限不足頁面。

根據源碼debug跟蹤得出，其實資源權限關系就放在DefaultFilterInvocationSecurityMetadataSource的requestMap，中的，這個requestMap就是我們JdbcRequestMapBulider.buildRequestMap()方法所需要的數據類型，因此，順氣自然就想到了我們自定義1個類繼承FilterInvocationSecurityMetadataSource接口，將數據查出的數據放到requestMap中去。制定類MyFilterInvocationSecurityMetadataSource繼承FilterInvocationSecurityMetadataSource和InitializingBean接口。

package com.zmc.demo;

import java.util.Collection;
import java.util.HashSet;
import java.util.List;
import java.util.Map;
import java.util.Set;

import javax.servlet.http.HttpServletRequest;

import org.springframework.beans.factory.InitializingBean;
import org.springframework.security.access.ConfigAttribute;
import org.springframework.security.web.FilterInvocation;
import org.springframework.security.web.access.intercept.FilterInvocationSecurityMetadataSource;
import org.springframework.security.web.util.RequestMatcher;


/**
 * @classname MyFilterInvocationSecurityMetadataSource
 * @author ZMC
 * @time 2017⑴⑴0
 */
public class MyFilterInvocationSecurityMetadataSource implements
		FilterInvocationSecurityMetadataSource, InitializingBean {

	private final static List<ConfigAttribute> NULL_CONFIG_ATTRIBUTE = null;
	// 資源權限集合
	private Map<RequestMatcher, Collection<ConfigAttribute>> requestMap;

	//查找數據庫權限和資源關系
	private JdbcRequestMapBulider builder;

	/*
	 * (non-Javadoc)
	 * @see
	 * org.springframework.security.access.SecurityMetadataSource#getAttributes
	 * (java.lang.Object)
	 * 更具訪問資源的地址查找所需要的權限
	 */
	@Override
	public Collection<ConfigAttribute> getAttributes(Object object)
			throws IllegalArgumentException {
		final HttpServletRequest request = ((FilterInvocation) object)
				.getRequest();

		Collection<ConfigAttribute> attrs = NULL_CONFIG_ATTRIBUTE;
		for (Map.Entry<RequestMatcher, Collection<ConfigAttribute>> entry : requestMap
				.entrySet()) {
			if (entry.getKey().matches(request)) {
				attrs = entry.getValue();
				break;
			}
		}
		return attrs;
	}

	/*
	 * (non-Javadoc)
	 *
	 * @see org.springframework.security.access.SecurityMetadataSource#
	 * getAllConfigAttributes()
	 * 獲得所有的權限
	 */
	@Override
	public Collection<ConfigAttribute> getAllConfigAttributes() {
		Set<ConfigAttribute> allAttributes = new HashSet<ConfigAttribute>();
		for (Map.Entry<RequestMatcher, Collection<ConfigAttribute>> entry : requestMap
				.entrySet()) {
			allAttributes.addAll(entry.getValue());
		}
		System.out.println("總共有這些權限："+allAttributes.toString());
		return allAttributes;
	}
	/*
	 * (non-Javadoc)
	 *
	 * @see
	 * org.springframework.security.access.SecurityMetadataSource#supports(java
	 * .lang.Class)
	 */
	@Override
	public boolean supports(Class<?> clazz) {
		return FilterInvocation.class.isAssignableFrom(clazz);
	}
	//綁定requestMap
	protected Map<RequestMatcher, Collection<ConfigAttribute>> bindRequestMap() {

		return builder.buildRequestMap();
	}

	/*
	 * (non-Javadoc)
	 *
	 * @see
	 * org.springframework.beans.factory.InitializingBean#afterPropertiesSet()
	 */
	@Override
	public void afterPropertiesSet() throws Exception {
		this.requestMap = this.bindRequestMap();
	}

	public void refreshResuorceMap() {
		this.requestMap = this.bindRequestMap();
	}

	//get方法
	public JdbcRequestMapBulider getBuilder() {
		return builder;
	}

	//set方法
	public void setBuilder(JdbcRequestMapBulider builder) {
		this.builder = builder;
	}

}

requestMap這個屬性就是用來寄存資源權限的集合

builder為JdbcRequestMapBulider類型，用來查找數據庫權限和資源關系

其他的代碼中都有詳細的注釋

4 配置

<?xml version="1.0" encoding="UTF⑻"?>
<beans:beans xmlns="http://www.springframework.org/schema/security"
	xmlns:beans="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
    					http://www.springframework.org/schema/beans/spring-beans⑶.0.xsd
    					http://www.springframework.org/schema/context
    					http://www.springframework.org/schema/context/spring-context⑶.1.xsd
                		http://www.springframework.org/schema/tx
                		http://www.springframework.org/schema/tx/spring-tx⑶.0.xsd
                		http://www.springframework.org/schema/security
                		http://www.springframework.org/schema/security/spring-security.xsd">

	<http pattern="/login.jsp" security="none"></http>
	<http auto-config="false">
		<form-login login-page="/login.jsp" default-target-url="/index.jsp"
			authentication-failure-url="/login.jsp?error=true" />
		<logout invalidate-session="true" logout-success-url="/login.jsp"
			logout-url="/j_spring_security_logout" />
		<!-- 通過配置custom-filter來增加過濾器，before="FILTER_SECURITY_INTERCEPTOR"表示在SpringSecurity默許的過濾器之前履行。 -->
		<custom-filter ref="filterSecurityInterceptor" before="FILTER_SECURITY_INTERCEPTOR" />
	</http>

	<!-- 數據源 -->
	<beans:bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource"
		destroy-method="close">
		<!-- 此為c3p0在spring中直接配置datasource c3p0是1個開源的JDBC連接池 -->
		<beans:property name="driverClass" value="com.mysql.jdbc.Driver" />
		<beans:property name="jdbcUrl"
			value="jdbc:mysql://localhost:3306/springsecuritydemo?useUnicode=true&characterEncoding=UTF⑻" />
		<beans:property name="user" value="root" />
		<beans:property name="password" value="" />
		<beans:property name="maxPoolSize" value="50"></beans:property>
		<beans:property name="minPoolSize" value="10"></beans:property>
		<beans:property name="initialPoolSize" value="10"></beans:property>
		<beans:property name="maxIdleTime" value="25000"></beans:property>
		<beans:property name="acquireIncrement" value="1"></beans:property>
		<beans:property name="acquireRetryAttempts" value="30"></beans:property>
		<beans:property name="acquireRetryDelay" value="1000"></beans:property>
		<beans:property name="testConnectionOnCheckin" value="true"></beans:property>
		<beans:property name="idleConnectionTestPeriod" value="18000"></beans:property>
		<beans:property name="checkoutTimeout" value="5000"></beans:property>
		<beans:property name="automaticTestTable" value="t_c3p0"></beans:property>
	</beans:bean>



	<beans:bean id="builder" class="com.zmc.demo.JdbcRequestMapBulider">
		<beans:property name="dataSource" ref="dataSource" />
		<beans:property name="resourceQuery"
		value="select re.res_string,r.name from role r,resc re,resc_role rr where
		r.id=rr.role_id and re.id=rr.resc_id" />
	</beans:bean>


	<!-- 認證過濾器 -->
	<beans:bean id="filterSecurityInterceptor"
		class="org.springframework.security.web.access.intercept.FilterSecurityInterceptor">
		<!-- 用戶具有的權限 -->
		<beans:property name="accessDecisionManager" ref="accessDecisionManager" />
		<!-- 用戶是不是具有所要求資源的權限 -->
		<beans:property name="authenticationManager" ref="authenticationManager" />
		<!-- 資源與權限對應關系 -->
		<beans:property name="securityMetadataSource" ref="securityMetadataSource" />
	</beans:bean>

	<!-- 授權管理器 -->
	<beans:bean class="com.zmc.demo.MyAccessDecisionManager" id="accessDecisionManager">
	</beans:bean>
	<!--認證管理-->
	<authentication-manager alias="authenticationManager">
		<authentication-provider>
			<jdbc-user-service data-source-ref="dataSource" id="usersService"
				users-by-username-query="select username,password,status as enabled from user where username = ?"
				authorities-by-username-query="select user.username,role.name from user,role,user_role
	   	        					where user.id=user_role.user_id and
	   	        					user_role.role_id=role.id and user.username=?" />
		</authentication-provider>
	</authentication-manager>
	<!--自定義的切入點-->
	<beans:bean id="securityMetadataSource"
		class="com.zmc.demo.MyFilterInvocationSecurityMetadataSource">
	    <beans:property name="builder" ref="builder"></beans:property>
	</beans:bean>


</beans:beans>

package com.zmc.demo;

import java.util.Collection;
import java.util.Iterator;

import org.springframework.security.access.AccessDecisionManager;
import org.springframework.security.access.AccessDeniedException;
import org.springframework.security.access.ConfigAttribute;
import org.springframework.security.authentication.InsufficientAuthenticationException;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.GrantedAuthority;

/**
 * @classname MyAccessDecisionManager
 * @author ZMC
 * @time 2017⑴⑴0
 *
 */
public class MyAccessDecisionManager implements AccessDecisionManager  {



	/* (non-Javadoc)
	 * @see org.springframework.security.access.AccessDecisionManager#decide(org.springframework.security.core.Authentication, java.lang.Object, java.util.Collection)
	 * 該方法決定該權限是不是有權限訪問該資源，其實object就是1個資源的地址，authentication是當前用戶的
	 * 對應權限，如果沒登陸就為游客，登陸了就是該用戶對應的權限
	 */
	@Override
	public void decide(Authentication authentication, Object object,
			Collection<ConfigAttribute> configAttributes)
			throws AccessDeniedException, InsufficientAuthenticationException {
		if(configAttributes == null) {
            return;
        }
        //所要求的資源具有的權限(1個資源對多個權限)
        Iterator<ConfigAttribute> iterator = configAttributes.iterator();
        while(iterator.hasNext()) {
            ConfigAttribute configAttribute = iterator.next();
            //訪問所要求資源所需要的權限
            String needPermission = configAttribute.getAttribute();
            System.out.println("訪問"+object.toString()+"需要的權限是：" + needPermission);
            //用戶所具有的權限authentication
            Collection<? extends GrantedAuthority> authorities = authentication.getAuthorities();
            for(GrantedAuthority ga : authorities) {
                if(needPermission.equals(ga.getAuthority())) {
                    return;
                }
            }
        }
        //沒有權限
        throw new AccessDeniedException(" 沒有權限訪問！ ");

	}

	@Override
	public boolean supports(ConfigAttribute attribute) {
		// TODO Auto-generated method stub
		return true;
	}

	@Override
	public boolean supports(Class<?> clazz) {
		// TODO Auto-generated method stub
		return true;
	}



}

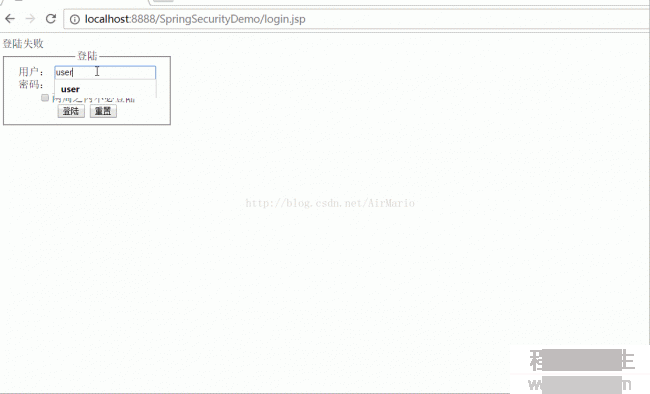

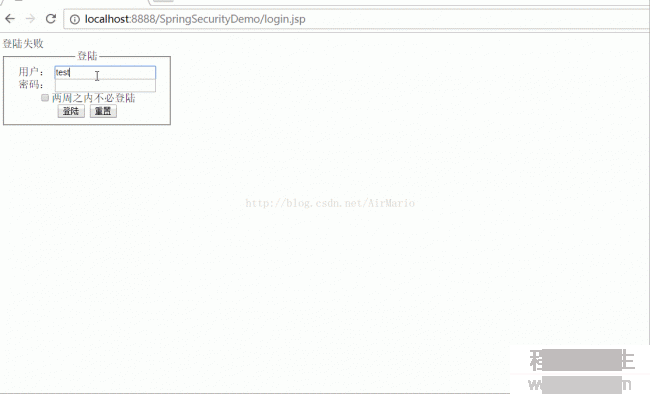

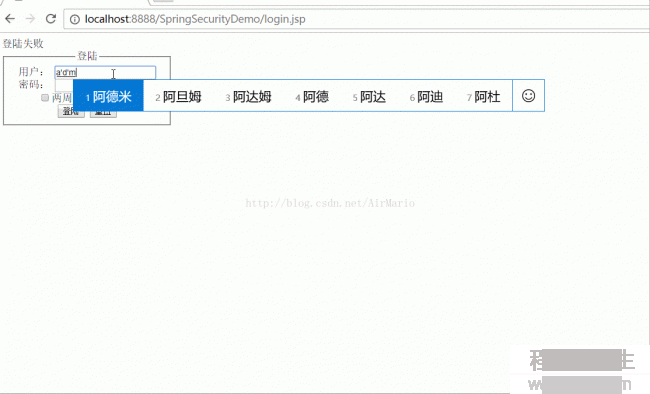

5 結果

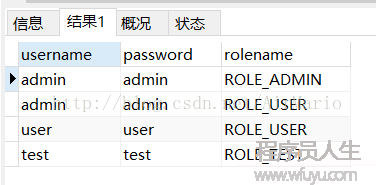

用戶對應的角色，和角色能訪問的資源

admin能訪問的頁面有adminPage.jsp、index.jsp；user能訪問的有index.jsp；test能訪問的有test.jsp。
