Spring技術入門（六）

來源：程序員人生發布時間：2015-03-17 09:13:38 閱讀次數：3320次

Spring Web MVC
官方文檔的介紹：
The Spring Web model-view-controller (MVC) framework is designed around a DispatcherServlet that dispatches requests to handlers, with configurable handler mappings, view resolution, locale, time zone and theme resolution as well as support for uploading files. The default handler is based on the @Controller and @RequestMapping annotations, offering a wide range of flexible handling methods.
要想深入理解還需要多看官方文檔，多實踐操作才行，這里只是簡單的介紹哈，對我們?nèi)腴T來講只要了解這么多就能夠了。
Spring Web MVC最核心的幾個幾部份包括：
前端控制器：DispatcherServlet;
利用控制器：HandlerMapping(處理映照)、ViewResolver(視圖解析)；
頁面控制器：ModelAndView
1般我們用到這幾個就能夠了，固然復雜的還要了解許多其他的。
下面我們來寫1個小例子：
新建1個項目，然后了加入以下的jar包：
所需jar包
新建HelloController.java

package cn.ailot.web;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
@Controller
@RequestMapping("/spring")
public class HelloController{
    @RequestMapping("/hello.form")
    public String execute() throws Exception{
        System.out.println("履行HelloController");
        //這里返回的hello就是試圖解析器里面的hello.jsp頁面
        return "hello";
    }
}

然后在src文件夾下面新建1個名為sping-mvc.xml的文件，代碼以下：

<?xml version="1.0" encoding="UTF⑻"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xmlns:util="http://www.springframework.org/schema/util"
 xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/util
        http://www.springframework.org/schema/util/spring-util.xsd">
    <!-- 開啟@RequestMapping注解映照 -->
    <mvc:annotation-driven/>
    <!--開啟組件掃描定義-->
    <context:component-scan base-package="cn.ailot.web"></context:component-scan>
   <!-- 定義視圖解析器ViewResolver -->
    <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/"></property>
        <property name="suffix" value=".jsp"></property>
    </bean>
</beans>

接下來配置web.xml文件：

<?xml version="1.0" encoding="UTF⑻"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0">
  <display-name>springmvc</display-name>
  <welcome-file-list>
    <welcome-file>index.jsp</welcome-file>
  </welcome-file-list>
  <!-- 處理編碼問題 -->
  <filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
        <param-name>encoding</param-name>
        <param-value>UTF⑻</param-value>
    </init-param>
  </filter>
  <!-- 加載sping配置文件 -->
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:spring-mvc.xml</param-value>
  </context-param>

  <servlet>
    <servlet-name>springmvc</servlet-name>
    <servlet-class>
    org.springframework.web.servlet.DispatcherServlet
    </servlet-class>
    <!--啟動容器的時候初始化改servlet-->
    <load-on-startup>1</load-on-startup>
  </servlet>
  <!--servlet映照-->
  <servlet-mapping>
    <servlet-name>springmvc</servlet-name>
    <url-pattern>*.form</url-pattern>
  </servlet-mapping>
</web-app>

現在就能夠啟動服務試試，看能否正常啟動，如果可以就表示配置沒錯。
地址欄里輸入：http://localhost:8080/springmvc/spring/hello.form

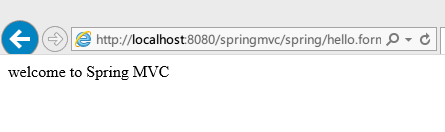

會看到hello.jsp的內容：
運行結果

以上就是1個簡單的Spring MVC的例子。
下面我們來做1個登錄的案例，Sping MVC接受參數有好多種方法，最經常使用到的有：
1、HttpServletRequest獲得；
2、@RequestParam注解；
3、封裝成實體參數。
下面我們來1個1個的實現，
實體user.java

package cn.ailot.entity;

public class User {

    private int id;
    private String name;
    private String pwd;
    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getPwd() {
        return pwd;
    }

    public void setPwd(String pwd) {
        this.pwd = pwd;
    }
}

接口UserDao.java

package cn.ailot.dao;

import cn.ailot.entity.User;

/**
 * 用戶數據訪問接口
 * @author litao
 *
 */
public interface UserDao {

    /**
     * 根據用戶名查找系統用戶
     * @param name
     * @return
     */
    public User findByName(String name);

}

異常捕獲：
用戶名或密碼錯：
NameOrPwdException.java

package cn.ailot.service;

public class NameOrPwdException extends Exception {

    public NameOrPwdException(){}

    public NameOrPwdException(String message){
        super(message);
    }

    public NameOrPwdException(Throwable cause){
        super(cause);
    }

    public NameOrPwdException(String message,Throwable cause){
        super(message,cause);
    }
}

空值異常：
NullParamException.java

package cn.ailot.service;

public class NullParamException extends Exception{

    public NullParamException(){}

    public NullParamException(String message){
        super(message);
    }

    public NullParamException(String message,Throwable cause){
        super(message,cause);
    }

}

業務實現UserService.java

package cn.ailot.service;

import javax.annotation.Resource;

import org.springframework.stereotype.Service;

import cn.ailot.dao.UserDao;
import cn.ailot.entity.User;

@Service
public class UserService  {

    @Autowired
    private UserDao userDao;

    /**
     * 登錄系統
     * @throws NameOrPwdException
     * @throws NullParamException
     */
    public User login(String name,String pwd) throws NameOrPwdException, NullParamException{
        if(name==null||name.equals("") || pwd == null|| pwd.equals("")){
            throw new NullParamException("登錄參數不能為空！");
        }
        User user = userDao.findByName(name);
        if(user != null && pwd.equals(user.getPwd())){
            return user;
        }
        throw new NameOrPwdException("用戶名或密碼毛病");
    }
}

配置數據庫連接：
db.properties

driver=com.mysql.jdbc.Driver
url=jdbc:mysql://127.0.0.1:3306/test
user=root
pwd=root

數據庫腳本：

-- ----------------------------
-- Table structure for users
-- ----------------------------
DROP TABLE IF EXISTS `users`;
CREATE TABLE `users` (
  `id` varchar(10) NOT NULL,
  `name` varchar(10) DEFAULT NULL,
  `pwd` varchar(10) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of users
-- ----------------------------
INSERT INTO `users` VALUES ('1', 'admin', 'admin');

spring-mvc.xml配置文件

<?xml version="1.0" encoding="UTF⑻"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xmlns:util="http://www.springframework.org/schema/util"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/util
        http://www.springframework.org/schema/util/spring-util.xsd">
     <!-- 實例化本地數據庫連接參數 -->
    <util:properties id="jdbcProps" location="classpath:db.properties"/>
    <!-- 開啟@RequestMapping注解映照 -->
    <mvc:annotation-driven/>
    <!--開啟組件掃描定義-->
    <context:component-scan base-package="cn.ailot"></context:component-scan>

    <!-- 定義視圖解析器ViewResolver -->
    <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/"></property>
        <property name="suffix" value=".jsp"></property>
    </bean>
</beans>

創建數據庫連接：

package cn.ailot.dao;

import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.SQLException;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

@Component
public class JdbcDataSource{

    private String driver;

    @Value("#{jdbcProps.url}")
    private String url;

    @Value("#{jdbcProps.user}")
    private String user;

    @Value("#{jdbcProps.pwd}")
    private String pwd;

    public String getDriver() {
        return driver;
    }
    /*必須寫在set方法上，否則注入無效*/
    @Value("#{jdbcProps.driver}")
    public void setDriver(String driver) {
        try{
            Class.forName(driver);
            this.driver = driver;
        }catch(Exception e){
            throw new RuntimeException(e);
        }
    }

    public String getUrl() {
        return url;
    }

    public void setUrl(String url) {
        this.url = url;
    }

    public String getUser() {
        return user;
    }

    public void setUser(String user) {
        this.user = user;
    }

    public String getPwd() {
        return pwd;
    }

    public void setPwd(String pwd) {
        this.pwd = pwd;
    }

    public Connection getConnection() throws SQLException{
        Connection conn = DriverManager.getConnection(url,user,pwd);
        return conn;
    }

    public void close(Connection conn){
        if(conn!=null){
            try {
                conn.close();
            } catch (Exception e) {
                // TODO: handle exception
                e.printStackTrace();
            }
        }
    }

}

履行數據庫操作：
MysqlUserDao.java

package cn.ailot.dao;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;

import cn.ailot.entity.User;

@Repository("userDao")  //必須指定Bean ID,否則默許加載的是mysqlUserDao
public class MysqlUserDao implements UserDao{

    @Autowired
    private JdbcDataSource dataSource;

    /**
     * 根據唯1用戶名查詢系統用戶，如果沒有找到用戶信息返回null
     */
    @Override
    public User findByName(String name) {
        // TODO Auto-generated method stub
        System.out.println("利用JDBC技術");
        String sql = "select id,name,pwd from users where name=?";
        Connection conn = null;
        try {
            conn = dataSource.getConnection();
            PreparedStatement ps = conn.prepareStatement(sql);
            ps.setString(1, name);
            ResultSet rs = ps.executeQuery();
            User user = null;
            while(rs.next()){
                user = new User();
                user.setId(rs.getInt("id"));
                user.setName(rs.getString("name"));
                user.setPwd(rs.getString("pwd"));
            }
            rs.close();
            ps.close();
            return user;
        } catch (Exception e) {
            // TODO: handle exception
            throw new RuntimeException(e);
        }finally{
            dataSource.close(conn);
        }
    }

}

接下來寫1個JUnit測試，
TestCase.java

package cn.ailot.test;

import java.util.Properties;

import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

import cn.ailot.dao.JdbcDataSource;
import cn.ailot.entity.User;
import cn.ailot.service.UserService;

public class TestCase {

    @Test
    public void testUserService() throws Exception{
        String cfg = "spring-mvc.xml";
        ApplicationContext ac = new ClassPathXmlApplicationContext(cfg);
        //打印加載的bean名稱
        System.out.println(java.util.Arrays.toString(ac.getBeanDefinitionNames()));
        Properties obj = ac.getBean("jdbcProps",Properties.class);
        JdbcDataSource ds = ac.getBean("jdbcDataSource",JdbcDataSource.class);
        System.out.println(obj);
        System.out.println(ds);
        System.out.println(ds.getConnection());
        UserService service = ac.getBean("userService",UserService.class);
        User user = service.login("admin", "admin");
        System.out.println(user);
    }
}

然后右鍵->Run As->JUnit Test

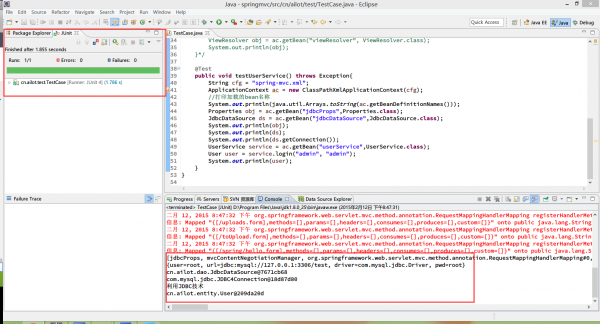

如果代碼無誤，會出現以下顯示：
結果顯示
接下就要構建登錄的具體方法了（類似struts中的action）：
LoginController.java
（同時寫了3種接受參數的方法）

package cn.ailot.controller;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;

import cn.ailot.entity.User;
import cn.ailot.service.NameOrPwdException;
import cn.ailot.service.NullParamException;
import cn.ailot.service.UserService;

@Controller
@RequestMapping("/login")
public class LoginController{

    @Resource   //要求sping注入資源userService
    private UserService userService;

    @RequestMapping("/login.form")
    public String loginForm(){
        //可以向表單傳遞1些參數
        return "loginForm"; //映照到loginForm.jsp
    }

    /**
     * 利用HttpServletRequest對象進行傳參
     * @param req
     * @return
     */
    @RequestMapping("/loginAction1.form")
    //spring MVC自動參數注入HttpServletRequest
    public String checLogin1(HttpServletRequest req){
        System.out.println("--方法1--");
        //優點，直接簡潔，缺點，需要自己處理數據類型轉換
        String name = req.getParameter("name");
        String pwd = req.getParameter("pwd");
        System.out.println(name);
        System.out.println(pwd);
        try {
            User user = userService.login(name, pwd);
            //登錄成功將登錄信息保存到當前會話中
            req.getSession().setAttribute("user", user);
            return "success";   //映照到登錄成功的success.jsp
        } catch (NameOrPwdException e) {
            // TODO: handle exception
            e.printStackTrace();
            req.setAttribute("message", e.getMessage());
            return "loginForm"; //映照到登錄頁面loginForm.jsp
        } catch (NullParamException e) {
            // TODO: handle exception
            e.printStackTrace();
            req.setAttribute("message", e.getMessage());
            return "redirect:login.form";//重定向
        } catch (RuntimeException e){
            e.printStackTrace();
            req.setAttribute("message", e.getMessage());
            return "error";
        }
    }

    /**
     * 使用@RequestParam注解獲得要求參數的值
     * @param name
     * @param pwd
     * @param req
     * @return
     */
    @RequestMapping("/loginAction2.form")
    public String checLogin2(
            String name,
            @RequestParam("pwd")String pwd, //映照表單屬性不同的參數
            HttpServletRequest req){
        System.out.println("--方法2--");
        //優點，自動轉換數據類型，缺點，可能出現數據類型轉換異常
        System.out.println(name);
        System.out.println(pwd);
        try {
            User user = userService.login(name, pwd);
            //登錄成功將登錄信息保存到當前會話中
            req.getSession().setAttribute("user", user);
            return "success";   //映照到success.jsp
        } catch (NameOrPwdException e) {
            // TODO: handle exception
            e.printStackTrace();
            req.setAttribute("message", e.getMessage());
            return "loginForm";
        } catch (NullParamException e) {
            // TODO: handle exception
            e.printStackTrace();
            req.setAttribute("message", e.getMessage());
            return "loginForm";
        } catch (RuntimeException e){
            e.printStackTrace();
            req.setAttribute("message", e.getMessage());
            return "error";
        }
    }

    /**
     * 使用自動機制封裝成實體參數的方式獲得要求參數的值
     * @param user
     * @param req
     * @return
     */
    @RequestMapping("/loginAction3.form")
    public String checLogin3(User user,HttpServletRequest req){
        System.out.println("--方法3--");
        //自動填充到bean對象
        System.out.println(user);
        try {
            user = userService.login(user.getName(), user.getPwd());
            //登錄成功將登錄信息保存到當前會話中
            req.getSession().setAttribute("user", user);
            return "success";   //映照到success.jsp
        } catch (NameOrPwdException e) {
            // TODO: handle exception
            e.printStackTrace();
            req.setAttribute("message", e.getMessage());
            return "loginForm";
        } catch (NullParamException e) {
            // TODO: handle exception
            e.printStackTrace();
            req.setAttribute("message", e.getMessage());
            return "loginForm";
        } catch (RuntimeException e){
            e.printStackTrace();
            req.setAttribute("message", e.getMessage());
            return "error";
        }
    }

}

登錄頁面：
loginForm.jsp

<%@ page language="java" contentType="text/html; charset=UTF⑻"
    pageEncoding="UTF⑻"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<!-- 獲得項目基本路徑 -->
<c:url var="base" value="/"></c:url>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF⑻">
<title>LoginForm</title>
<link rel="stylesheet" type="text/css" href="${base }css/style.css">
</head>
<body>
    <h6>${message }</h6>
    <%-- <h6>${next }</h6> --%>
    <form method="post" action="${base }login/loginAction1.form">
        <div>
            <h2>登錄 loginAction1.form</h2>
            <p><label>用戶</label><input type="text" name="name"></p>
            <p><label>密碼</label><input type="password" name="pwd"></p>
            <h3><input type="submit" value="登錄"></h3>
        </div>
    </form>

    <form method="post" action="${base }login/loginAction2.form">
        <div>
            <h2>登錄 loginAction2.form</h2>
            <p><label>用戶</label><input type="text" name="name"></p>
            <p><label>密碼</label><input type="password" name="pwd"></p>
            <h3><input type="submit" value="登錄"></h3>
        </div>
    </form>

    <form method="post" action="${base }login/loginAction3.form">
        <div>
            <h2>登錄 loginAction3.form</h2>
            <p><label>用戶</label><input type="text" name="name"></p>
            <p><label>密碼</label><input type="password" name="pwd"></p>
            <h3><input type="submit" value="登錄"></h3>
        </div>
    </form>

</body>
</html>

需要注意的是，這里我用到的是JSTL標簽，所以在lib里面要引入jstl.jar、standard.jar這個兩個包。
樣式文件style.css

*{
    margin:0;
    padding:0;
}
h6{
    text-align: center;
    color: red;
    padding:10px;
    font-size:14px;
}
form{
    padding:10px;
    float:left;
}
form div{
    border:1px gray solid;
    width:320px;
    padding:8px;
}
form p input{
    widht:180px;
}
form h2 input {
    text-align:center;
}
form h2{
    background: black;
    color:white;
    padding:4px;
}
form p{
    background:#ddd;
    padding:4px 8px 0 8px;
}
form h3{
    background: #ddd;
    padding:8px;
}

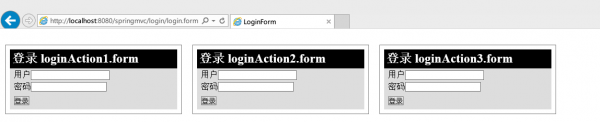

在閱讀器里輸入http://localhost:8080/springmvc/login/login.form
運行結果如圖所示：
這里寫圖片描述
添加登錄成功的頁面success.jsp

<%@ page language="java" contentType="text/html; charset=UTF⑻"
    pageEncoding="UTF⑻"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<c:url var="base" value="/"></c:url>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF⑻">
<title>success</title>
<link rel="stylesheet" type="text/css" href="${base }css/style.css">
</head>
<body>
    <center>
    <h2>${user.name }登錄成功</h2>
    </center>
</body>
</html>

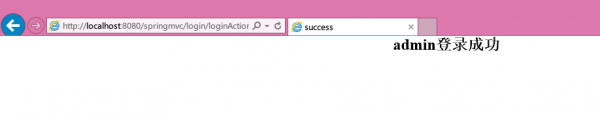

輸入用戶名和密碼admin登錄就能夠看到登錄成功的界面。
這里寫圖片描述

源碼：下載地址

生活不易，碼農辛苦
如果您覺得本網站對您的學習有所幫助,可以手機掃描二維碼進行捐贈
程序員人生

------分隔線----------------------------

上一篇 JAVA和C++比較之我見

下一篇 HDU 3065 病毒侵襲持續中 (AC自動機)

分享到:

------分隔線----------------------------

為碼而活

積分：4237

15粉絲

7關注

欄目熱點

多多色-多人伦交性欧美在线观看-多人伦精品一区二区三区视频-多色视频-免费黄色视屏网站-免费黄色在线

Spring技術入門（六）
