靜態mac vlan配置要點及實例

來源：程序員人生發布時間：2015-02-03 09:27:23 閱讀次數：3705次

基于mac地址的vlan劃分1共分為3種類型：
第1種類型：手動配置靜態mac vlan
第2種類型：動態觸發端口加入靜態mac vlan
第3種類型：動態mac vlan

本文檔講述第1種靜態mac vlan的手動配置；環境：H3C ENSP

第1步：建立vlan ：vlan 100
第2步：（vlan模式）創建該vlan中所有主機的mac地址與該vlan的靜態關聯：
mac-vlan mac-address H-H-H-H(主機mac地址)
....
第3步：（系統模式）進入所有利用于靜態mac vlan的端口
第4步：（端口模式）設置端口的鏈接類型為Hybrid類型，這樣該端口
就能夠接收和發送多個vlan的數據幀、
第5步：（接口模式）對所有靜態mac vlan數據幀進行剝離標簽：
port hybrid untagged vlan 100

第6步：（接口模式）啟動該端口的mac-vlan功能

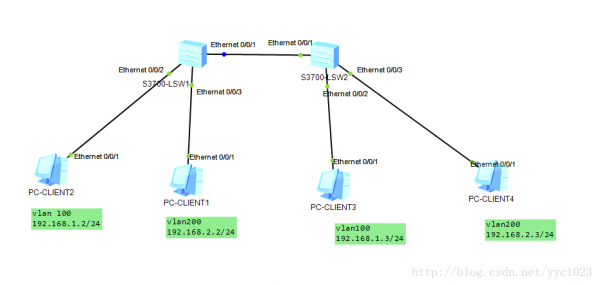

實例：

交換機1的配置：

[Huawei]display current-configuration
#
sysname Huawei
#
vlan batch 100 200
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
vlan 100
mac-vlan mac-address 5489⑼831⑴ba8 priority 0
vlan 200
mac-vlan mac-address 5489⑼8d7-0f68 priority 0
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface Ethernet0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
interface Ethernet0/0/2
port hybrid untagged vlan 2 to 4094
mac-vlan enable
#
interface Ethernet0/0/3
port hybrid untagged vlan 2 to 4094
mac-vlan enable
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return

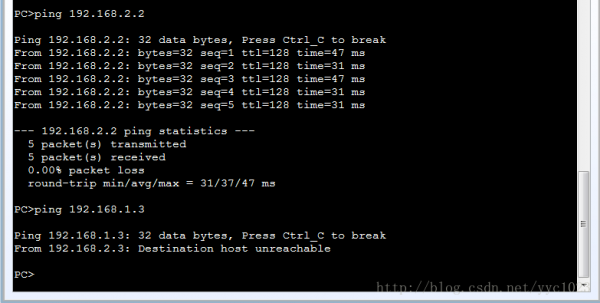

交換機2的配置：

[Huawei]display current-configuration
#
sysname Huawei
#
vlan batch 100 200
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
vlan 100
mac-vlan mac-address 5489⑼8b0⑺531 priority 0
vlan 200
mac-vlan mac-address 5489⑼82b⑵5f1 priority 0
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface Ethernet0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
interface Ethernet0/0/2
port hybrid untagged vlan 2 to 4094
mac-vlan enable
#
interface Ethernet0/0/3
port hybrid untagged vlan 2 to 4094
mac-vlan enable
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return
